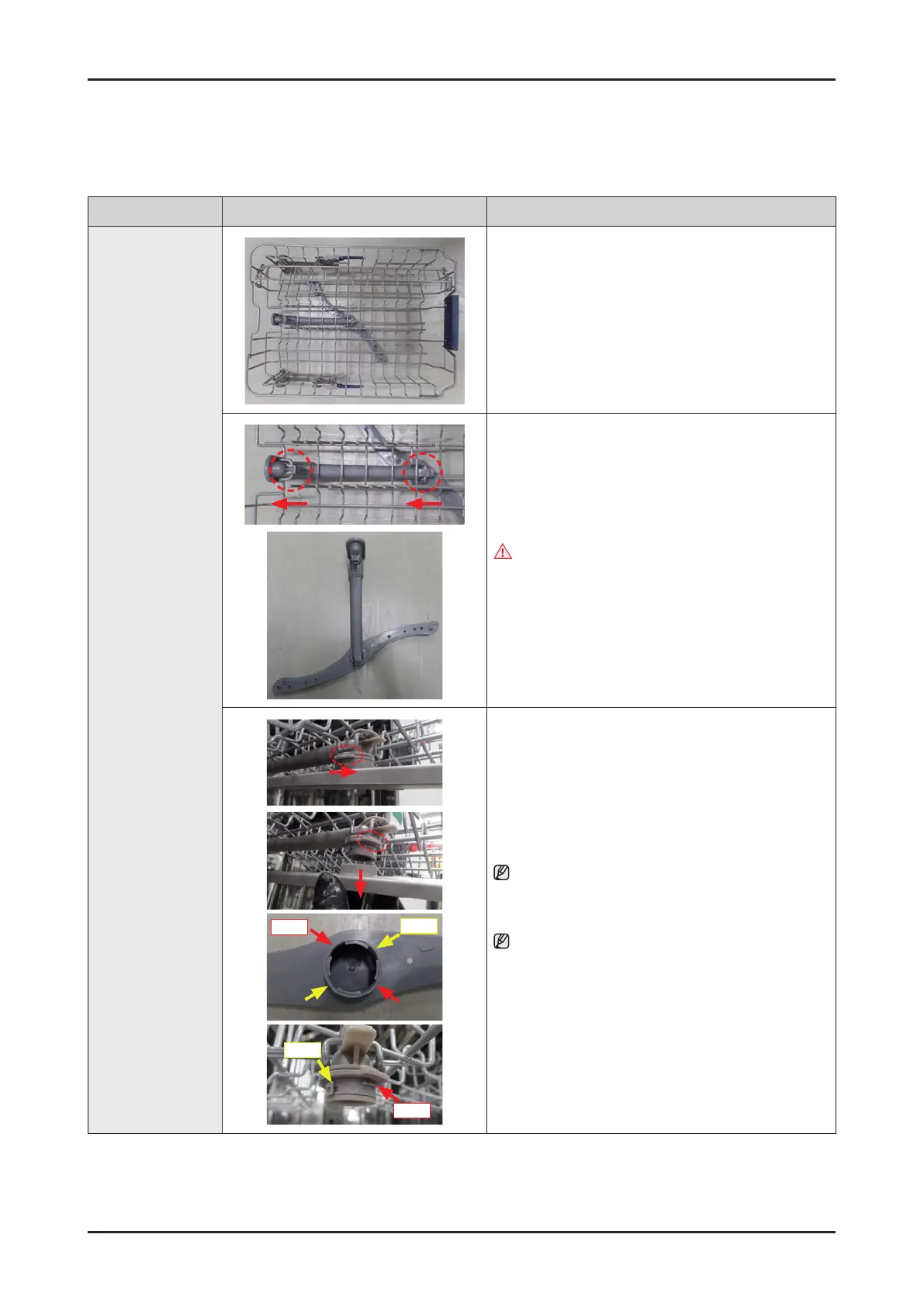

20 _ Standard Disassembly Drawings
2-7. ASSY ROTOR MIDDLE
- Assy Rotor Middle : DD82-01715A / SVC ASSY-ROTOR MIDDLE
Part Figure Description
ASSY ROTOR
MIDDLE
[DISASSEMBLY]
1. Open the dishwasher’s DOOR, and take off the BASKET
MIDDLE.
2. Release 2 hooks to take off ASSY ROTOR MIDDLE from
the BASKET MIDDLE.
Caution
Be careful not to break the hooks.
[ASSEMBLY]
1. Reassembly is the reverse order of disassembly.
long
short
long
short
NOTE :
To disassemble the ROTOR MIDDLE only, loosen the
HOLDER ROTOR MIDDLE to counter-clockwise direction.
NOTE :
Make sure to t the hook to the correct location of ROTOR
MIDDLE.
