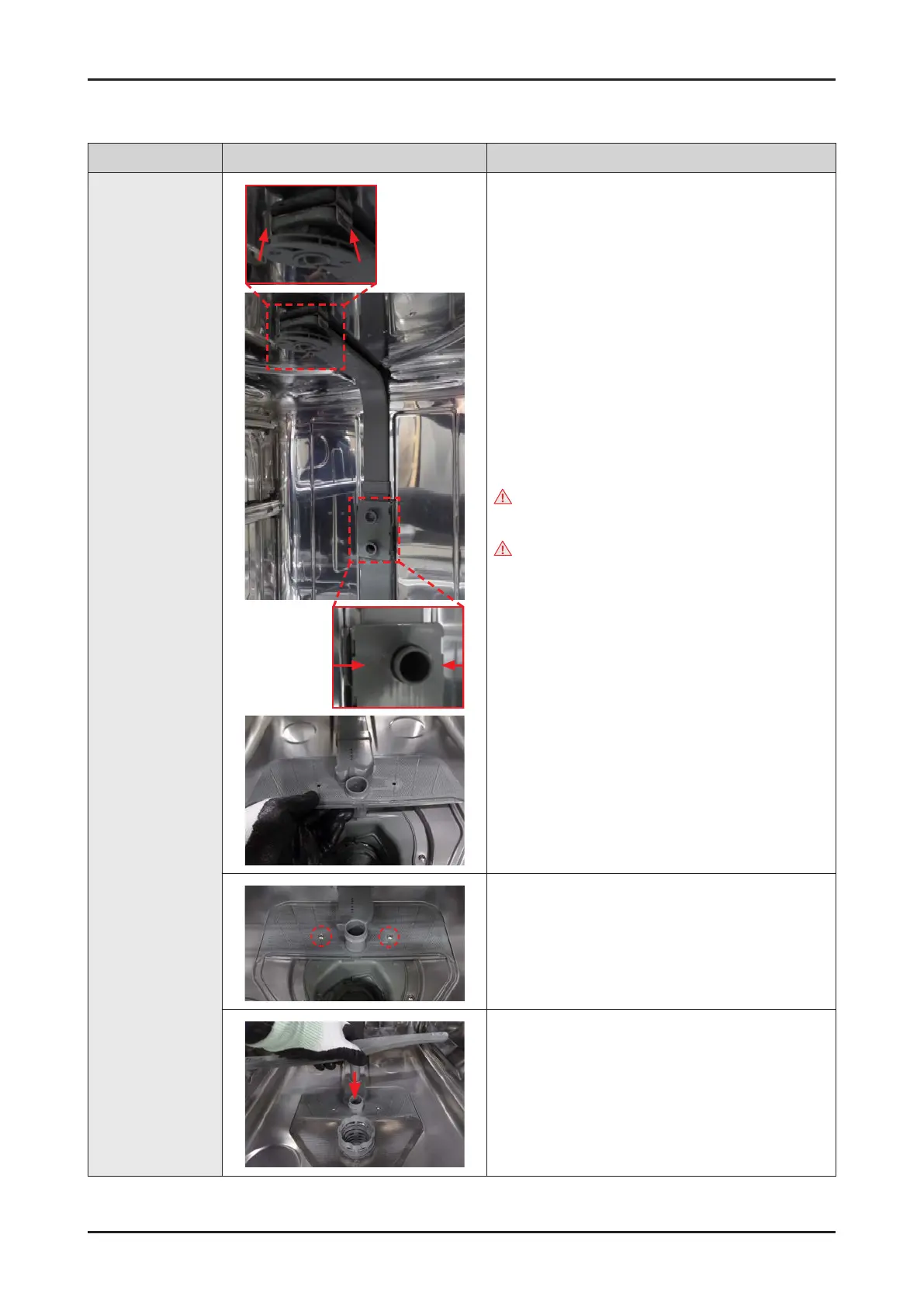

Standard Disassembly Drawings _ 19
Part Figure Description
ROTOR LOWER /
ASSY DUCT NOZZLE
2. Assemble the ASSY DUCT NOZZLE to hooks and on the
HOLDER ROTOR LOWER.
Warning
Do not this work without safety gloves. It can cause
injury from sharp edge.
Caution
Make sure to reassemble to correct location.
There’re risks of leakage or poor performance when it’s
misassembled.
3. Fasten 2 screws to t the ASSY DUCT NOZZLE.
- Screws: DD81-02718A / 2 pcs
4. Put the ROTOR LOWER onto the HOLDER ROTOR LOWER.
