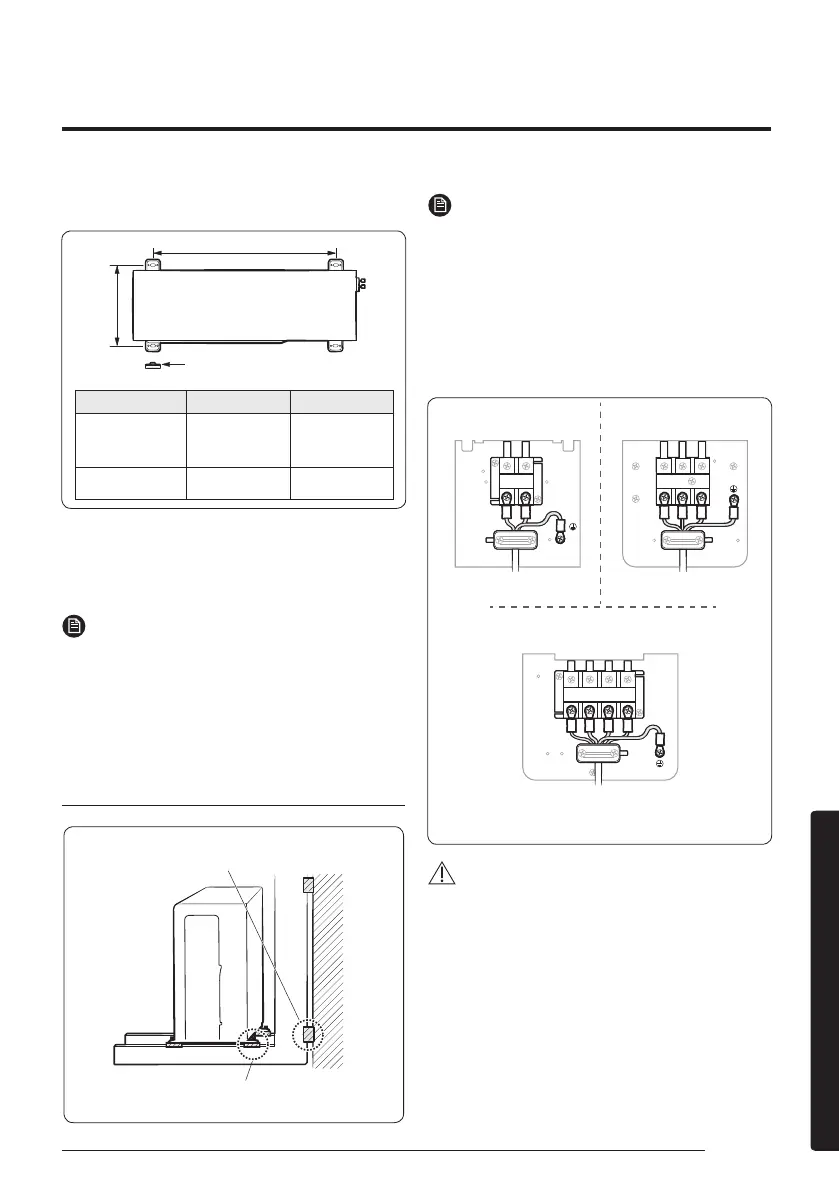

45English
Installation
Outdoor Unit Installation
(Unit : mm)
Model X Y
✴✴18✴✴
✴✴24KR/MR✴✴
660 340
✴✴24KQ✴✴ 645 340
✴✴18KR/MR✴✴
✴✴18KQ/MQ✴✴
✴✴24✴✴
Step 3.1 Fixing the outdoor unit in place
X
Y
Rubber leg
1 Place the outdoor unit as directed on the top of
the unit to let the discharged air out properly.
2 Fix the outdoor unit in level to an appropriate
support using anchor bolts.
NOTE
• Secure the rubber legs to help prevent the
generation of noise and vibration.
• If the outdoor unit is exposed to strong winds,
install shield plates around the outdoor unit so
that the fan can operate correctly.
Optional: Fixing the outdoor unit to a wall with a
rack
Soft rubber designed to cut off vibration from
rack to wall (not supplied with product)
Soft rubber designed to cut off residual vibration from
outdoor unit to rack (not supplied with product)
NOTE
• Make sure that the wall can support the weights
of the rack and the outdoor unit.
• Install the rack close to the column as much as
possible.
Step 3.2 Connecting the cables and the
refrigerant pipes
N(1)
1 2
N(1)
1
N(1)
1 2
3
CAUTION
• Be sure to fix the power cables and
communication cable with a cable clamp.
