44 English
Installation
When fixing the indoor unit on a gypsum board
1 Use stud finder to find out locations of the studs.
2 Fix the plate hanger on two studs.
CAUTION
• If you fix the indoor unit on a gypsum board,
use only specified anchor bolts on reference
positions. Otherwise, the gypsum surrounding
the joints may crumble over time and cause the
screws to be loosened and stripped. This may
lead to physical injury or equipment damage.
• Search for other spots if there are less than two
studs, or the distance between the studs are
different from the plate hanger.
• Fix the installation plate without inclining to one
side.

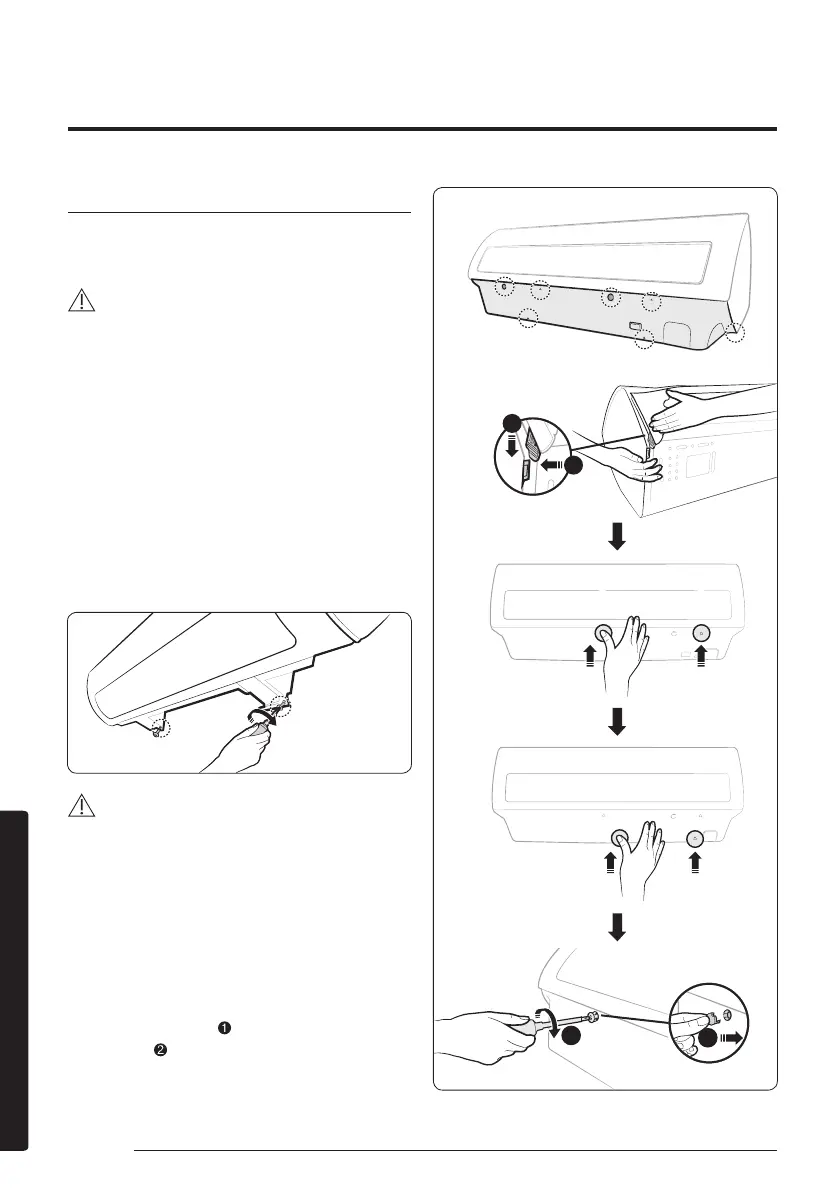

Step 2.11 Fixing the indoor unit to the
installation plate
CAUTION
• Make sure that the pipe bundle does not move
when you install the indoor unit onto the
installation plate.
Step 2.12 Assembling the cover panel
1 Lock the side hooks (D), then centre hooks (B).
Then lock the bottom hooks (C) to engage the
cover panel in place.
2 Fasten the screw (A- ), then assemble the cap
screws (A- ).
B B
C
C
A
A
A
B
B
C
C
D
D
1
2
A
2
1
