48 English
Installation

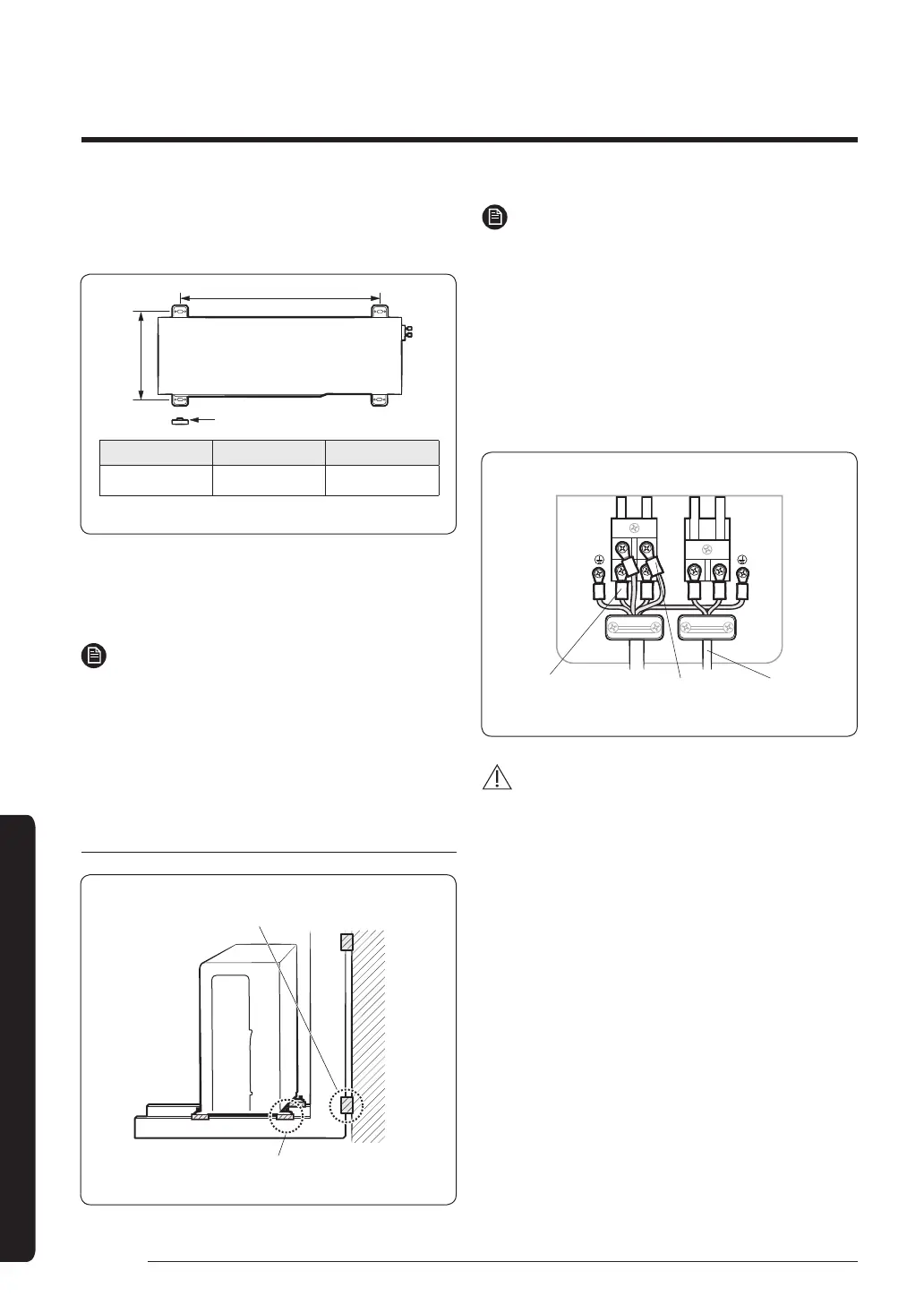

Step 3.1 Fixing the outdoor unit in
place
X
Y
Rubber leg
1 Place the outdoor unit as directed on the top of the
unit to let the discharged air out properly.
2 Fix the outdoor unit in level to an appropriate support
using anchor bolts.
NOTE
• Secure the rubber legs to help prevent the generation
of noise and vibration.
• If the outdoor unit is exposed to strong winds, install
shield plates around the outdoor unit so that the fan
can operate correctly.
Optional: Fixing the outdoor unit to a wall with
a rack
Soft rubber designed to cut off vibration from
rack to wall (not supplied with product)
Soft rubber designed to cut off residual vibration from
outdoor unit to rack (not supplied with product)
NOTE
• Make sure that the wall can support the weights of
the rack and the outdoor unit.
• Install the rack close to the column as much as
possible.
Step 3.2 Connecting the power
and communication cables and the
refrigerant pipes
F1 F2
L N
Communication cable
(two wires)
Outdoor-to-indoor power cable
(three wires)
Power cable
(three wires)
CAUTION
• Be sure to fix the power cables and communication
cable with a cable clamp.
Outdoor Unit Installation
(Unit : mm)
Model X Y
✴✴18/24✴✴ 660 340
