When fixing the indoor unit on a gypsum board
1 Use stud finder to find out locations of the studs.
2 Fix the plate hanger on two studs.
CAUTION
• If you fix the indoor unit on a gypsum board, use
only specified anchor bolts on reference positions.
Otherwise, the gypsum surrounding the joints may
crumble over time and cause the screws to be
loosened and stripped. This may lead to physical
injury or equipment damage.
• Search for other spots if there are less than two studs,
or the distance between the studs are different from
the plate hanger.
• Fix the installation plate without inclining to one side.
Step 2.11 Fixing the indoor unit to
the installation plate
CAUTION
• Make sure that the pipe bundle does not move when
you install the indoor unit onto the installation plate.
Step 2.12 Assembling the cover
panel

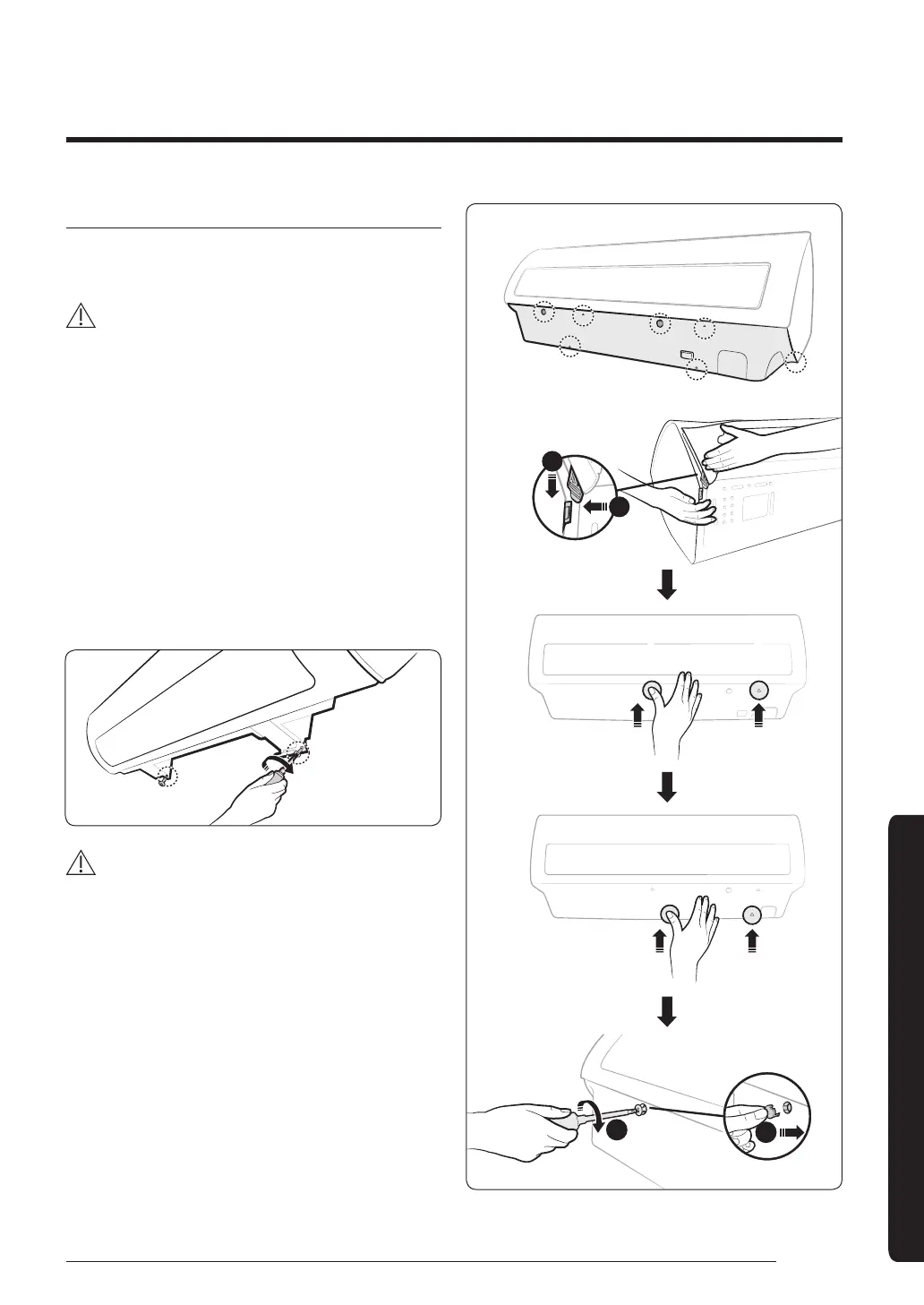

1 Lock the side hooks (D), then centre hooks (B). Then
lock the bottom hooks (C) to engage the cover panel
in place.
2 Fasten the screw (A-1), then assemble the cap screws
(A-2).
