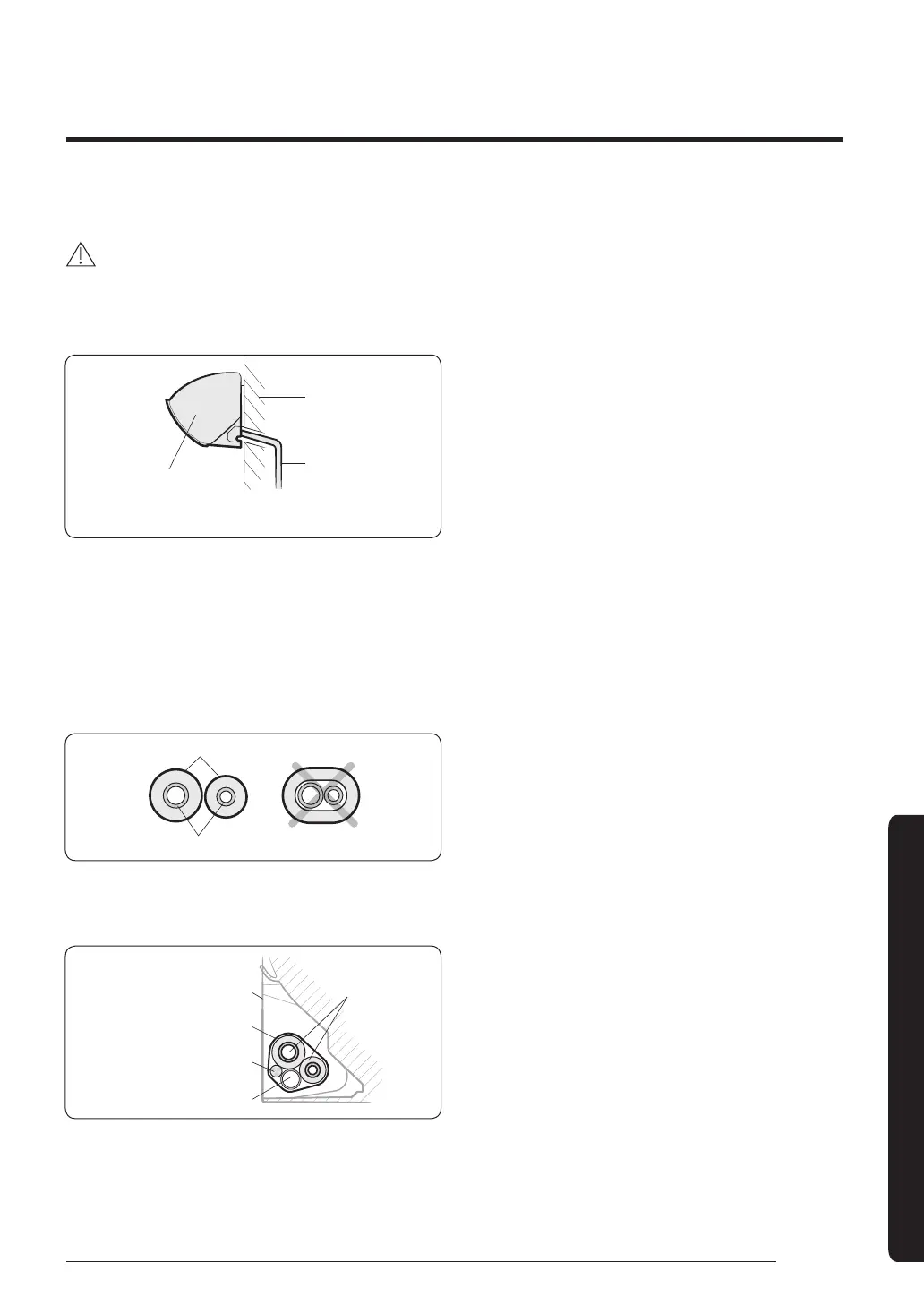

39English
Installation
2 Drill the hole.
CAUTION
• Be sure to drill only one hole.
• Make sure that the hole slants downwards so that the
drain hose slants downwards to drain water well.
Wall
Drain hose
Indoor unit
<The hole slants downwards>
Step 1.5 Taping the pipes, cables, and
drain hose
1 Wrap foam insulation on parts without insulation
on the ends of the refrigerant pipes, as shown in
the figure. This wrapping minimises condensation
problem.
Insulation
Refrigerant pipes
2 Wind the refrigerant pipes, power cable,
communication cable and drain hose with vinyl tape
to make a pipe bundle.
Refrigerant pipes
(assembly pipe)
Installation plate
Vinyl tape
Drain hose
Power and communication cables
(assembly cable)
