38 English
Installation
NOTE
• A flare nut is attached to the end of each pipe of an
evaporator or a service port. Use flare nuts when
connecting the pipes.
• Wire assembly cables are optional. If they are not
supplied, use standard cables.
• The drain plug and the rubber legs are included
only when the air conditioner is supplied without
assembly pipes.
• If these accessories are supplied, they are in the
accessory package or outdoor unit package.
Tools
General tools
• Vacuum pump
(Backward flowing prevention)
• Manifold gauge
• Stud finder
• Torque wrench
• Pipe cutter
• Reamer
• Pipe bender
• Spirit level
• Screwdriver
• Spanner
• Drill
• L-wrench
• Measuring tape
Tools for test operation
• Thermometer
• Resistance meter
• Electroscope
Step 1.4 Drilling a hole through the
wall
Before fixing the installation plate to a wall and then
fixing the indoor unit to the installation plate, a window
frame, or a gypsum board, you must determine the
position of a hole (with 65 mm inner diameter) through
which the pipe bundle (consisting of power and
communication cables, refrigerant pipes, and drain hose)
will pass and then drill that hole.

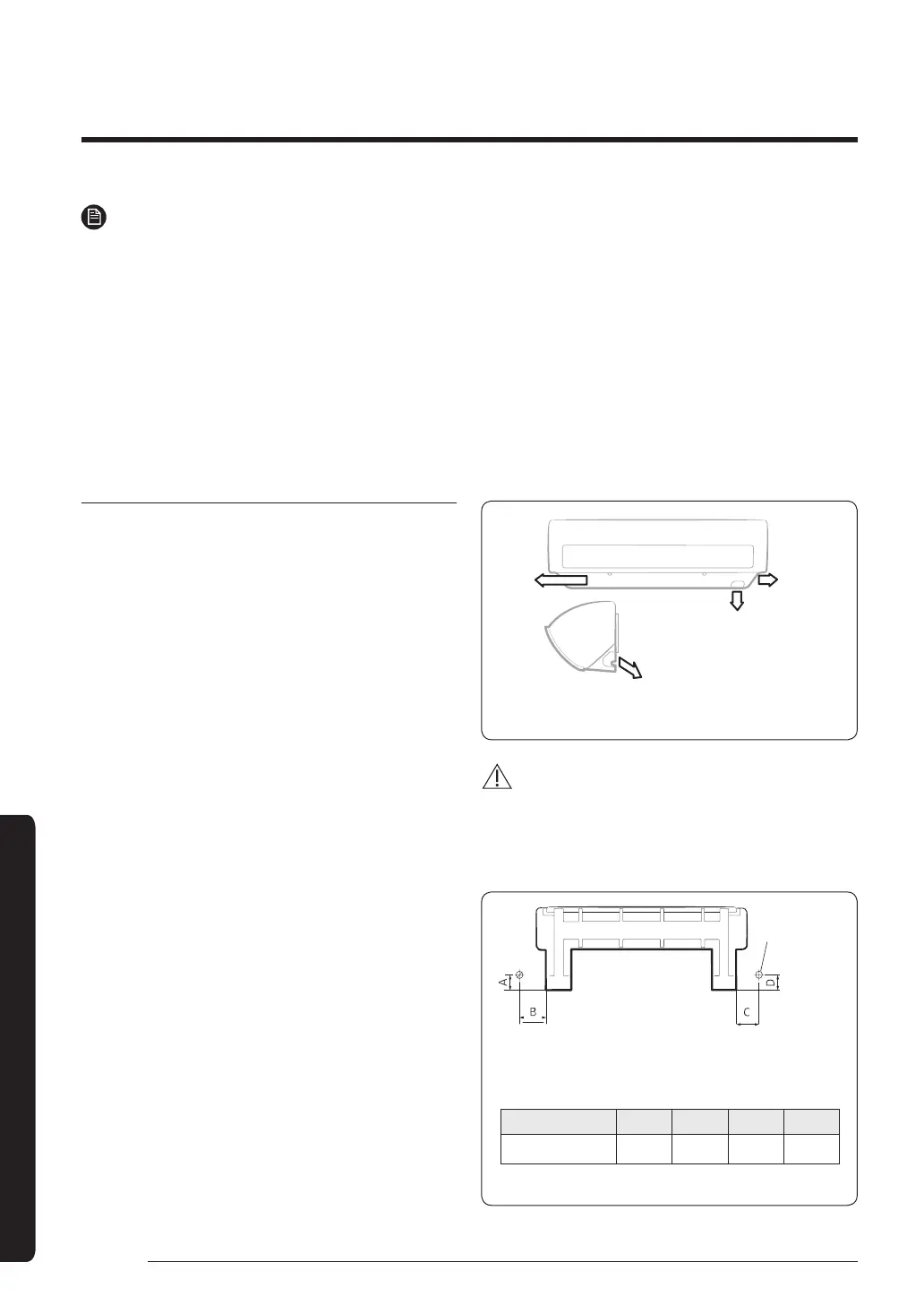

1 Determine the position of a 65 mm hole in
consideration of the possible directions of the pipe
bundle and the minimum distances between the hole
and the installation plate.
RightLeft
Rear right or left
<Possible directions of the pipe bundle>
Bottom right
CAUTION
• If changing the pipe direction from left to right,
do not drastically bent it but slowly turn it in the
opposite direction as shown. Otherwise, the pipe may
be damaged in the process.
<Minimum distances between the hole and the
installation plate>
Pipe bundle hole
(Unit : mm)
Model A B C D
✴✴18/24✴✴ 33 110 110 33
Pipe bundle hole: Ø 65 mm
