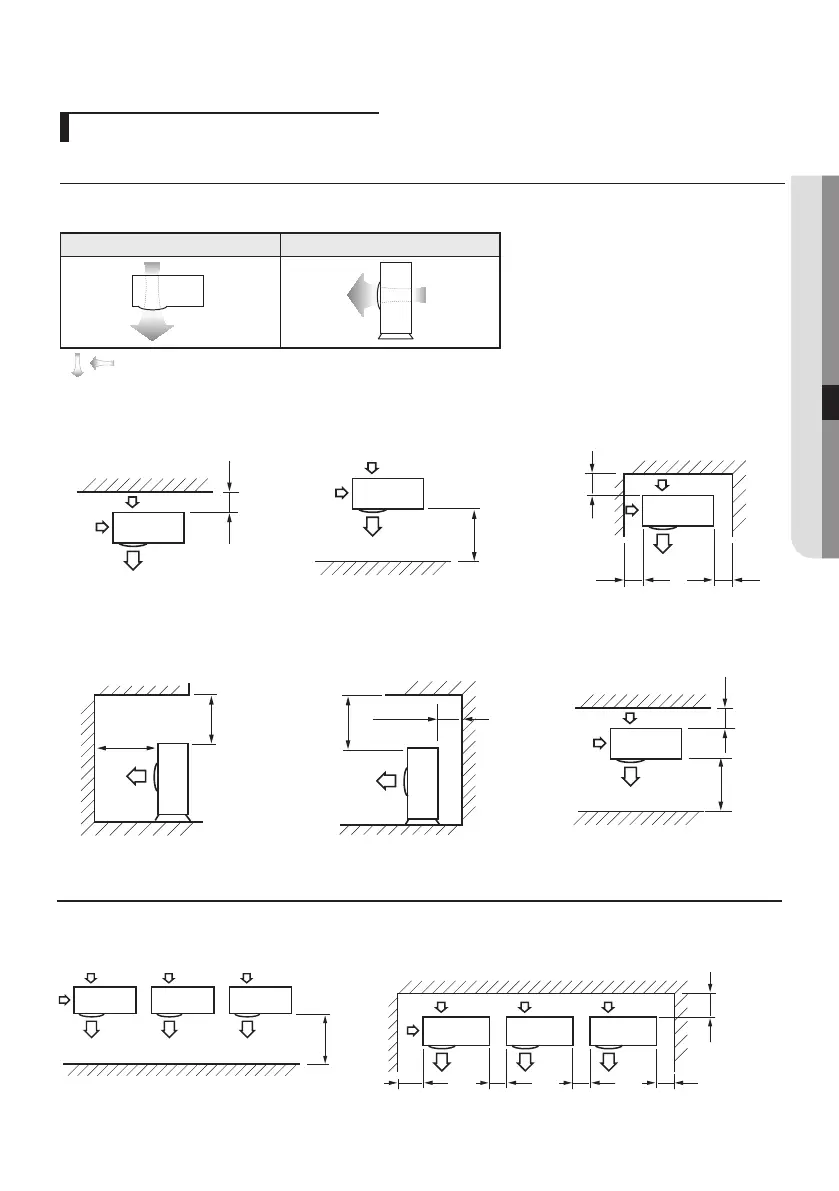

Space Requirements for Outdoor Unit
When installing 1 outdoor unit
Top view Side view
Air outlet Air intake
Air intake
Air outlet
Figure Description
, Air flow direction.
When installing more than 1 outdoor unit
11.8 or more
When the air outlet is opposite the
wall
59.1 or more
When the air outlet is towards the
wall
11.8 or more
5.9 or more 23.6 or more
When 3 sides of the outdoor unit are
blocked by the wall
59.1 or more
78.7 or more
The upper part of the outdoor unit
and the air outlet is towards the wall
19.7 or more
11.8 or more
The upper part of the outdoor unit
and the air outlet is opposite the
wall
When the walls are blocking front
and the rear side of the outdoor unit
11.8 or
more
59.1 or
more
(Unit : inch)
(Unit : inch)
59.1 or more
When the air outlet is towards the wall When 3 sides of the outdoor unit are blocked by the wall
11.8 or more
11.8 or more 23.6 or more 23.6 or more 23.6 or more
English-37
