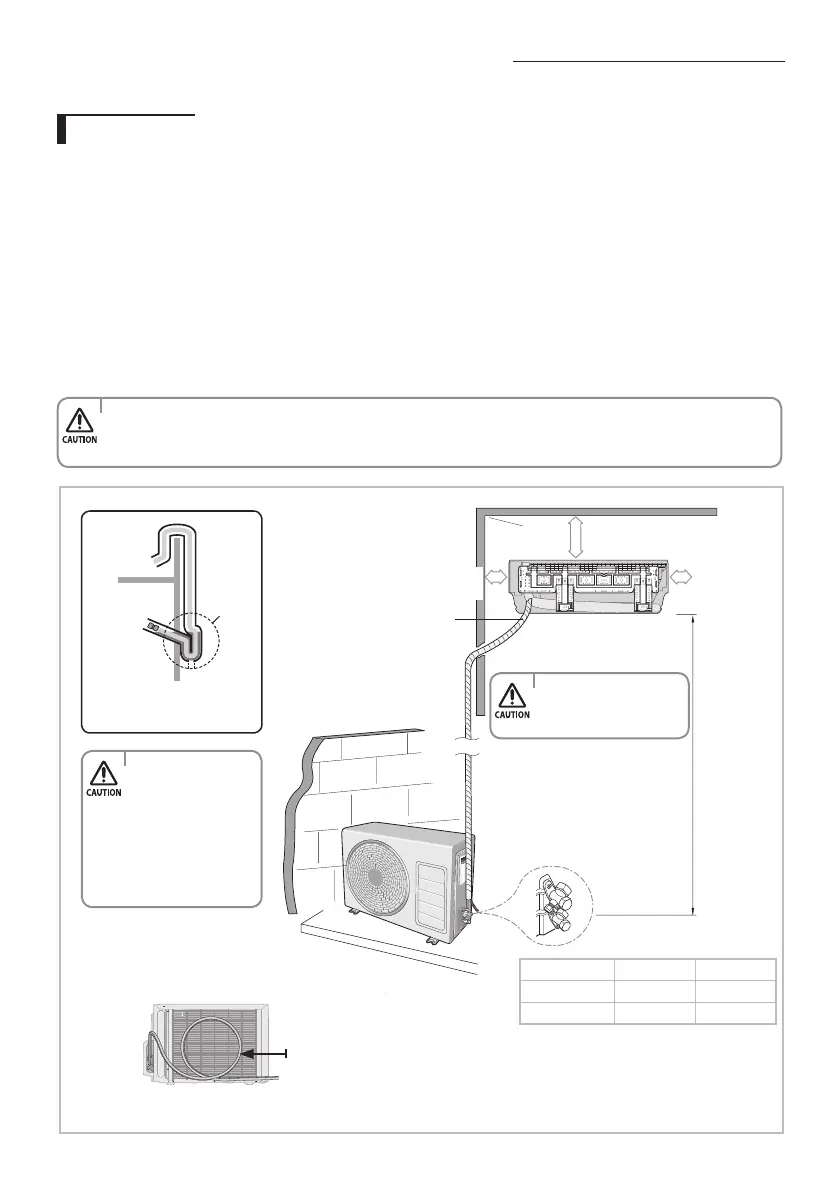

Outdoor Unit
• Avoidthefollowingplacestopreventmalfunctionoftheunit
- Where there is machine oil - Salty environment such as seaside areas
- Where sulde gas exists - Other special atmosphere areas
4.9inch(125mm)
or more
3.9inch(100mm) or more
4.9inch(125mm)
or more
'L'metersmaximumtotalpipe
length
Wrap the refrigerant
pipes and the
drain hose with the
absorbent pad and
vinyl tape. Refer to page
54 for further details.
You can select the direction of
draining (left or right).
'H'meters
maximum
total pipe
height
The appearance of the unit may be dierent from the diagram depending on the model.
One round loop will help reduce noise and vibration.
'L'masmaximumpipelength
and 9.84ft(3m) as minimum pipe
length. (It will reduce noise and
vibration)
Model L H
09/12
49.2ft(15m) 26.24ft(8m)
18/24
98.4ft(30m) 49.2ft(15m)
Where it is not exposed to strong wind
Well ventilated and dustless places
Where possible keep out of sunlight and rain
f
Where neighbors are not annoyed by operation sound or hot air
Solid wall or support that prevents vibration and is strong enough to hold the product weight
Where there is no risk of ammable gas leakage
When installing the unit at a high elevation be sure to x the unit legs
10'(3m) or more away from the TV or radio (to prevent the screen from being distorted or noise from being generated)
Install the unit horizontally
Place where drained water does not become any problem.
Place with no plants (especially climbing plants) and where small animal can not access.
Outdoorunitshouldnotbeplacehigherthan8'(2.4m) or directly under eaves for accessibility for service and OH&S reasons.
Choosing the installation location
Outdoor
Unit
Indoor
Unit
Outer wall
Cut insulation to
have rainwater
drained
Make an U-trap(A) on the
pipe (which is connected
to the indoor unit) at outer
wall and cut the bottom
part of the insulation (about
10mm) to prevent rainwater
from getting inside through
the insulation. However,
be careful not to damage
the pipe.
A
English-36
