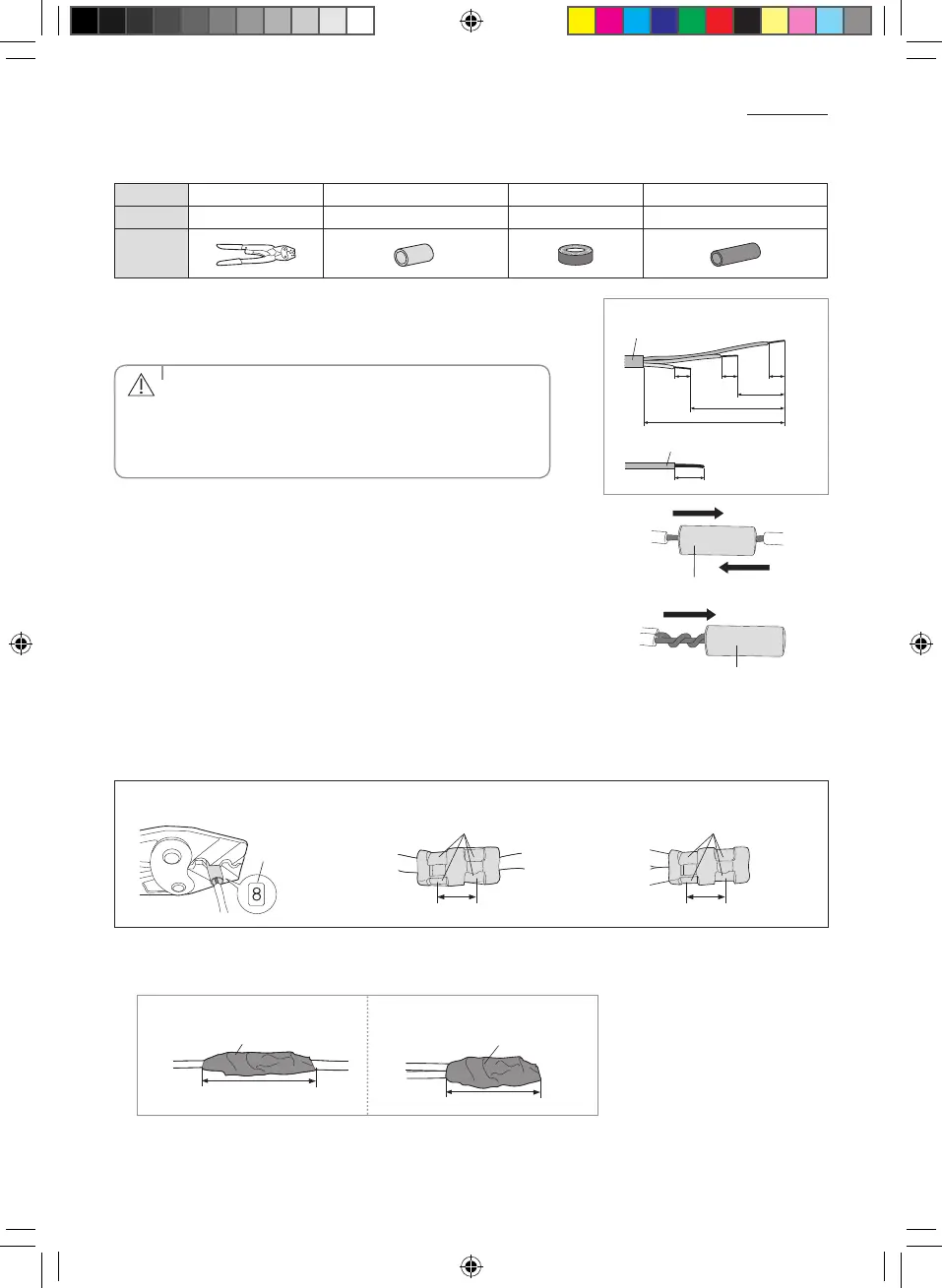

How to connect your extended power cables
1. Prepare the following tools.
Tools Crimping pliers
Connection sleeve (mm)
Insulation tape
Contraction tube (mm)
Spec MH-14 20 x Ø 6.5 (HxOD) Width 19mm 70 x Ø 8.0 (LxOD)
Shape
2. As shown in the figure, peel off the shields from the rubber and wire of
the power cable.
- Peel off 20 mm of cable shields from the pre-installed tube.
• For information about the power cable specifications
for indoor and outdoor units, refer to the installation
manual.
• After peeling off cable wires from the pre-installed tube,
insert a contraction tube.
CAUTION
(Unit: mm)
120
60
202020
180
Power cable
20
Pre-installed tube for the power cable
3. Insert both sides of core wire of the power cable into the connection
sleeve.
Method 1
Push the core wire into the sleeve from both sides.
Connection sleeve
Method 2
Twist the wire cores together and push it into the sleeve.
Connection sleeve
4. Using a crimping tool, compress the two points and flip it over and compress another two points in the same location.
- The compression dimension should be 8.0.
- After compressing it, pull both sides of the wire to make sure it is firmly pressed.
Compression
dimension
Method 1
Compress it 4 times.
5 mm
Method 2
Compress it 4 times.
5 mm
5. Wrap it with the insulation tape twice or more and position your contraction tube in the middle of the insulation tape.
Three or more layers of insulation are required.
Method 1
40 mm
Insulation tape
Method 2
Insulation tape
35 mm
