INSTALLATION
05

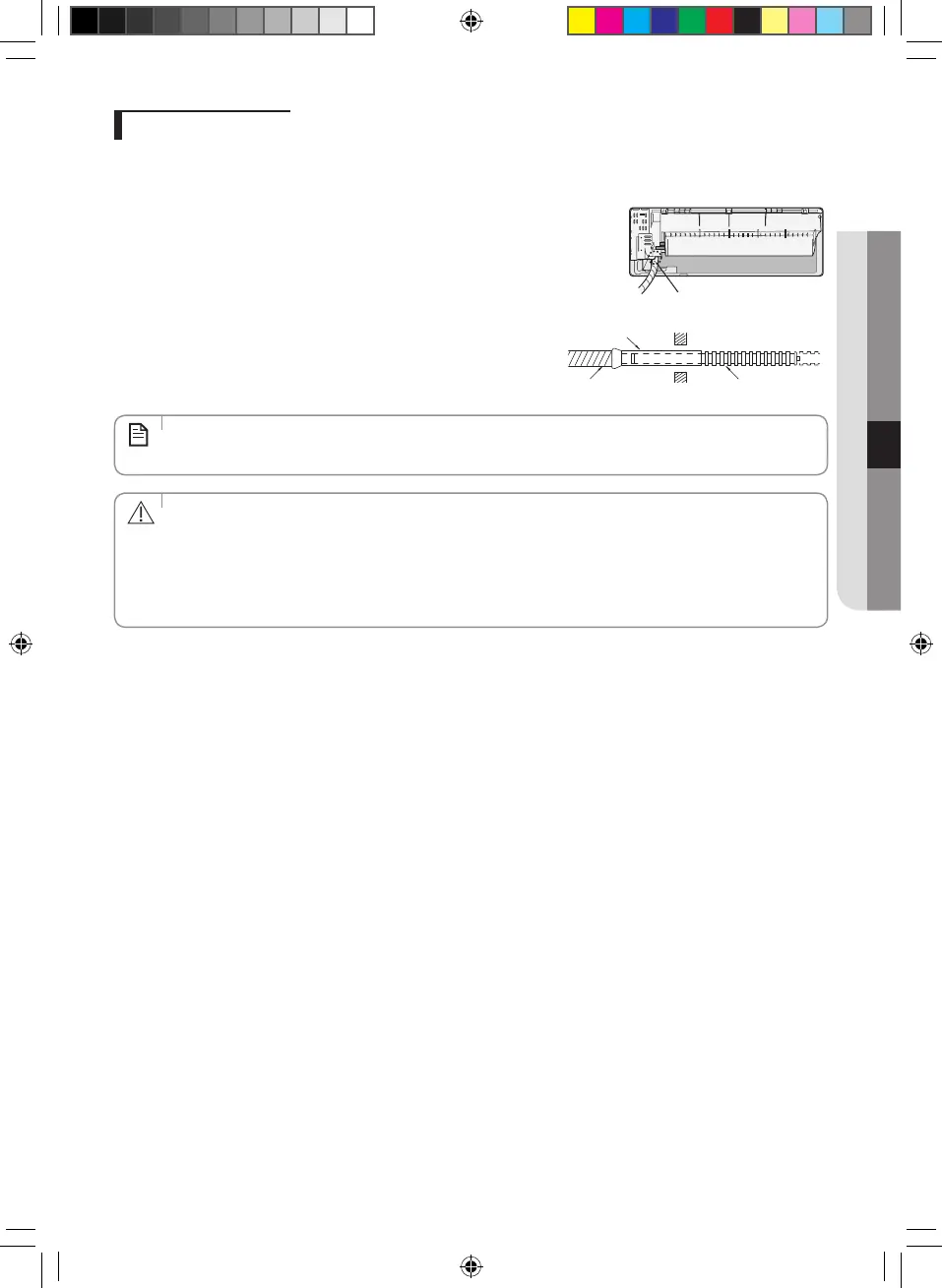

Drain hose installation
1. If necessary, connect the 2-meter extension drain hose to the drain hose.
2. If you use the extension drain hose, insulate the inside of the extension drain hose with a shield.
3. Fit the drain hose into drain hose hole, then fix the end of the
drain hose tightly with a clamp.
4. Pass the drain hose under the refrigerant pipe, keeping the
drain hose tight.
5. Pass the drain hose through the hole in the wall. Check if it
slants downwards as seen in the picture.
Shield
Drain hose hole
Drain hose Extension drain hose
• The hose will be fixed permanently into position after finishing the installation and the gas leak test;
refer to page 44 for further details.
NOTE
• Make sure the installed direction of the drain hose is correct.
Inadequate installation may cause condensate water leakage.
• If the drain hose is routed inside the room, insulate the hose so that dripping condensation does not
damage the furniture or floors.
• DO NOT WALL UP THE DRAIN HOSE CONNECTION !
Drain hose connection must be easy accessible and serviceable.
CAUTION
