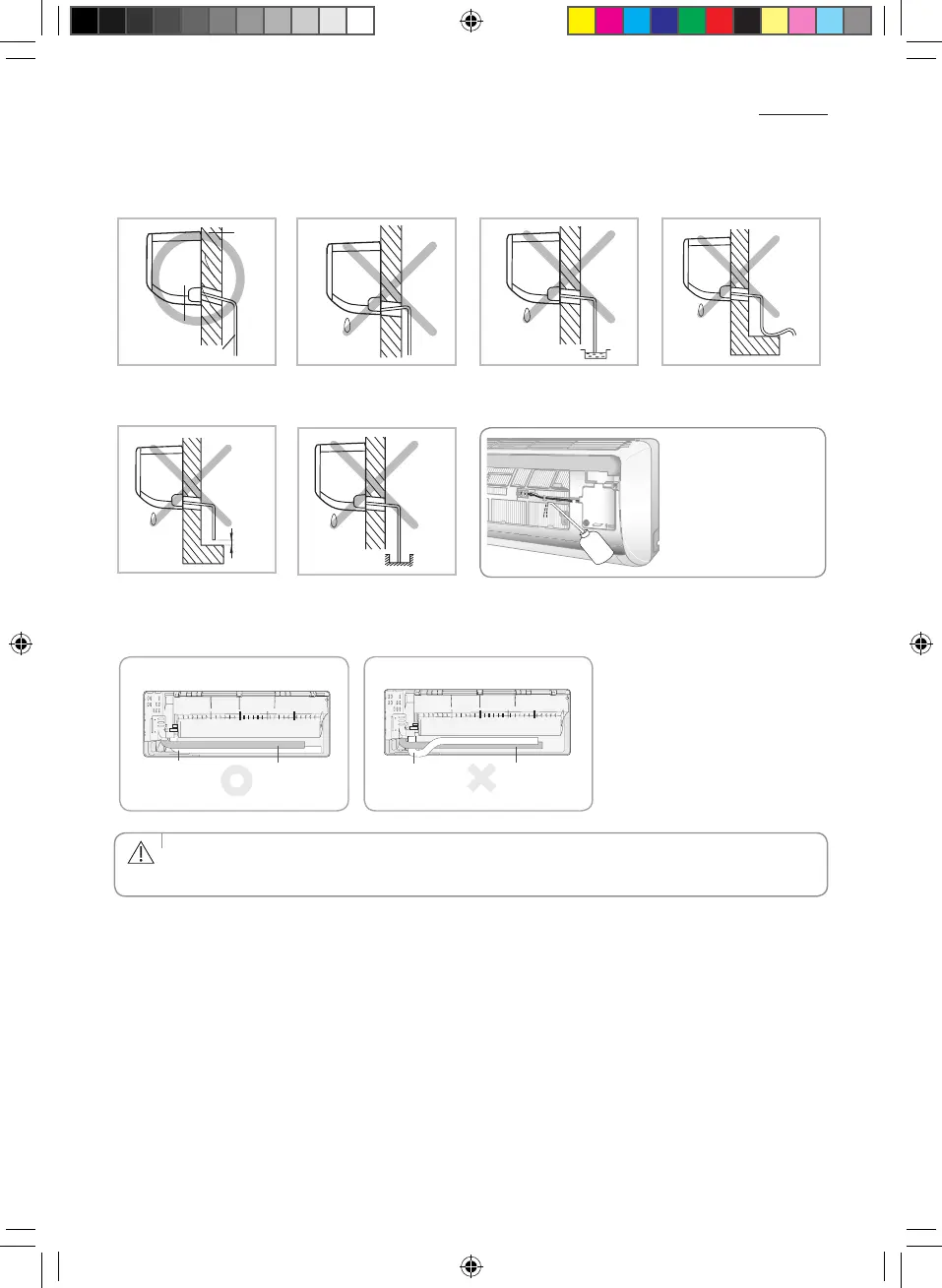

Installing and connecting the drain hose of the indoor unit
When installing the drain hose for the indoor unit, check if condensation draining is adequate.
When passing the drain hose through the 65 mm hole drilled in the wall, check the followings:
Indoor unit
Drain hose
Wall
5cm
less
Dit
ch
After completing the
installation of the drain hose,
pour water into the drain pan
to check whether the hose is
well drained.
The drain hose must NOT slant
upwards.
Keep a clearance of at least
5 cm between the end of the
dr
ain hose and the ground.
1) Correct connection
Drain hose Drain hosePipe Pipe
2) Incorrect connection
Do not place the end of the
drain hose in a hollow.
The end of the drain hose must
NOT be placed under water.
The drain hose must not be
bent.
• Don’t tie drain hose to the assembly pipe which may lead to water leakage.
CAUTION
