32 English
Installation
WARNING
• In case of extending the electric wire, please DO
NOT use a round-shaped
pressing socket.
Incomplete wire
connections can
cause electric shock
or a fire.

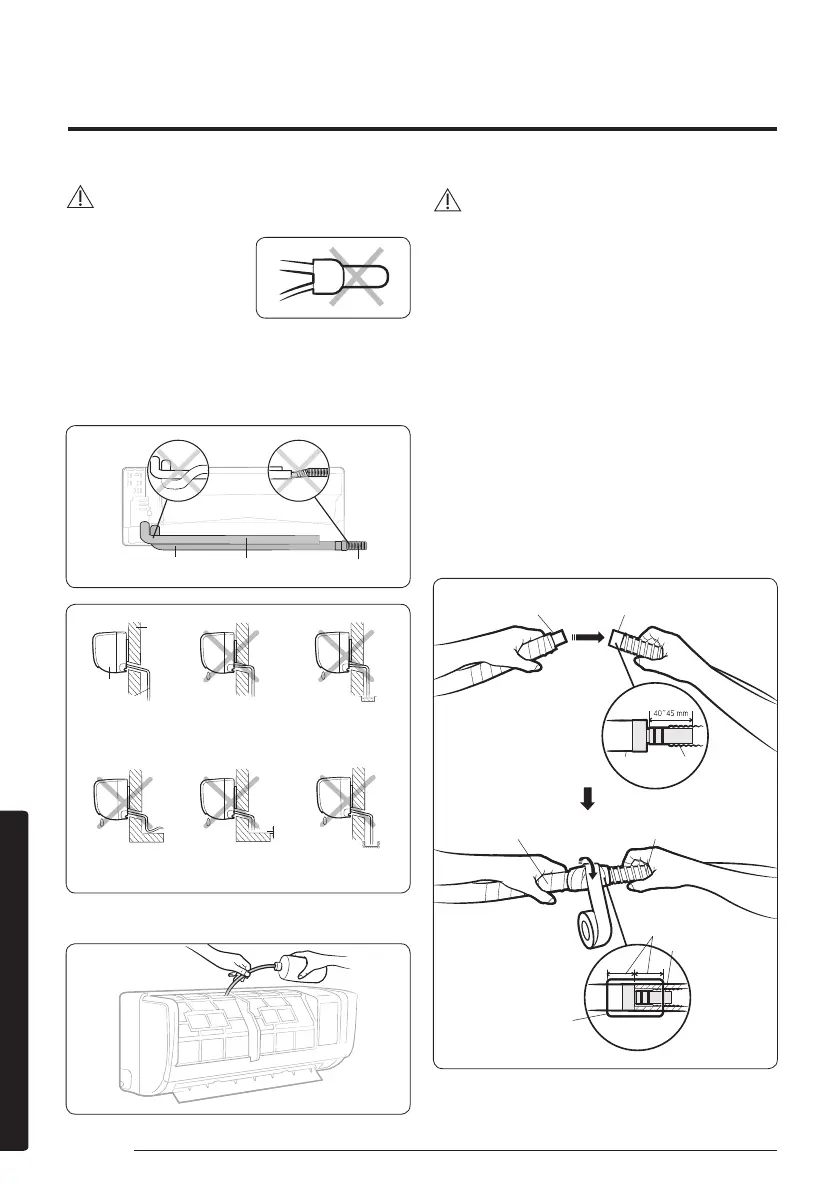

Step 2.3 Installing and connecting the
drain hose
1 Install the drain hose.
Drain hose
Assembly pipe
Connection hose
Ditch
Water
Slant downwards Slant upwards Dipped in water
Bent Too small
clearance
Too small
clearance
Wall
Indoor unit
Drain hose
5 cm
less
2 Pour water into the drain pan. Check whether the
hose is well drained.
CAUTION
• Make sure that the indoor unit is in upright
position when you pour water to check for leakage.
Make sure that the water does not overflow onto
the electrical part.
• If the diameter of the connection hose is smaller
than the product's drain hose, water leakage may
occur.
• Inadequate installation may cause water leakage.
• If the drain hose is routed inside the room,
insulate the hose so that dripping condensation
does not damage the furniture or floors.
• Do not box in or cover the drain hose connection.
Drain hose connection must be easily accessible
and serviceable.
Step 2.4 Optional: Extending the drain
hose
(A) (B)
Drain hose (A) Extension drain hose (B)
Drain hose Extension drain hose
20 mm or more
Foam insulation
Vinyl tape
