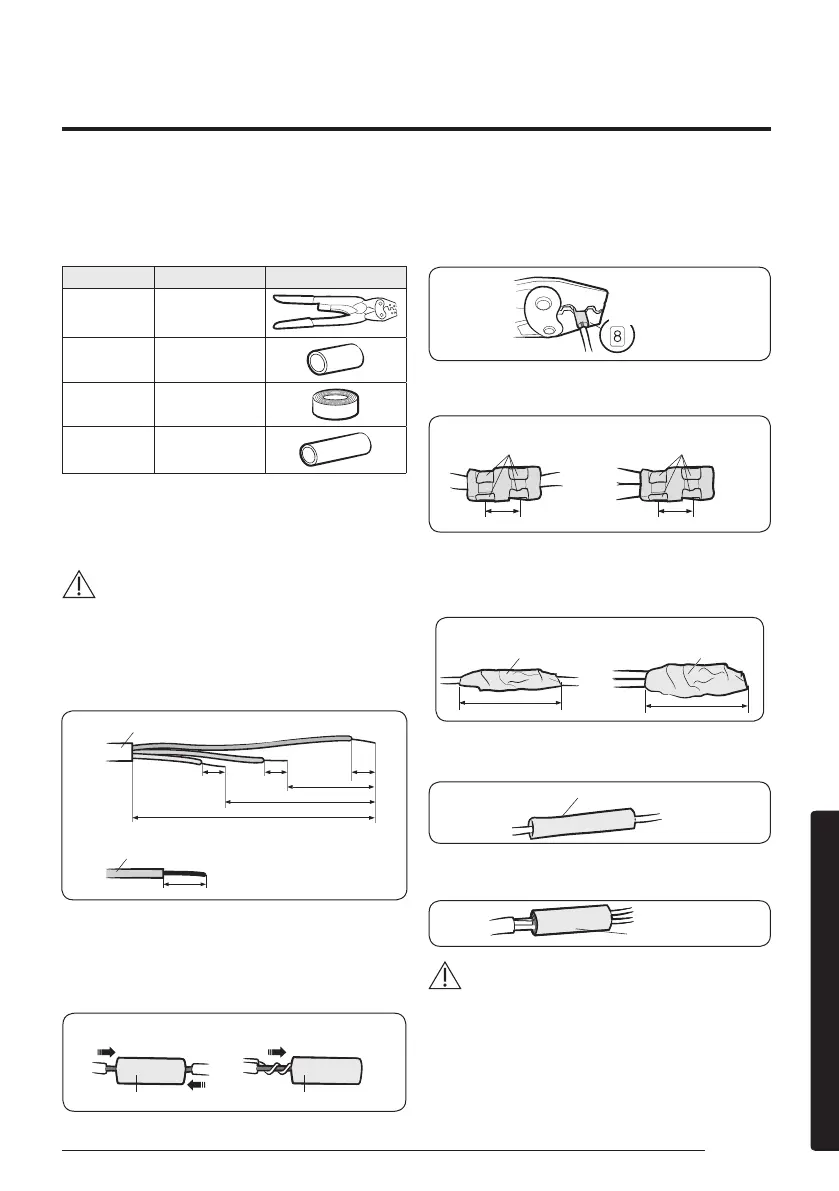

Installation
Step 2.2 Optional: Extending the power
cable
1 Prepare the following tools.
Tools Spec Shape
Crimping
pliers
MH-14
Connection
sleeve (mm)
20xØ6.5
(HxOD)
Insulation
tape
Width 19 mm
Contraction
tube (mm)
70xØ8.0 (LxOD)
2 As shown in the figure, peel off the shields from
the rubber and wire of the power cable.
• Peel off 20 mm of cable shields from the
pre-installed tube.
CAUTION
• For information about the power cable
specifications for indoor and outdoor units,
refer to the installation manual.
• After peeling off cable wires from the pre-
installed tube. Insert a contraction tube.
Power cable
Wire tube power cable
(Unit: mm)
(Unit: mm)
20 20
20
20
60
120
180
3 Insert both sides of core wire of the power cable
into the connection sleeve.
• Method 1: Push the core wire into the sleeve
from both sides.
• Method 2: Twist the wire cores together and
push it into the sleeve.
Connection sleeve Connection sleeve
Method 1 Method 2
4 Using a crimping tool, compress the two points
and flip it over and compress another two points
in the same location.
• The compression dimension should be 8.0.
Compression
dimension
• After compressing it, pull both sides of the
wire to make sure it is firmly pressed.
Compress it 4 times.
5 mm
Compress it 4 times.
5 mm
Method 1 Method 2
5 Wrap it with the insulation tape twice or more
and position your contraction tube in the middle
of the insulation tape.
Three or more layers of insulation are required.
Method 1 Method 2
Insulation tape
40 mm
35 mm
Insulation tape
6 Apply heat to the contraction tube to contract it.
Contraction tube
7 After tube contraction work is completed, wrap
it with the insulation tape to finish.
Insulation tape
CAUTION
• Make sure that the connection parts are not
exposed to outside.
• Be sure to use insulation tape and a contraction
tube made of approved reinforced insulating
materials that have the same level of withstand
voltage with the power cable. (Comply with the
local regulations on extensions.)
