Installation Procedure

Installation options for the 02 series

• Even if you set the Use of drain pump (SEG8) option to 0, it is automatically set to 2 (the drain pump is used with 3

minute delay).

• If you set the Maximum filter usage time (SEG18) option to a value other than 2 and 6, it is automatically set to 2

(1000 hours).

• If you set an option to a value that is out of range specified above, the option is automatically set to 0 by default.

• The SEG5 option (Use of central control) is set to 1 (Use) by default. Therefore, you don’t need to set the SEG5

option additionally. Note that even if the central control system is not connected, no errors occur. If you want a

specific indoor unit not to be controlled by the central control system, set the SEG option of that indoor unit to 0

(Disuse).

• The external output of SEG15 is generated via MIM-B14 connection. (Refer to the manual of MIM-B14.)

• If you set the Individual control with remote control (SEG20) option to a value other than 0 to 4, it is automatically

set to 0 (Indoor 1).

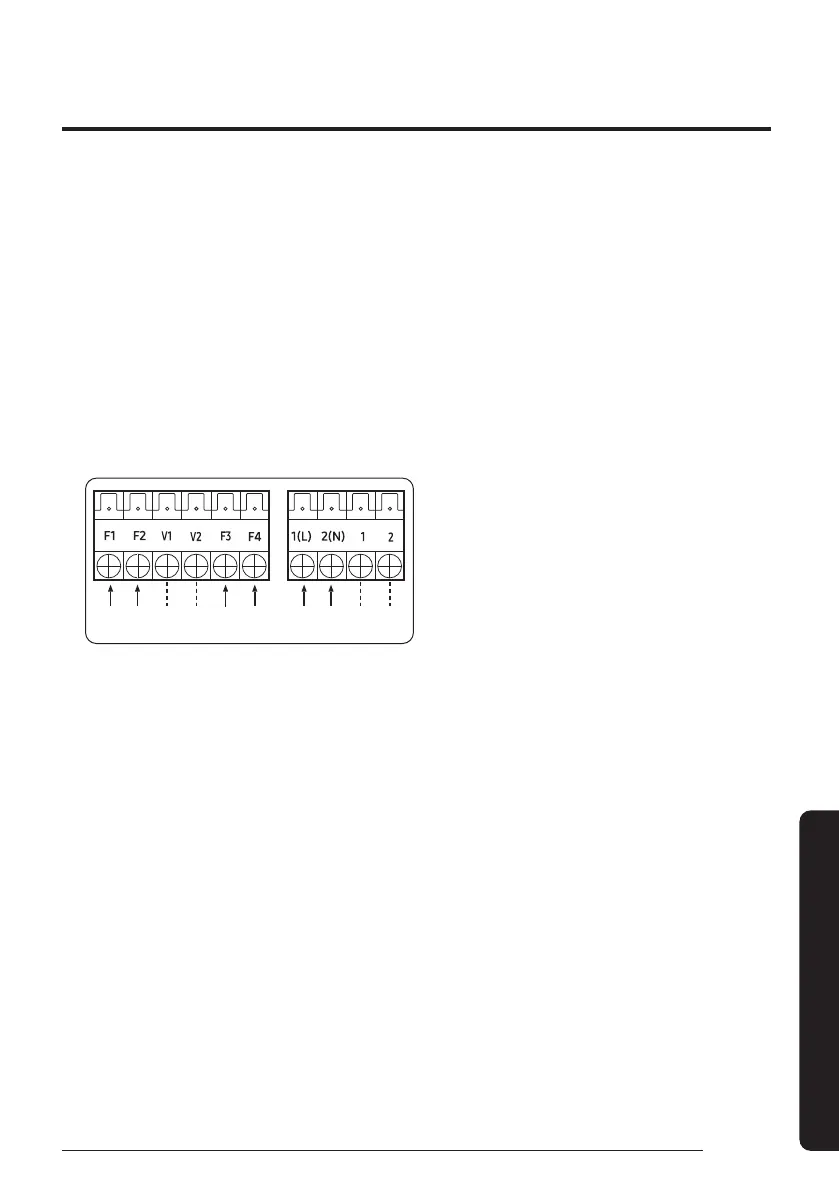

COM1

Outdoor

Communication

Wire Remote

Controller

POWER

HOT

OIL

DC 12 V

COM2(+) L N(-)

※

The output of hot coil terminal is AC 220 V /

230 V

(The same as Indoor Unit’s input Power)
