English

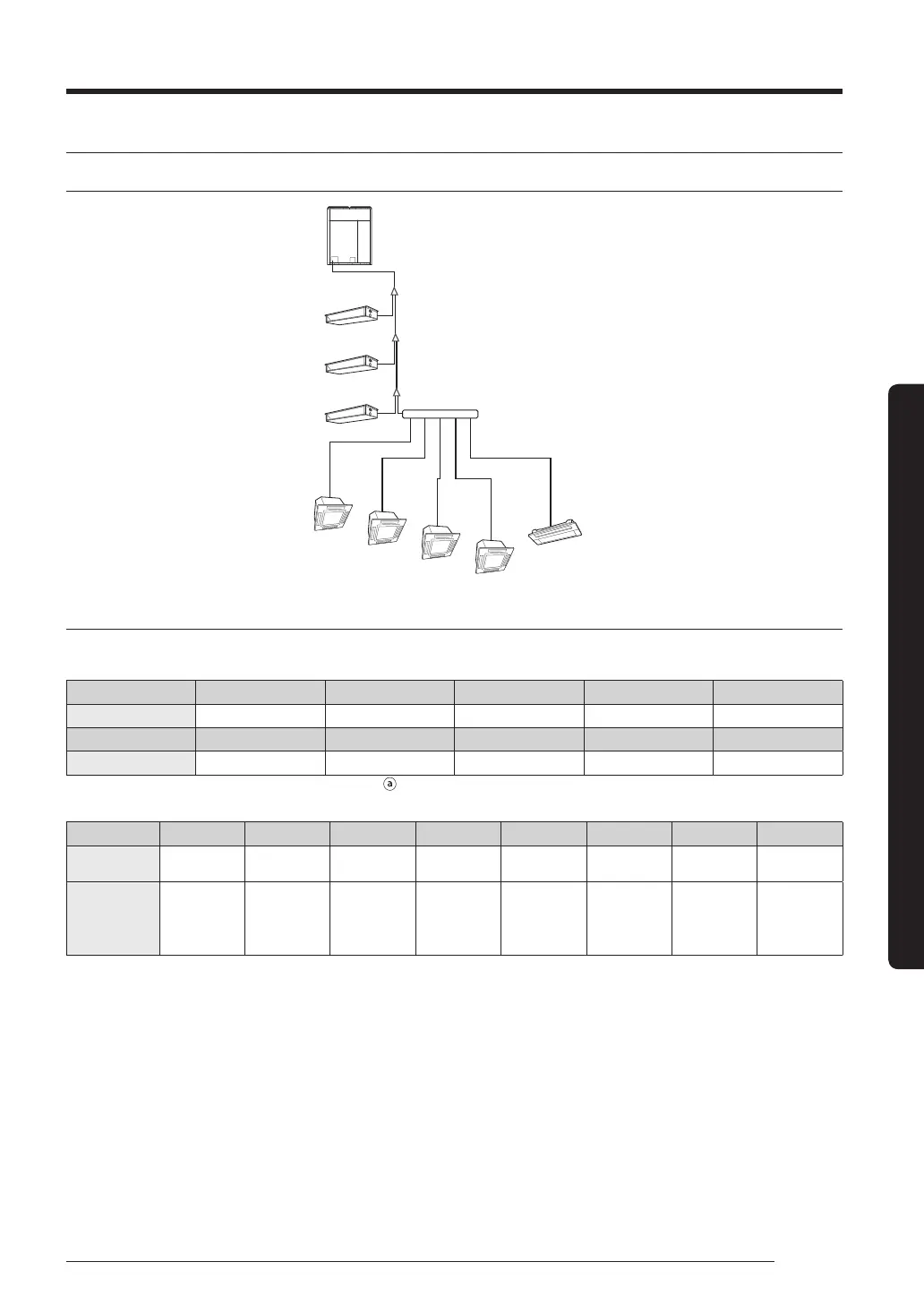

Installation Procedure
Additional refrigerant
H/P
Ø12.70 (5 m)
Ø12.70 (5 m)
Ø12.70 (5 m)
Ø6.35 (5 m)
Ø6.35 (10 m)
Ø6.35 (15 m)
Ø9.52 (10 m)
Ø9.52 (10 m)
Ø9.52 (10 m)
Ø9.52
(10 m)
Ø6.35 (5 m)
Ø9.52 (10 m)
46.4kW
4.5kW
5.6kW
5.6kW
7.1kW
7.1kW
7.1kW
7.1kW
3.6kW
Refrigerant pipe installation
• Basic amount of refrigerant within the outdoor unit (kg)
– Amount of additional refrigerant has to be calculated based on the sum of all liquid pipe length.
Classification AM080AXVFNH/ID AM100AXVFNH/ID AM120AXVFNH/ID AM140AXVFNH/ID AM160AXVFNH/ID
Basic amount 5.5 5.5 7.0 8.0 8.5
Classification AM180AXVFNH/ID AM200AXVFNH/ID AM220AXVFNH/ID AM240AXVFNH/ID
Basic amount 8.5 8.5 10.5 14.0
• Amount of additional refrigerant depending on the pipe size ( )
– Amount of additional refrigerant has to be calculated based on the sum of all liquid pipe length.
Size of liquid pipe Ø 6.35 Ø 9.52 Ø 12.70 Ø 15.88 Ø 19.05 Ø 22.22 Ø 25.40 Ø 28.58
Additional amount
(kg/m)
0.02 0.06 0.125 0.18 0.27 0.35 0.53 0.65
Amount of
refrigerant added
when the diameter
of liquid pipe is
reduced (kg/m)
- 0.08 0.13 0.195 0.28 0.42 0.53 -
– For the indoor unit already connected to EEV kit, the additional refrigerant charging is 0.01kg per meter regardless of the pipe size.
