24
English

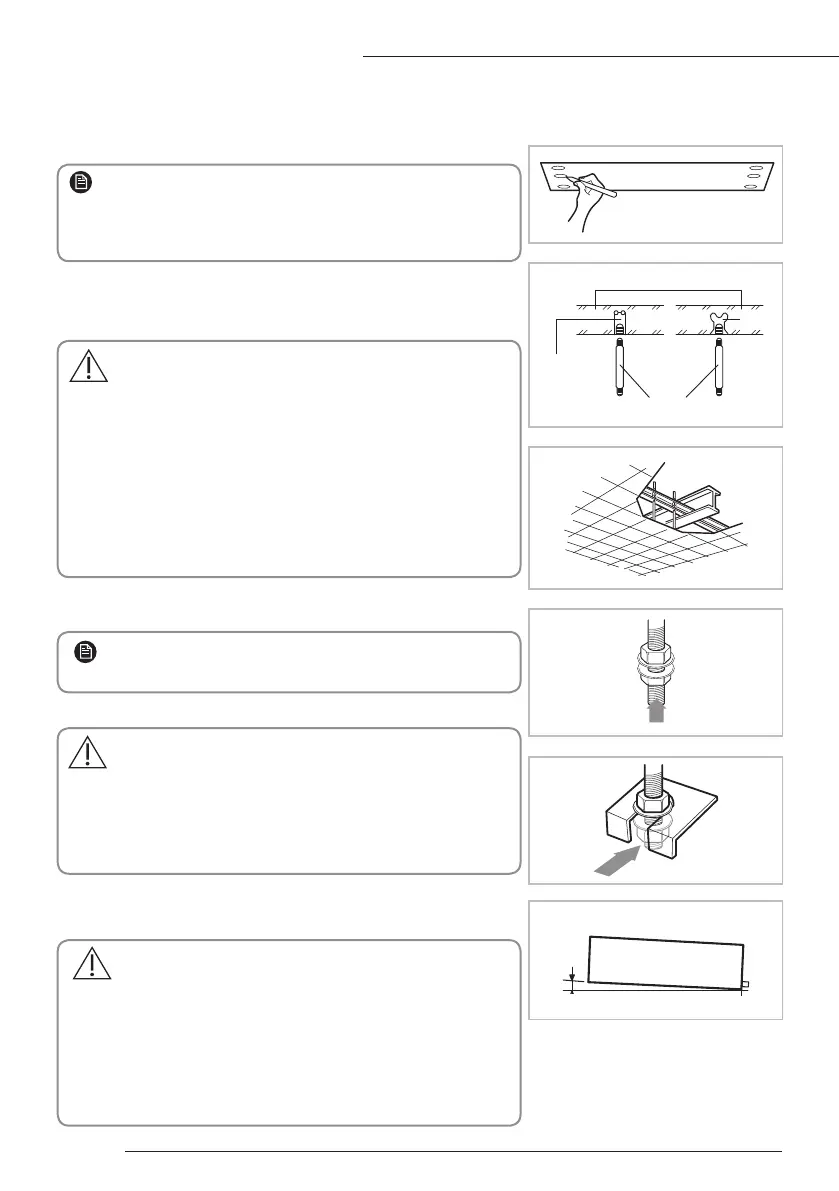

1
Place the pattern sheet on the ceiling at the spot where you
want to install the indoor unit.
2
Insert bolt anchors. Use existing ceiling supports or construct a
suitable support as shown in figure.
3 Install the suspension bolts depending on the ceiling type.
4 Screw eight nuts to the suspension bolts making space for hang-
ing the indoor unit.
5 Hang the indoor unit to the suspension bolts between two nuts.
6 Screw the nuts to suspend the unit.
7
Adjust level of the unit by using measurement plate for all 4 sides.
Indoor unit installation
When deciding on the location of the air conditioner with the owner, the following restrictions must be taken into account.
Concrete
Suspension bolt(M8)-field supply
Hole in anchor
hole in plug
Ceiling support
When the drain hose is installed to the right.
Drain hose port
3mm
Insert
NOTE
• Since the diagram is made of paper, it may shrink or stretch slightly
due to temperature or humidity. For this reason, before drilling the
holes maintain the correct dimensions between the markings.
CAUTION
• Ensure that the ceiling is strong enough to support the
weight of the indoor unit. Before hanging the unit, test the
strength of each attached suspension bolt.
• If the length of suspension bolt is more than 1.5m,
it is required to prevent vibration.
• If this is not possible, create an opening on the false ceiling
in order to be able to use it to perform the required opera-
tions on the indoor unit.
NOTE
•
You must install all the suspension rods.
CAUTION
• Piping must be laid and connected inside the ceiling when
suspending the unit. If the ceiling is already constructed,
lay the piping into position for connection to the unit before
placing the unit inside the ceiling.
CAUTION
• For proper drainage of condensate, give a 3mm slant to the
left or right side of the unit which will be connected with
the drain hose, as shown in the gure. Make a tilt when you
wish to install the drain pump, too.
• When installing the indoor unit, make sure it is not tilted
toward front or back side.
