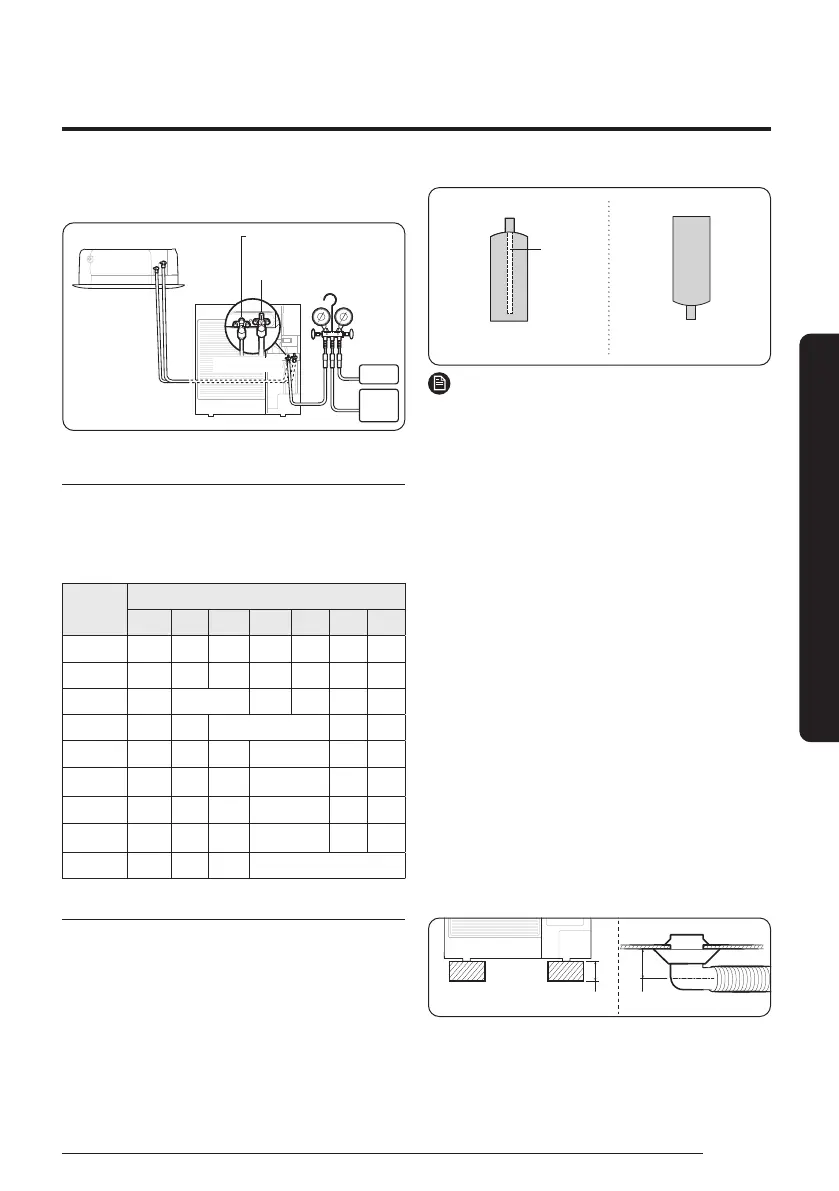

Installation Procedure
• AC100/120BXADEH & AC100/120/180BXADGH
Indoor Unit
Outdoor Unit
Ref
Vacuum
pump
Liquid side stop valve
(service port)
Gas side stop valve(service port)
Calculating the quantity of refrigerant to add
The quantity of additional refrigerant is variable according to
the installation situation. Thus, make sure the outdoor unit
situation before adding refrigerant. This operation can only be
performed by a qualified refrigeration specialist.
Model
Interconnection pipe length (m)
0~5 5~15 15~30 30~40 40~50 50~60 60~75
AC026BXADEH
- - - - - - -
AC035BXADEH
- - - - - - -
AC052BXADEH
- +20 g/m - - - -
AC071BXADEH
- - +20 g/m - -
AC100BXADEH
- - - +50 g/m - -
AC100BXADGH
- - - +50 g/m - -
AC120BXADEH
- - - +50 g/m - -
AC120BXADGH
- - - +50 g/m - -
AC180BXADGH
- - - +50 g/m
Charging the system with liquid refrigerant
R-410A is a mixed type of refrigerant. It is necessary for
recharging under conditions of liquid. When recharging
refrigerant from the refrigerant cylinder to the equipment,
follow the instructions below.
• Before recharging, check whether the cylinder has
a siphon or not. There are two ways to recharge the
refrigerant.
Cylinder with siphon Cylinder without siphon
siphon
Charge the refrigerant
standing the cylinder upright.
Charge the refrigerant turning
the cylinder upside down.
NOTE
• If R-410A refrigerant is charged with gas, the
composition of the charged refrigerant changes and
the characteristics of the equipment vary.
• While adding refrigerant use an electronic scale to
measure the volume added. If the refrigerant cylinder
doesn’t have a siphon, turn it upside-down.
• The designs and shape are subject to change according
to the model.
Step 12 Connecting the drain hose to the
outdoor unit
When using the air conditioner in the heating mode, ice
may accumulate . During de-icing (defrost operation), the
defrosting water must be drained off safely. Consequently, you
must install a drain hose on the outdoor unit, following the
instructions below.
1 Make space more than 80 mm between the bottom of the
outdoor unit and the ground for installation of the drain
hose, as shown in figure.
2 Insert the drain plug into the hole on the underside of the
outdoor unit.
3 Connect the drain hose to the drain plug.
4 Ensure that the drained water runs off correctly and
safely.If needed apply a heating cable to prevent freezing
of the drain hose/ pipe.
80 mm 13 mm
5 Be sure to plug the rest of drain holes not connected with
drain plugs using drain caps.
