22
English

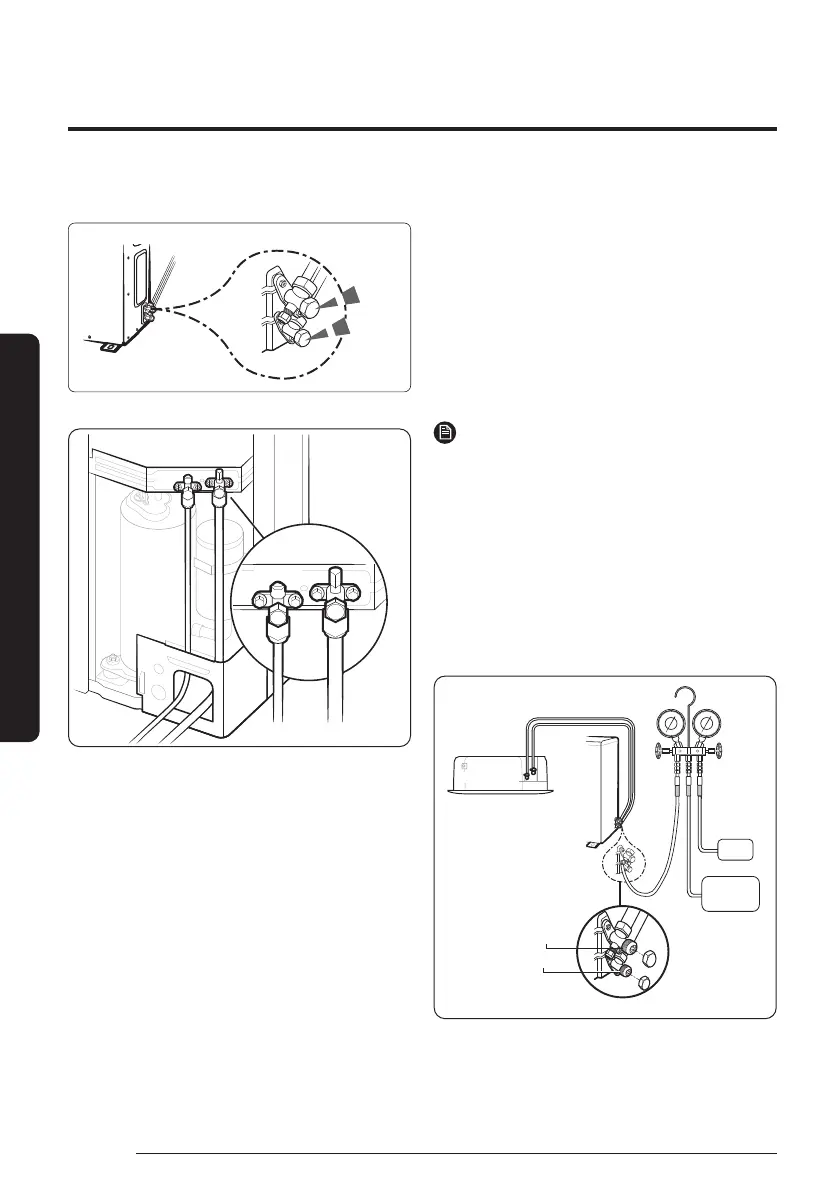

Installation Procedure
Installation Procedure
• AC026/035/052/071BXADEH
A (Gas)
B (Liquid)
• AC100/120BXADEH & AC100/120/180BXADGH
A (Gas)
B (liquid)
• The designs and shape are subject to change according
to the model.
Step 11 Adding refrigerant (R-410A)
• The outdoor unit is loaded with sufficient refrigerant for
the standard piping. Thus, refrigerant must be added
if the piping is lengthened. This operation can only
be performed by a qualified refrigeration specialist.
To determine the quantity of refrigerant charge, see
Calculating the quantity of refrigerant to add on page
23.
1 Check if the stop valve is closed completely.
2 Charge the refrigerant through the service port of the
liquid stop valve.
NOTE
• Do not charge the refrigerant through the service port
of the gas stop valve.
3 If you have any difficulty charging the refrigerant as
described in the steps above, take the following steps:
a Open the liquid stop valve and gas stop valve.
b Operate the air conditioner by pressing the K2 key on
the outdoor unit PCB.
c After about 30 minutes, charge the refrigerant
through the service port of the gas stop valve.
• AC026/035/052/071BXADEH
Indoor Unit
Outdoor Unit
Ref
Vacuum
pump
Liquid side stop
valve(service port)
Gas side stop
valve(service port)
