English

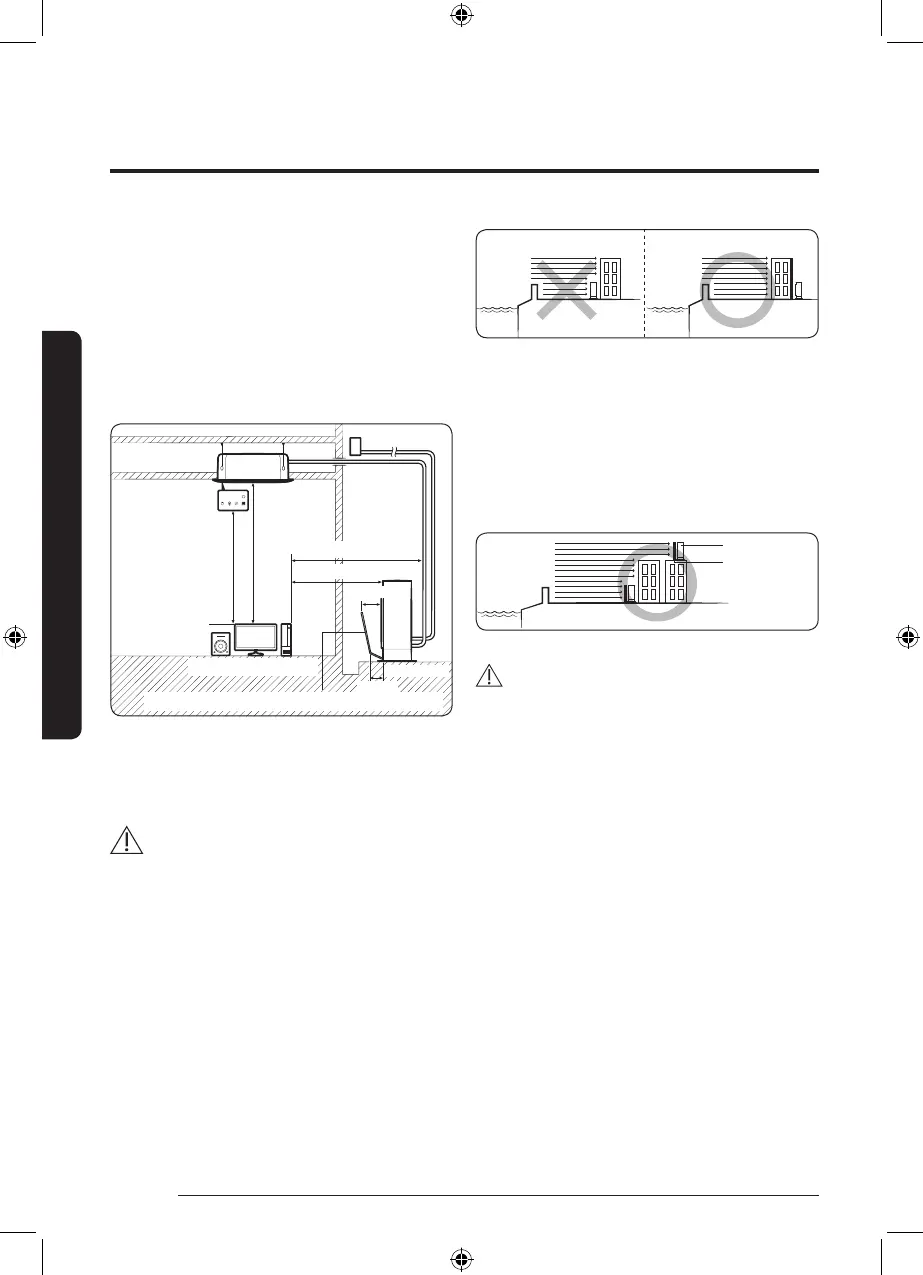

Installation Procedure
• Install the unit in a location where the pipes and the
cables can be easily connected to the indoor unit.
• Install the unit on a flat, stable surface that can withstand
the weight of the unit. Otherwise, the unit can generate
noise and vibration during operation.
• Install the unit so that the air flow is directed towards the
open area.
• Maintain sufficient clearance around the outdoor unit,
especially from a radio, computer, stereo system, etc.
Indoor Unit
Control
1.5 m or more
1 m or more
1 m or more
1.5 m or more
300 mm
Outdoor Unit
200 mm
Air Guide Duct (This product is not provided by Samsung)
Stereo Computer etc
• Install the unit at a height where its base can be firmly
fixed in place.
• Make sure that the water dripping from the drain hose
runs away correctly and safely.
CAUTION
• This device must be installed according to the national
electrical rules.
• If your outdoor unit exceeds a net weight of 60 kg,
do not install it on a suspended wall, but stand it on
a floor.
• When installing the outdoor unit at the seaside, an
additional protective coating (third party) may be
required,make sure that it is not directly exposed to
sea breeze. If you cannot find an adequate place free
from direct sea breeze, construct a protection wall or a
protective fence.
– Install the outdoor unit in a place (such as near
buildings etc.) where it can be prevented from sea
breeze. Failure to do so may cause a damage to the
outdoor unit.
Sea breeze Sea breeze
Outdoor Unit Outdoor Unit
Sea Sea
• If you cannot avoid installing the outdoor unit at the
seaside, construct a protection wall around to block the
sea breeze.
• Construct a protection wall with a solid material such
as concrete to block the sea breeze. Make sure that the
height and the width of the wall are 1.5 times larger
than the size of the outdoor unit. Also, secure a space
larger than 700 mm between the protection wall and the
outdoor unit for exhausted air to ventilate.
Outdoor Unit
Protection wall
Sea breeze
Sea
CAUTION
• Depending on the condition of power supply, unstable
power or voltage may cause malfunction of the parts or
control system. (At the ship or places using power supply
from electric generator...etc)
• Install the unit in a place where water can drain smoothly.
• If you have any difficulty finding installation location as
prescribed above, contact your manufacturer for details.
• Be sure to clean the heat exchanger and base plate of the
outdoor unit regularly from any collected sand and salt.
• Touch up the additional protective coating (third party)
if needed, at least once in a year or according the third
party's product requirements.
• Check the condition of the product periodically.
– Check the installation site every 3 months and
perform anti-corrosion treatment such as R-Pro
supplied by SAMSUNG (Code : MOK-220SA) or
commercial water repellent grease and wax,
etc.,based on the product condition.
– When the product is to be shut down for a long period
of time, such as off-peak hours, take appropriate
measures like covering the product.
• If the product installed within 500m of seashore, special
anti-corrosion treatment is required.
Please contact your local SAMSUNG representative for
further details.
Installation Procedure
