31
ENGLISH

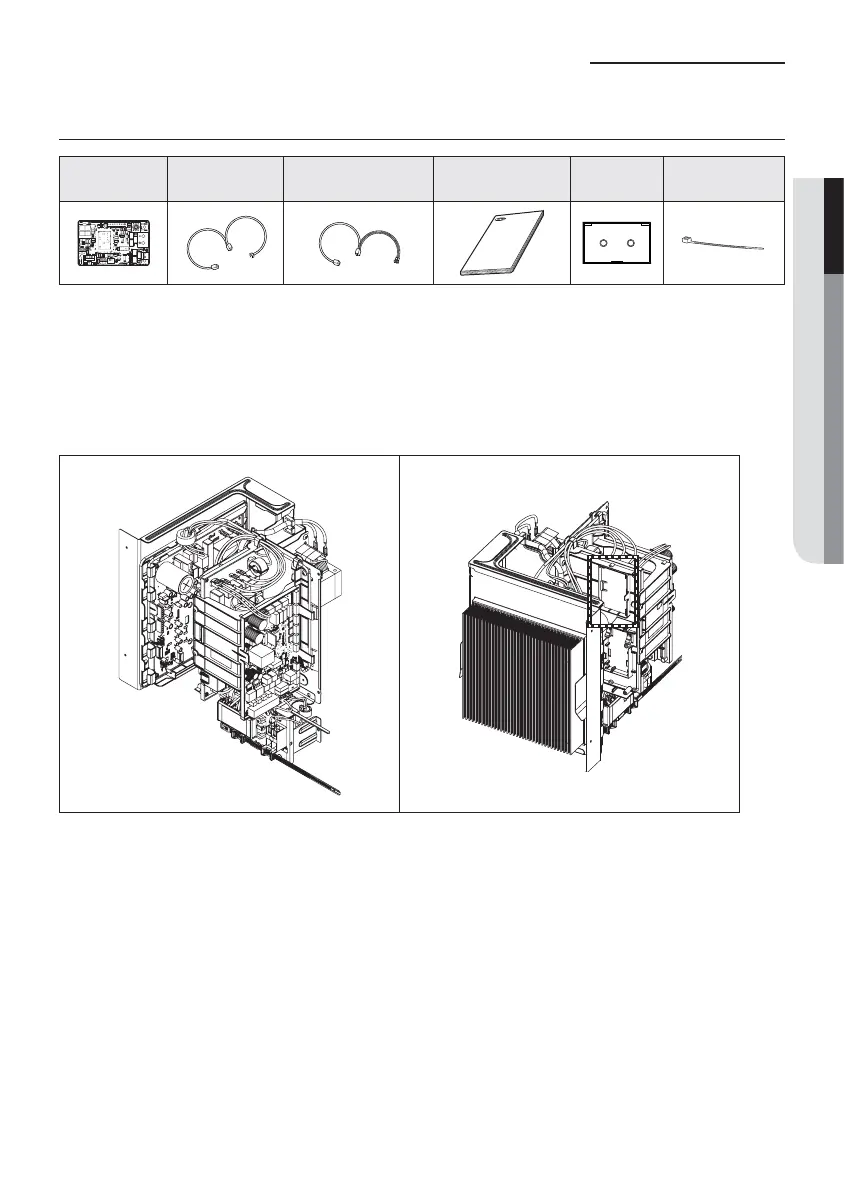

Interface module Installation (Optional)
Accessories (Interface module : MIM-B14)
Interface module
Interface module
power cable
Interface module
communication cable
Installation Manual Case Cable-tie
1. Fix the case at with bolts on the side of the control box in the outdoor unit.(See the picture)
2. Attach the Interface module PCB to the case in the control box in the outdoor unit, then connect the power and the
communication cable between the Interface module and the outdoor unit; refer to the gure of pages 18~19.
3. If you install a Interface module to an outdoor unit, every indoor unit which is connected to an outdoor unit can be
controlled simultaneously.
4. Each outdoor unit connected to the same centralized controller has its own Interface module.
Fix the case
