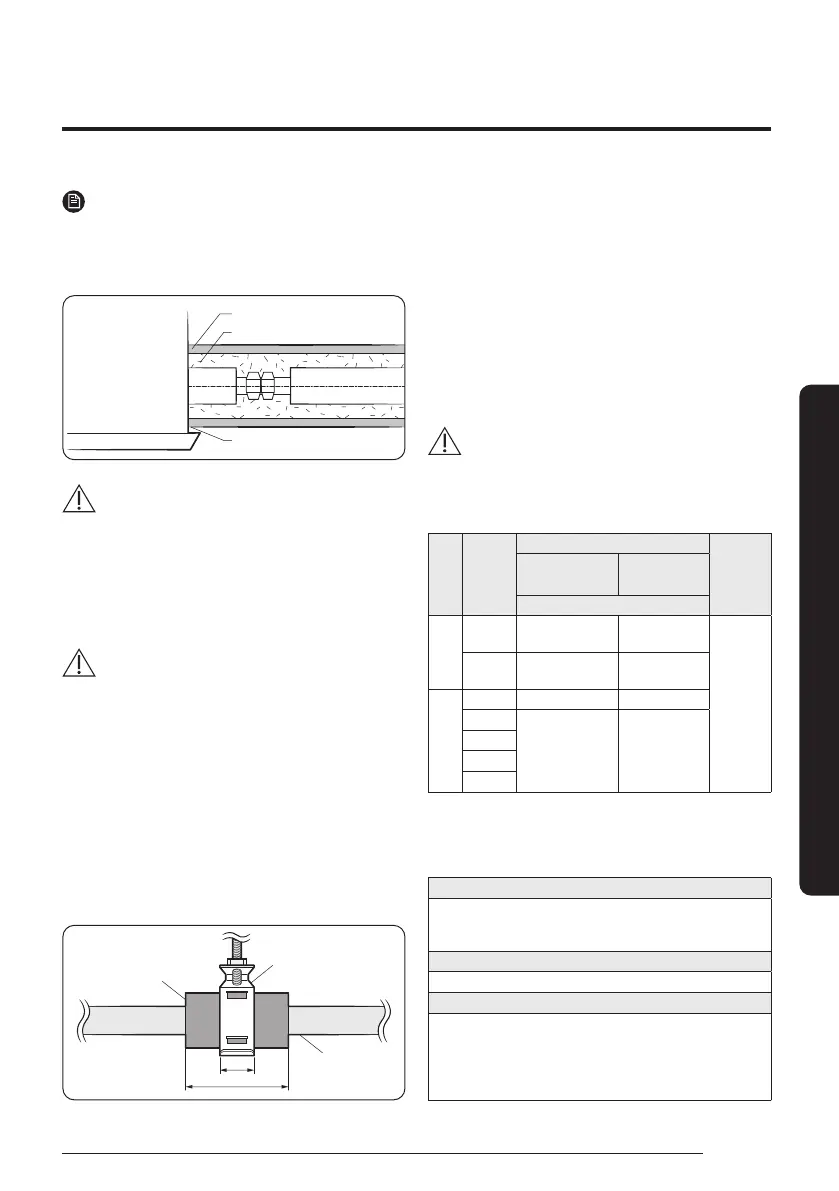

Installation Procedure

NOTE

• Always make the seam of pipes face upwards.

2 Wind insulating tape around the pipes and drain hose

avoiding compressing the insulation too much.

Indoor unit

Insulation cover pipe

Be sure to overlap the insulation.

Insulation pipe

CAUTION

• Be sure to wrap insulation tightly without any gaps.

3 Finish wrapping insulating tape around the rest of the

pipes leading to the outdoor unit.

4 The pipes and electrical cables connecting the indoor

unit with the outdoor unit must be fixed to the wall with

suitable ducts.

CAUTION

• Make sure that all refrigerant connection must be

accessible for easy maintenance and detachment.

• Install the insulation not to get wider and use the

adhesives on the connection part of it to prevent

moisture from entering.

• Wind the refrigerant pipe with insulation tape if it is

exposed to outside sunlight.

• Install the refrigerant pipe respecting that the

insulation does not get thinner on the bent part or

hanger of pipe.

• Add the additional insulation if the insulation plate

gets thinner.

Additional insulation

Hanger

a x 3

Refrigerant pipe

insulation

5 Select the insulation of the refrigerant pipe.

• Insulate the gas side and liquid side pipe, noting

the insulation thickness that must differ according

to the pipe size.

• Standard: Less than an indoor temperature

of 30°C, with humidity at 85%. If installing in

a high humidity environment, use one grade

thicker insulator by referring to the table below.

If installing in an unfavourable environment, use

thicker one.

• The heat-resistance temperature of the insulator

must be more than 120°C.

CAUTION

• Must fit tightly against body without any gap.

• All refrigerant connection must be accessible, in order

to permit either unit maintenance or removal.

Pipe

Pipe size

(mm)

Insu

tion type (heating/cooling)

Remarks

Standard

(Less than 30°C, 85%)

High humidity

(Over 30°C, 85%)

EPDM, NBR (mm)

Liquid

pipe

Ø6.35 to

Ø9.52

9t 9t

The internal

temperature

is higher

than 120°C.

Ø12.7 to

Ø19.05

13t 13t

Gas

pipe

Ø6.35 13t 19t

Ø9.52

19t 25t

Ø12.70

Ø15.88

Ø19.05

• When installing insulation in the places and conditions

below, use the same insulation that is used for high

humidity conditions.

High humidity locations such as shorelines, hot springs, lake or

riversides, and ridges (when part of the building is covered by earth

and sand)

Restaurant ceiling, sauna, swimming pool etc.

Ceilings frequently exposed to moisture and cooling are not covered.

For example, pipes installed at a corridor of a dormitory and studio or

near an exit that opens and closes frequently.

Places (where the pipes are installed) that are highly humid due to a

lack of ventilation.
