English

Installation Procedure

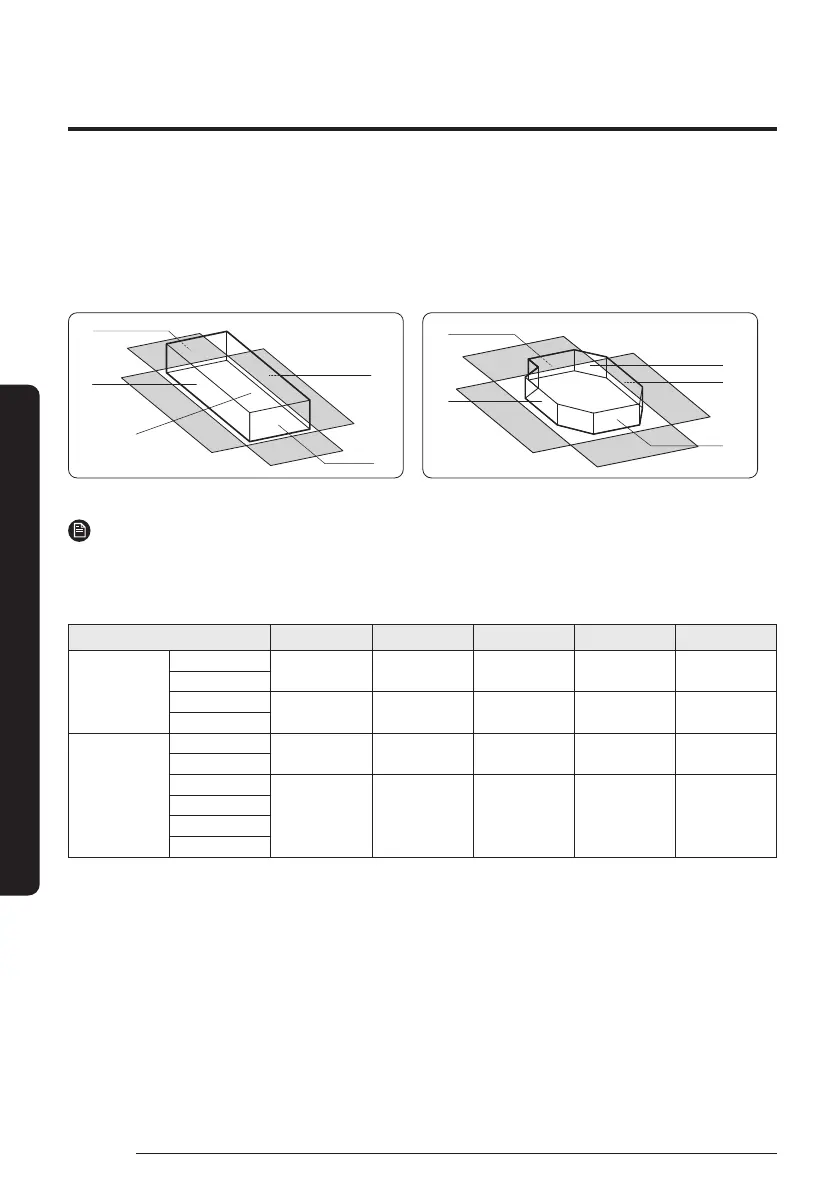

Step 3 Optional: Insulating the body of the indoor unit

If you install a cassette type indoor unit on the ceiling when temperature is over 27°C and humidity is over 80%, you must apply

an extra 10 mm thick polyethylene insulation or a similar type of insulation to the body of the indoor unit.

Cut away the part where pipes are pulled out for the insulating work.

1 way Cassette 4 way Cassette

Insulate the end of the pipe and some curved area by using separate insulator.

NOTE

• A: Reference for the outer circumference of the unit

(When insulating the body of the indoor unit, use A as the reference for its outer circumference.)

(Unit: mm)

Indoor Unit A B C D E

1 way Cassette

AC026FE1DKF

990x155 990x155 430x155 430x155 990x430

AC035FE1DKF

AC052FE1DKF

1220x155 1220x155 470x155 470x155 1220x470

AC071FE1DKF

4 way Cassette

AC052FE4DKF

910x151 940x151 610x151 650x151 870x870

AC071FE4DKF

AC100FE4DKF

910x235 940x235 610x235 650x235 870x870

AC120FE4DKF

AC140FE4DKF

AC160FE4DKF
