Installation Procedure

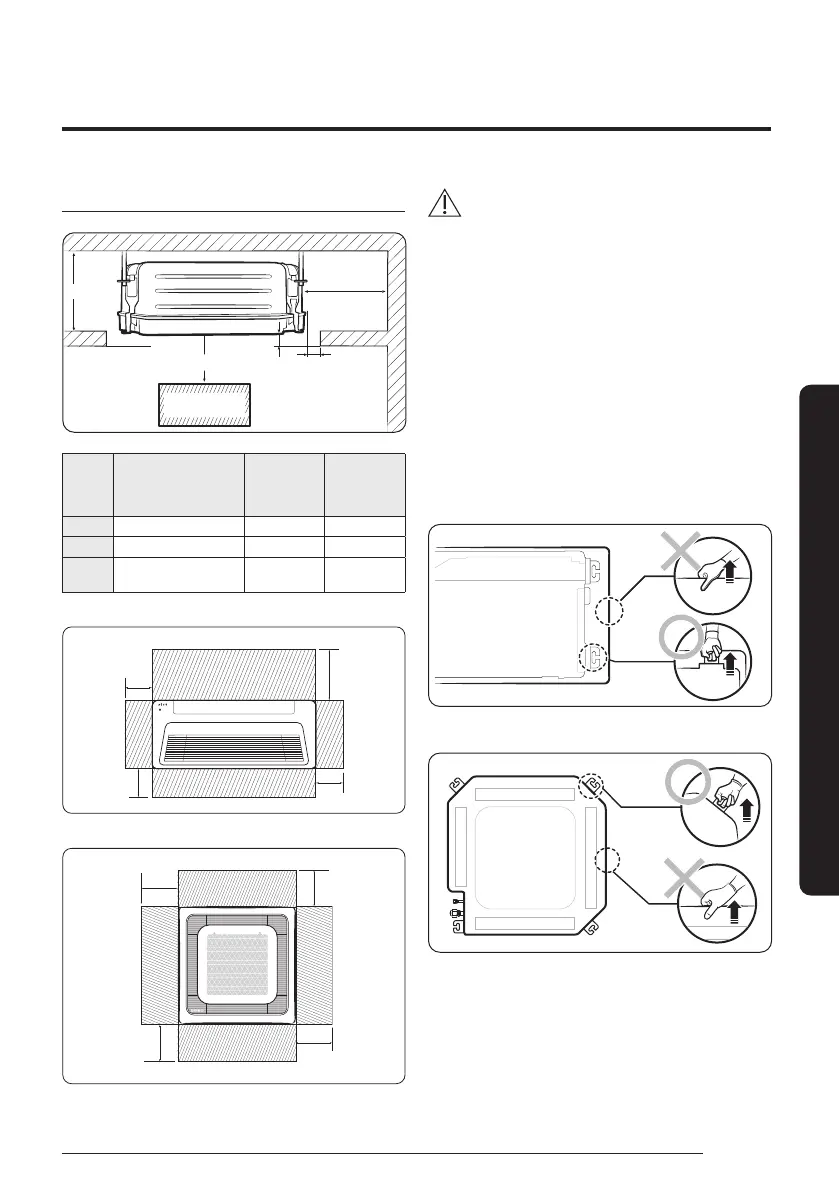

Spacing requirements

2500 mm or more

The appearance

of the unit may be

different from the

picture depending

on the model

Obstruction

1500 mm or

(Unit: mm)

Model

AC026FE1DKF

AC035FE1DKF

AC052FE1DKF

AC071FE1DKF

C052FE4DKF

AC071FE4DKF

C100FE

4DKF

AC120FE4DKF

AC140FE4DKF

AC160FE4DKF

A 170 251 335

B 10 17 17

Refer to Pattern sheet and

Installation gauge

20 20

1 way Cassette

(Unit: mm)

150 or more

1500 or more

150 or more

4 way Cassette

(Unit: mm)

C: 1500 mm or more

CAUTION

• Comply with the length and height limits described in

the figure above.

• For the product that uses the R-32 refrigerant, Install

the indoor unit on the wall 1.8 m or higher from the floor.

• The indoor unit must be installed according to the

specified distances in order to permit accessibility from

each side, to guarantee correct operation, maintenance,

and repair of the unit. The components of the indoor

unit must be reachable and removable under safe

conditions for people and the unit.

• Do not carry the unit by holding the refrigerant or drain

pipes to avoid product damage.

• Carry the unit by holding the hanger plates located on

the corners of the unit.

1 way Cassette

4 way Cassette
