21
Installation Procedure
English

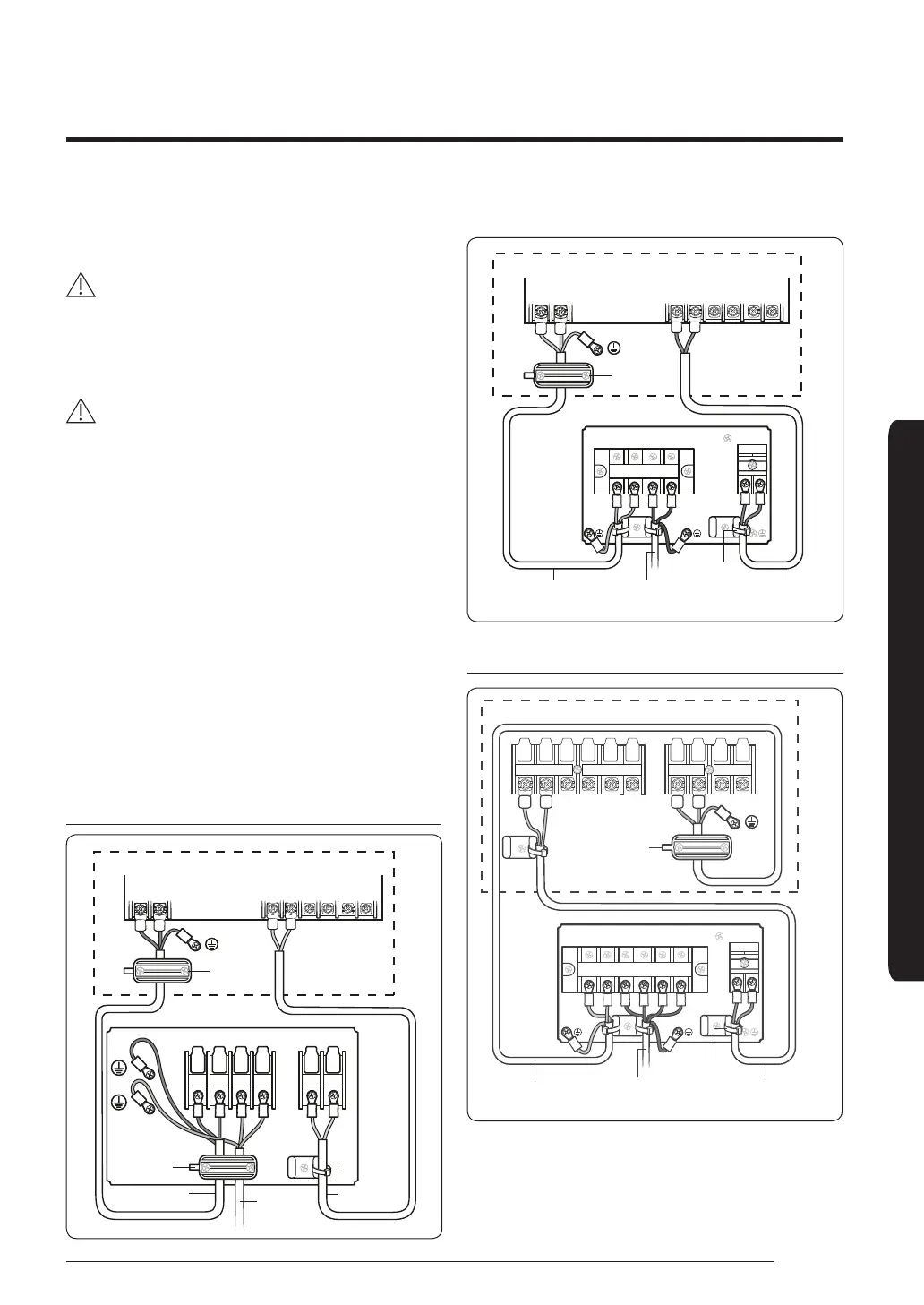

Step 13 Connecting the power and
communication cables
CAUTION
• Always remember to connect the refrigerant pipes
before performing the electric connections. When
disconnecting the system, always disconnect the electric
cables before disconnecting the refrigerant pipes.
CAUTION
• Always remember to connect the air conditioner to the
grounding system before performing the electric connections.
Use a crimp ring terminal at the end of each wire.
The indoor unit is powered through the outdoor unit by
means of a H07 RN-F connection cable (or a more power
model), with insulation in synthetic rubber and a jacket
in polychloroprene (neoprene), in accordance with the
requirements specified in the standard EN 60335-2-40.
1 Remove the screw on the electrical component box and
remove the cover plate.
2 Route the connection cord through the side of the indoor
unit and connect the cable to the terminals refer to the
figure below.
3 Route the other end of the cable to the outdoor unit
through the ceiling & the hole on the wall.
4 Reassemble the electrical component box cover, carefully
tightening the screw.
1 phase (AC012/018/024TNMPEC)
1(L) 2(N) L N F1 F2
Cable
tie
Main power
cable
Cable clamp
Cable clamp
Indoor power cable
Communication
cable
Outdoor Unit
L
N
F1
F2
Indoor Unit
1 phase (AC030/036/042TNMPEC)
Cable clamp
L
N
F1
F2
Indoor Unit
Indoor power cable Main power cable Communication
cable
Cable tie
1(L) 2(N) L N
F1 F2
Outdoor Unit
3 phase (AC054TNMPEC/AC060TNHPEC)
1(L) 2(N) L1(R) L2(S) L3(T) N
F1 F2
Indoor power cable Main power cable Communication
cable
Cable tie
Outdoor Unit
Indoor Unit
Cable clamp
1(L) 2(N) 1 2
V1 V2
F3 F4F2F1
