WKP-1 Installation 13
Bosch Security Systems, Inc.
User Manual
F.01U.193.272
Rev. 07
Address Switch
A rotary switch is used to indicate the logical port address the keypanel uses to communicate with the Matrix. The switch is
read continuously by the Matrix through polling. If the port address is changed, the new address is effective immediately.
NOTE: By default, the address port is shipped with an invalid address to ensure there are no conflicts with existing
keypanels. It is important to set the address port for the WKP-1 keypanel for it to function properly
In Zeus, ADAM, ADAM CS and ADAM-M intercom systems, intercom ports are arranged in groups of eight (8). Within each
group, each WKP-1 keypanel is uniquely identified by its address switch setting.
The address switch has a white pointer that points to the current switch setting.
NOTE: The address switch settings 9 through F, and 0 are not used.
ADAM Intercom Systems
Each AIO card contains two groups of eight intercom ports. However, the individual intercom ports may be broken out using
various types of breakout panels or punch blocks, and group may not be easily identified. It may be easier to set the WKP-1
address switch using the actual intercom port numbers.
REFERENCE: To address the WKP-1, refer to the address table in the ADAM user manual. Locate the intercom port
number to which the WKP-1 is connected to. Then, read across to the address column to find the address
number. Set the WKP-1 address switch to this number.
NOTE: The address switch settings 9 through F, and 0 are not used.

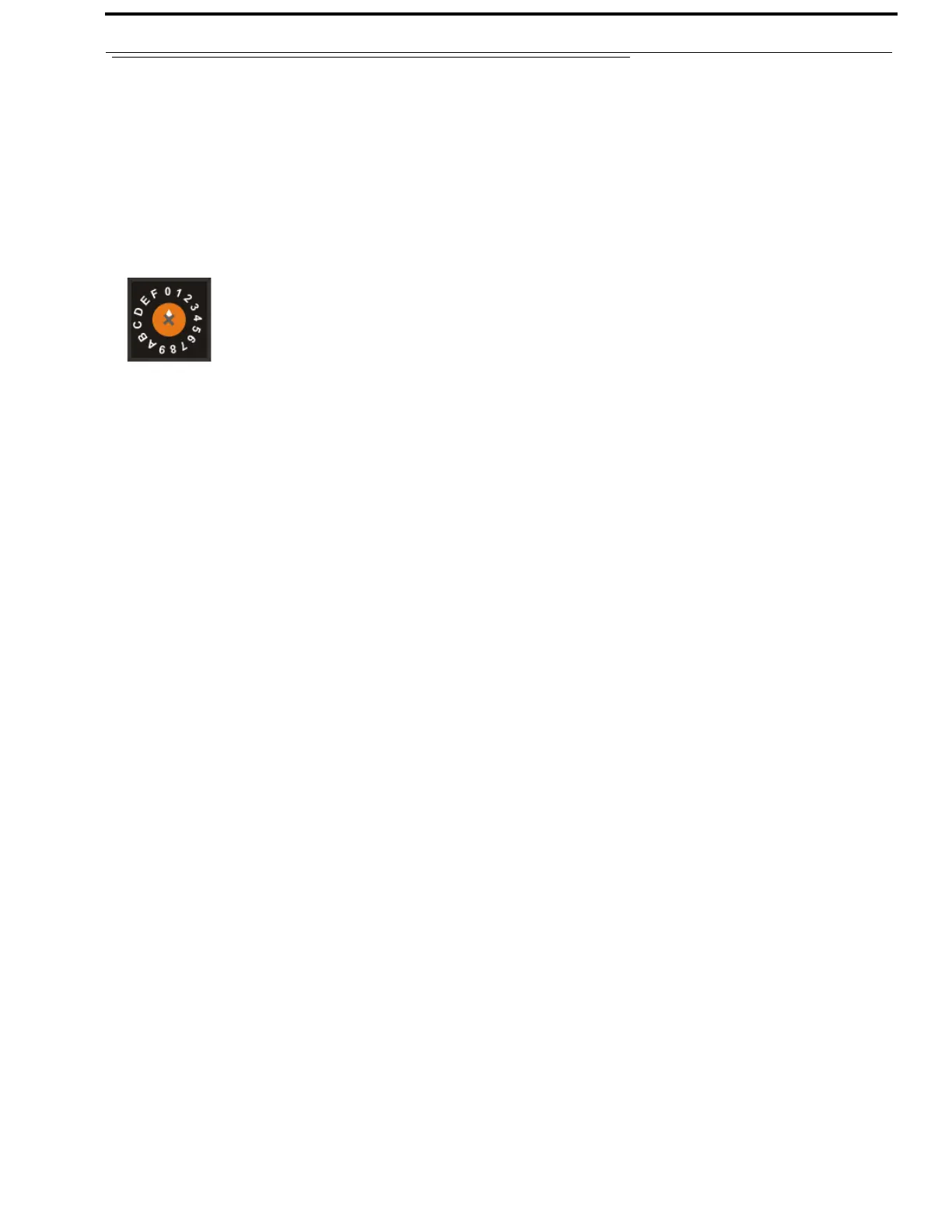

FIGURE 3. Address Switch
