16 Introduction PS-20 Power Supply
Termination Impedance
When connecting two (2) channels on a PS-20, the termination switch must be set to 400 to account for double termination.
By setting the termination impedance at 200 over two (2) channels, the power load would decrease to
100 (1/200 + 1/200 = 2/200 = 1/100). However, by setting the termination switch to 400 when operating over two (2)
channels the impedance to each channel is increased to 200 (1/400 + 1/400 = 2/400 = 1/200). For more information on cable
wiring, see Figure 4 on page 14.

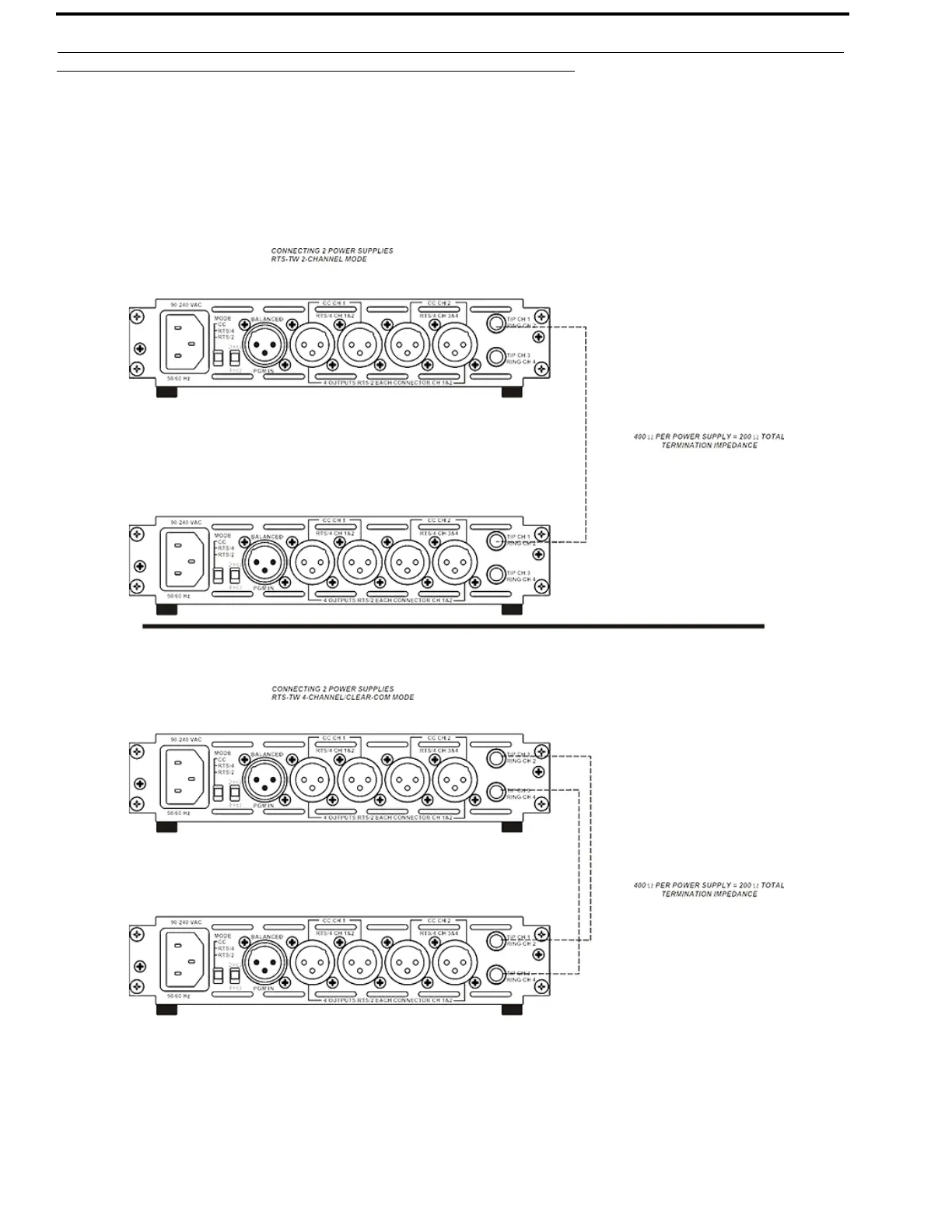

FIGURE 6. Termination Impedance Configuration Diagram
