KP Series Installation 29
Connections
Frame Connector
Use the Frame connector to connect to the Matrix system. For the frame connector location, see Figure 3 on page 18. The
intercom port you connect to should agree with the address set earlier.
Ethernet Connector
Use the Ethernet connector to connect the keypanel to a network system.

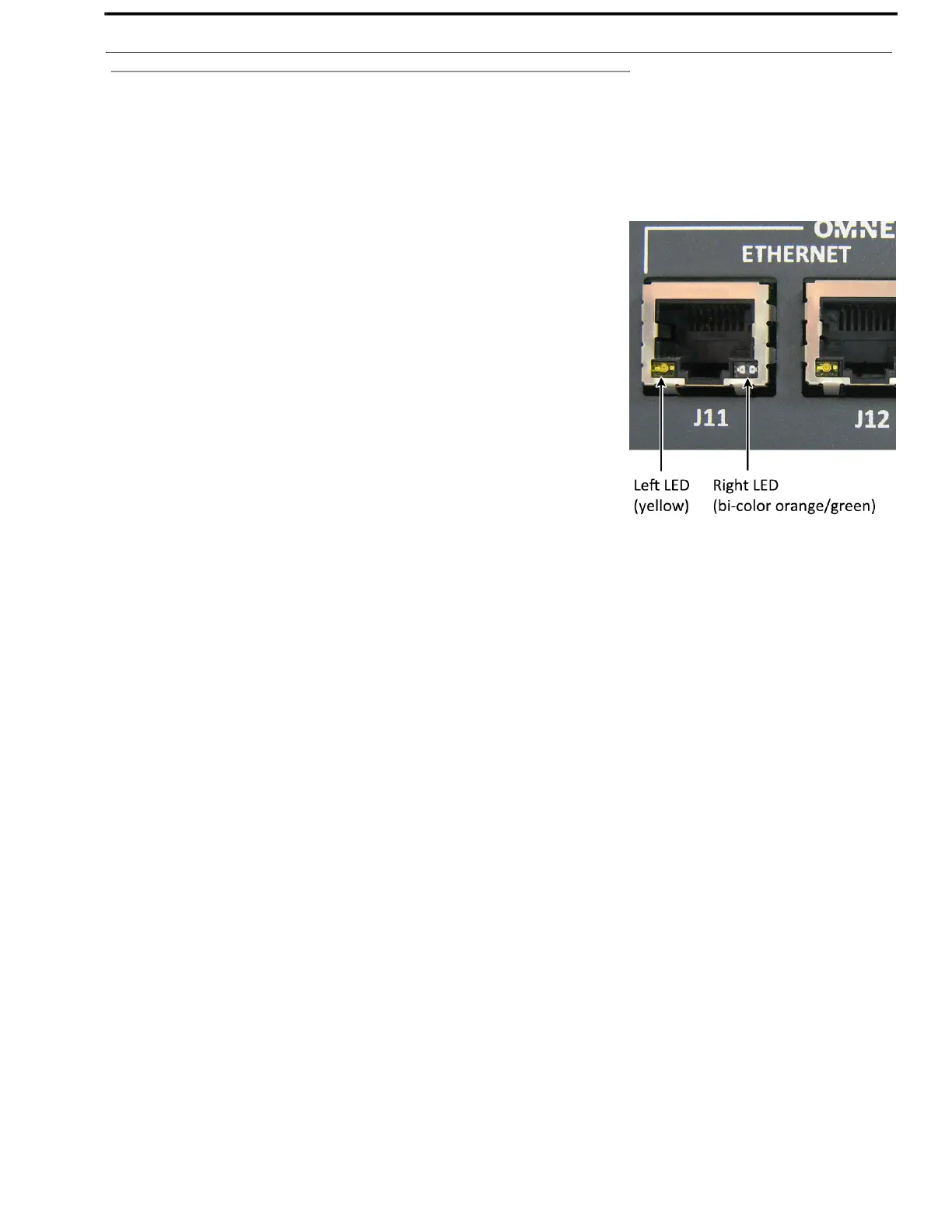

Each RJ-45 Ethernet connector has two LEDs:
Left LED. The left LED is yellow and indicates a network link is established. It
flashes on/off whenever there is network activity.
Right LED. The right LED is bi-color (orange and green) and indicates the speed
of the connection by the color displayed.
• A green LED indicates the port is operating at 1000Mbps (1 Gbps).
• An orange LED indicates the port is operating at 100Mbps.
• No LED color indicates the port is operating at 10Mbps. This is not
suitable for OMNEO networking.
Panel Microphone Connector
A panel microphone may be connected to the front or rear of the unit. The connector accepts MCP5, MCP6, or MCP90 series
panel microphones. Insert the microphone and rotate the entire microphone body clockwise several turns to lock it in place.
