18 Introduction KP Series
Reference View – KP-4016
1. Microphone Connector
2. High Resolution, Wide-Angle LCD Display
3. Keypad
4. AUX VOL. Knob
5. Main Speaker (Front)
6. Headset Connector (Front Panel)
7. Multi-Directional Lever Keys (pushbutton keys on KP-4016PB
8. MAIN VOL. Knob
9. POWER Connector
10. SPEAKER Rear Connector (2-position Terminal Block)
11. RJ-45 FRAME Connector
12. RJ-45 EXP/LCP Connector
13. OMNEO ETHERNET Connector (See “Ethernet Connector” on page 29)
14. OMNEO OPTICAL (fiber) Connector
SM SFP Module (F.01U.278.502)
MM SFP Module (F.01U.278.503)
15. OMNEO OPTICAL (fiber) Indicator LED
16. AUX 1 Connector
17. AUX 2 Connector
18. HEADSET Connector (Rear Panel)
19. EXT MIC Connector
20. LINE OUT/MIC OUT Connector
21. GPIO Connector (12-position Terminal Block)

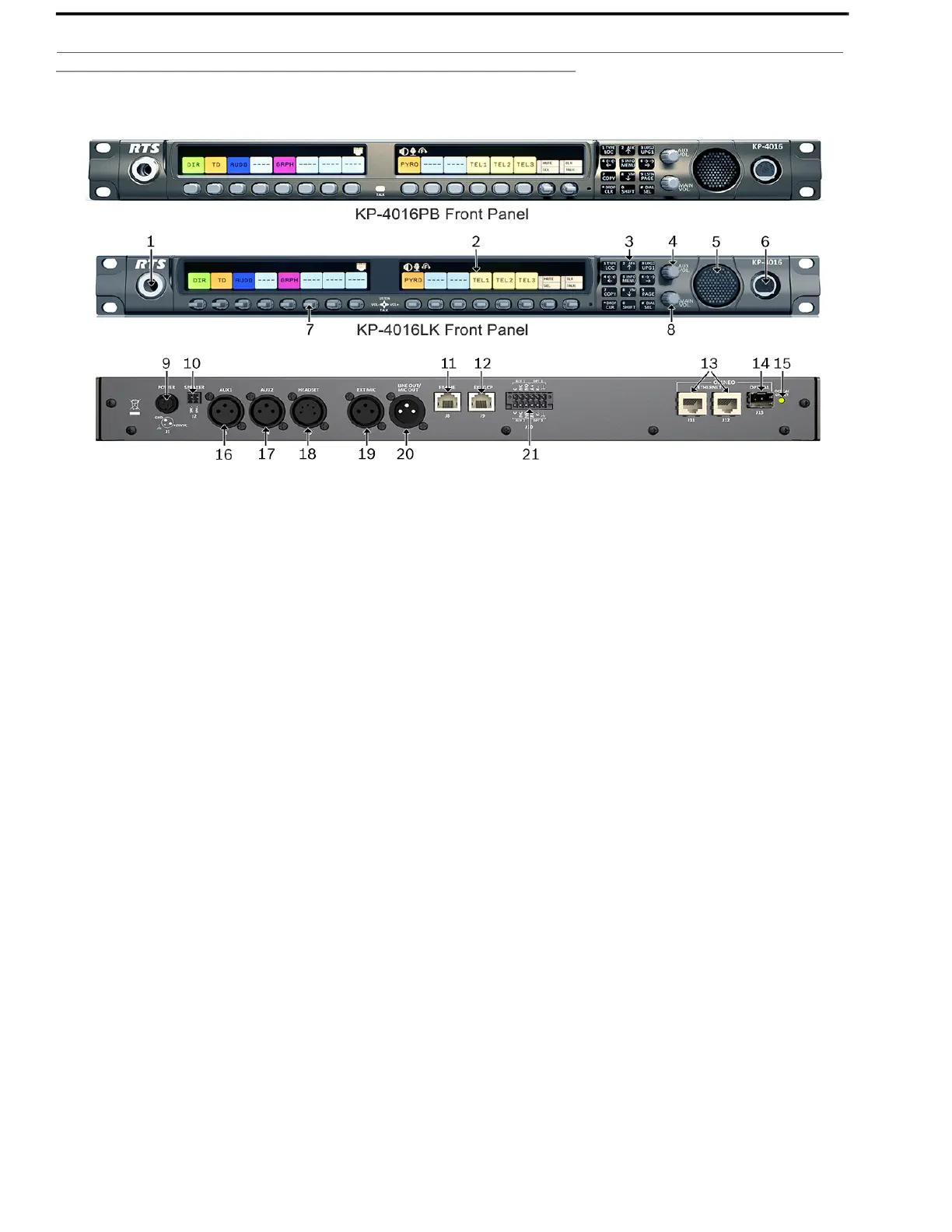

FIGURE 3. KP-4016 Reference View (pushbutton version shown on top)
