Main Specifications
42
Video Connectors
IEEE1394 Connector(i.LINK)
6-pin Type, conforms to IEEE1394, HDV standards, Same
connector on front and rear
❥ COMPONENT Input Connector
HD/SD Y/Pb/Pr BNC Type 75 ohms, BiLevel, TriLevel Sync
❥ DVI-I Input Connector
DVI 29pin single link RGB (8 bit each)
Digital RGB dot clock: 25-161MHz (VGA to UXGA)
Analog RGB: R/G/B 0.7 Vp-p, 75 ohms, H/V 5VTTL, RGB dot
clock: 25-90MHz(VGA to XGA)
❥ HD-SDI/SDI Input Connector (VC-300HD Only)
BNC Type Supports embedded audio
Conforms to SMPTE259M, SMPTE272M, SMPTE292M,
SMPTE299M
❥ COMPONENT Output Connector
HD/SD Y/Pb/Pr BNC Type 75 ohms, BiLevel, TriLevel Sync
❥ DVI-I Output Connector
DVI 29pin single link RGB (8 bit each)
Digital RGB: same timing as analog component
Analog Component: Y/Pb/Pr 75 ohms
❥ HD-SDI/SDI Output Connector (VC-300HD Only)
BNC Type Supports embedded audio
Conforms to SMPTE259M, SMPTE272M, SMPTE292M,
SMPTE299M
Audio Connectors
Input Jacks 1ch, 2ch XLR type, 20 k ohms
Input Jacks 3ch, 4ch RCA phono type, 20 k ohms
Output Jacks 1-2 XLR type, 600 ohms
Output Jacks 3-4 RCA phono type, 1 k ohms
Power Supply
AC 117 V, AC 230 V, AC 240 V (50/60 Hz)
AC 220 V (60 Hz)
Power Consumption
60 W
Dimensions
482(430 without Rack Mount Bracket) (W) x 309 (D) x 44 (H) mm
19(16-15/16 without Rack Mount Bracket) (W) x 12-3/16 (D) x 1-
3/4 (H) inches
* EIA-1U Rack Mount Size
Weight
4.5 kg
9 lbs 15 oz
Accessories
Owner's Manual
Rubber feet x 4
Power Cord
(0 dBu = 0.775 V rms)
962a
* In the interest of product improvement, the specifications and/or
appearance of this unit are subject to change without prior notice.
Note: Measurements are with the rubber feet (included) attached.
Note: The power cord is not included.

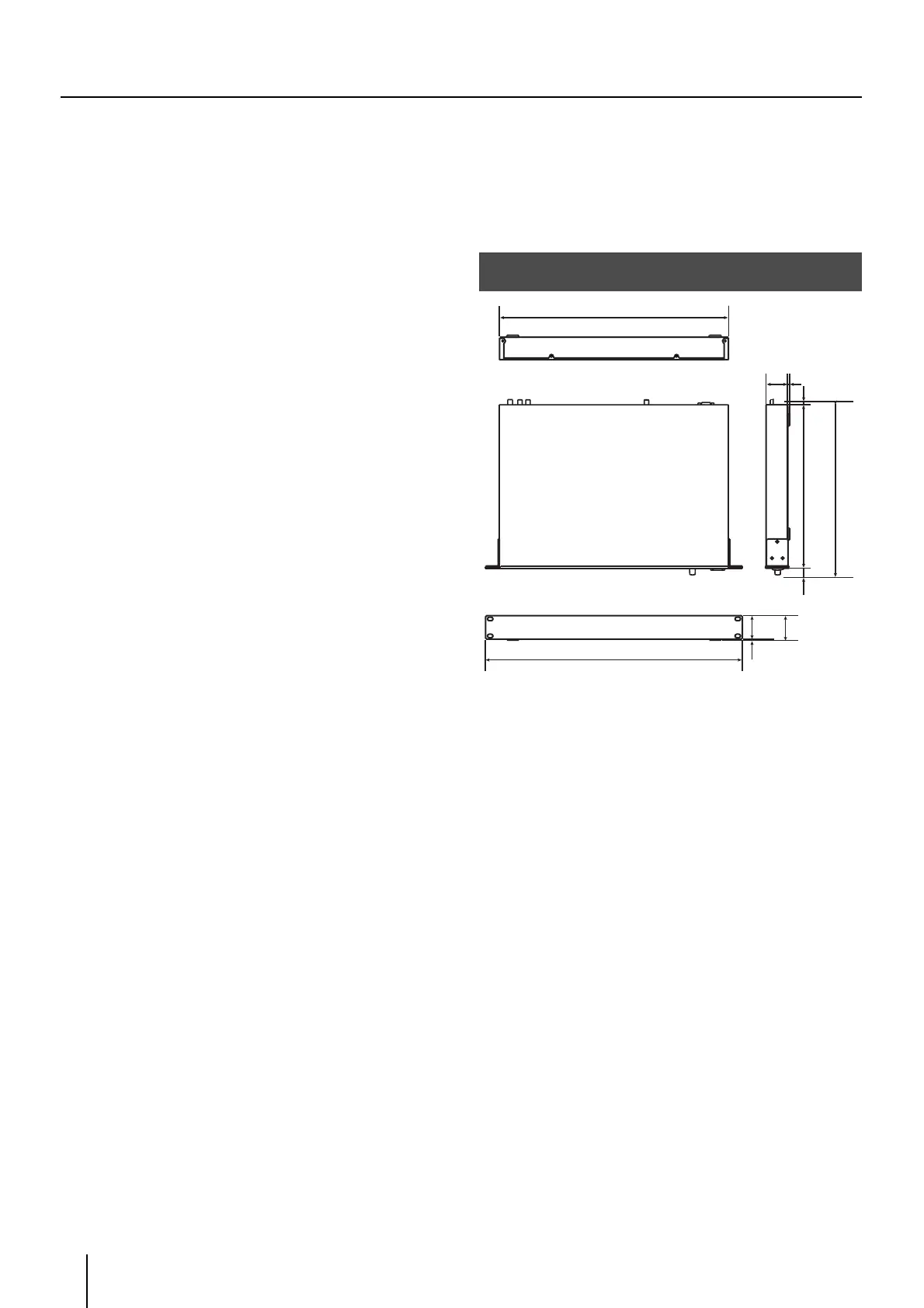

Exterior Dimensions Diagram
44.0 48
309
8
41.0 3.5
481.0
430
4
331
13
