Part Names and Functions

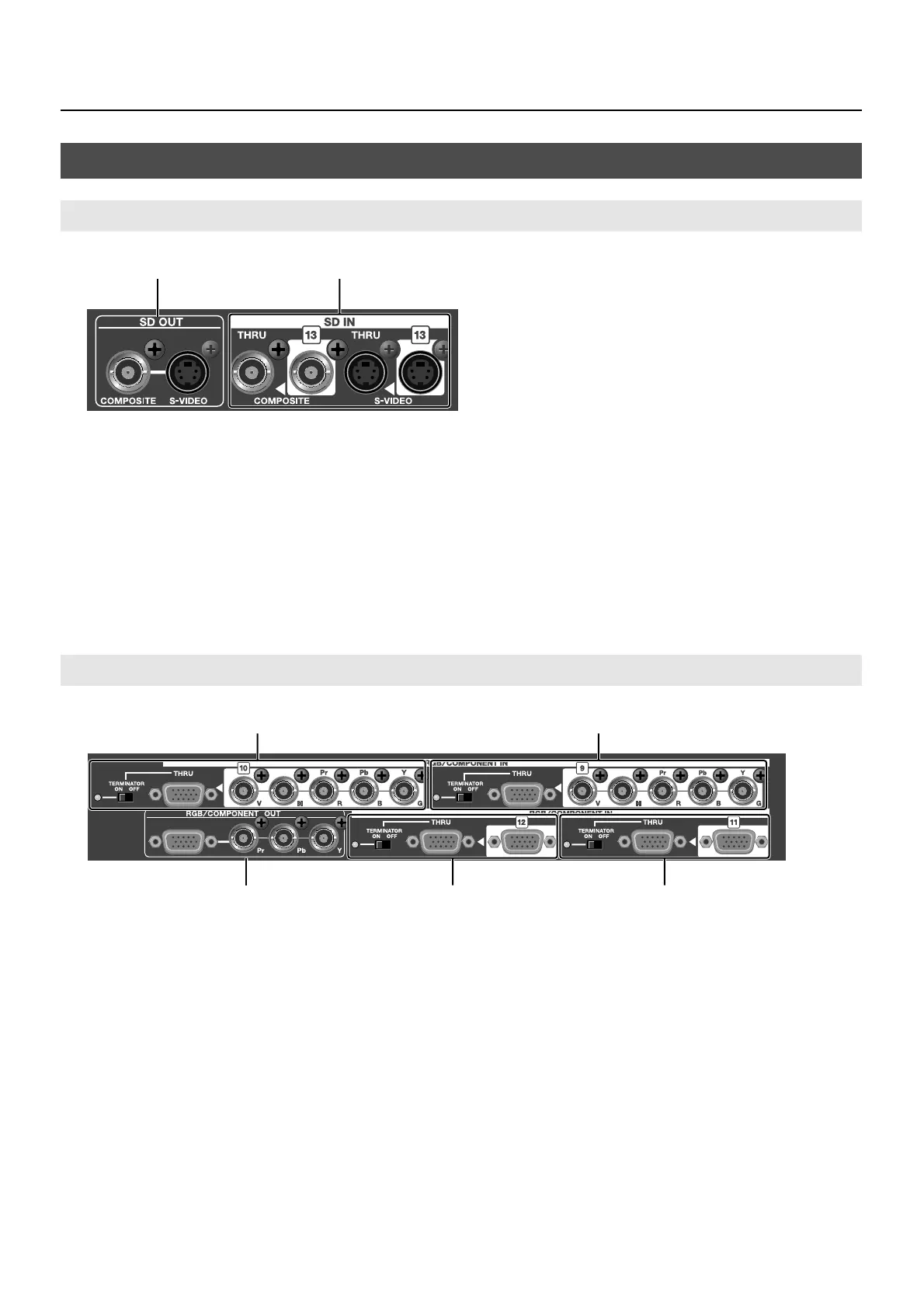

fig.SD-in-out.eps
1. SD OUT Connectors
These comprise two connectors, COMPOSITE and S-VIDEO, which output the same image. You can use the menus to select the
output point. Refer to “Menu Operations and Menu List” (p. 47)
* To output video from the SD OUT connectors, set the output format to 480i or 576i.
2. SD IN and THRU Connectors (Channel 13)
These are for input of the COMPOSITE or S-VIDEO assigned to channel 13. Each has a thru-out (THRU) connector, providing output
to an external monitor.
* By default, composite input is assigned to channel 13. You can use the menus to change the assignment for channel 13 to S-Video input. Refer
to “Connecting SD Analog Video Equipment (S-Video)” (p. 19).
fig.RGB-in-out.eps
1. RGB/COMPONENT IN and THRU Connectors (Channel 10)
These are for inputting the RGB (R/G/B/H/V) signals or analog-component (Y/Pb/Pr) signals assigned to channel 10. For thru-out
to an external monitor, make the connection to the THRU connector and set the [TERMINATOR] switch to [OFF]. To terminate at
the V-1600HD, set the switch to [ON]. When this is set to [ON], the indicator lights up.
2. RGB/COMPONENT IN and THRU Connectors (Channel 9)
The connection methods are the same as for the RGB/COMPONENT IN and THRU connectors for channel 10.
3. RGB/COMPONENT OUT Connectors
These output analog-component (Y/Pb/Pr) signals from the BNC connectors and RGB signals from the D-Sub 15-pin connector.
Output from a desired point of the V-1600HD can be sent from the RGB/COMPONENT OUT connectors. You can use the menus to
select the output point. Refer to “Menu Operations and Menu List” (p. 47).
* The same image is output from the D-Sub 15-pin connector and the BNC (Y/Pb/Pr) connectors.
Connection Sections of the Rear Panel
SD IN/OUT Section
RGB/COMPONENT IN/OUT Section
12
12
34 5
