Example of Connections and Settings
Advanced Methods of Using Pads
■ Connecting a PD-80R/PD-120 to a TRIGGER
INPUT Other Than TRIG 2
If TRIG 2 is already being used for another pad, you can still connect a PD-
80R/PD-120 to two of the TMC-6’s TRIGGER INPUTS (such as 3 and 4 or 5
and 6) with an optional cable (PCS-31) and have rim shots played as a
separate tone.
1. Make the connections shown in the figure below.

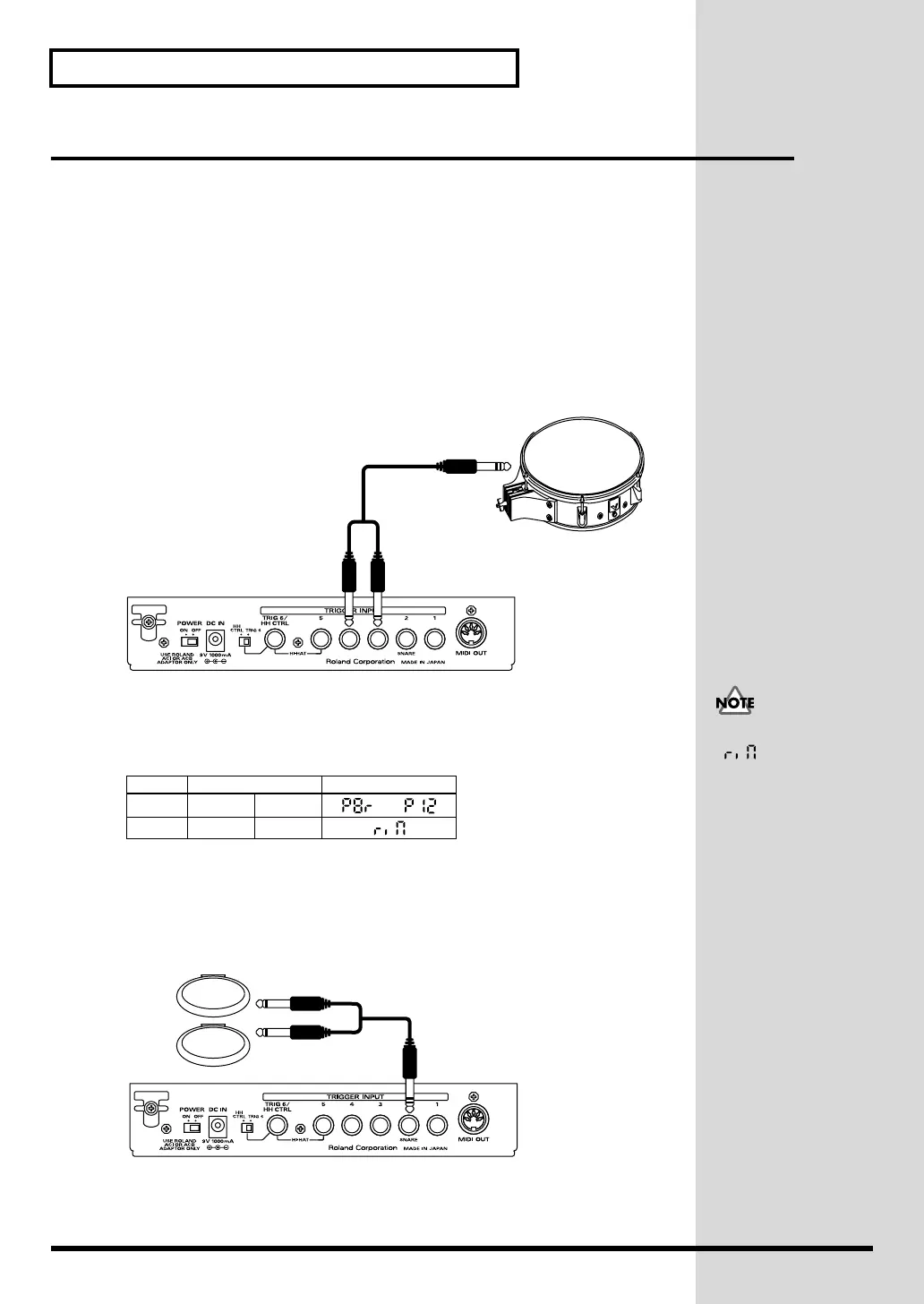

fig.05-02
In this case, the white plug tip is connected to TRIG 3 or 5 (head), and the red
plug tip is connected to TRIG 4 or 6 (rim).
2. Set the trigger type as shown below.
■ Connecting Two Pads to TRIG 2
You can connect two pads to TRIG 2 using an optional cable (PCS-31).
1. Make the connections shown in the figure below.
fig.05-03
In this case, the white plug tip is connected to TRIG 2 (head), and the red plug
tip is connected to TRIG 2 (rim).
Plug TRIGGER INPUT TRIGGER TYPE
White 3 5
or
Red 4 6
White: TRIG 3, 5Red: TRIG 4, 6
PCS-31
PD-120
If the trigger type is set to
“” when the pad is
connected via a single
cable, the sound will not
b
e played.
PCS-31
PD-6
PD-6
