8

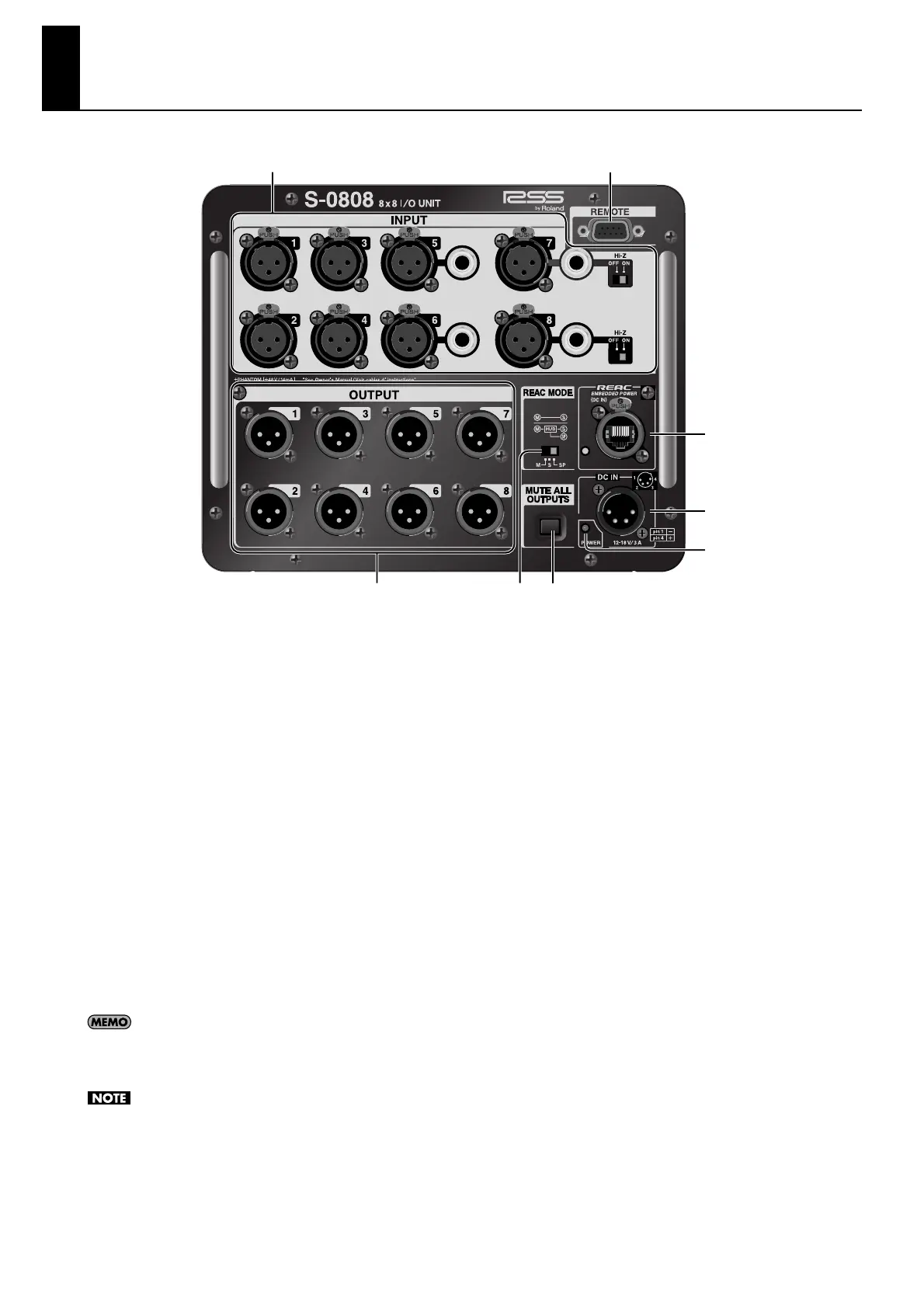

Part Names and Functions
fig.front-panel.eps
1. INPUT Connectors (p. 11)
Various input devices are connected to these. The inputs
include a variable-gain preamp that can accept signals from -
65 through +10 dBu (nominal, maximum input: +28 dBu).
INPUT 1 - 4
These are balanced female XLR connectors.
INPUT 5/6
These are balanced female XLR connectors and standard TRS
connectors. When input is made to both simultaneously, the
TRS input takes priority.
INPUT 7/8
These are balanced female XLR connectors and standard TRS
connectors. When input is made to both simultaneously, the
TRS input takes priority.
The Hi-Z switch is set to ON when receiving input from an
electric guitar or other instrument with high-impedance
output.
You can adjust preamp gain and switch phantom power on
and off by remote control from an S-4000R unit or a computer
running the dedicated remote control software (S-4000 RCS).
Because setting the Hi-Z switch to ON makes the system more
susceptible to noise, take action to counter this, such as
keeping the connector cable short.
2. REMOTE Connector (p. 22)
This is a female 9-pin D-sub connector. It is used to connect a
dedicated remote controller for digital snake devices (the S-
4000R) or a computer installed with dedicated remote-
control software (S-4000 RCS).
3. OUTPUT Connectors (p. 12)
These are balanced male XLR connectors. Amps and
powered speakers are connected here. The signal level that
is output is +4 dBu (nominal, maximum output: +22 dBu).
4. REAC MODE Switch (p. 14, p. 15, p. 16, p. 17)
This sets the S-0808’s operation mode. For the correct
operation of the system, the mode settings of REAC devices
must be made correctly. Making the wrong settings may
result in incorrect audio input and output.
• M The unit functions as a REAC master device.
• S The unit functions as a REAC slave device.
• SP The unit functions as a REAC split device.
5. MUTE ALL OUTPUTS Button
This mutes (silences) the system’s global audio output. When
the unit is muted, you can disconnect and connect input/
output or REAC cables without prooducing noise. When this
is pressed, all output is muted within a second or two.
Releasing the button cancels muting.
345
12
6
7
8
