Connecting External Equipment
Input/Output up to 48 Channels
This enables you to record/playback up to 48 channels input and output from/to a MADI device. Use two S-MADI units in this
case.
For this connection, set the REAC setting on the R-1000 to “SOUND CHECK.” Refer to “About REAC Settings” (p. 36).
* Connect REAC MAIN on the first S-MADI (the upper unit in the figure) to the R-1000’s [TO MASTER] REAC port [A]. Connect REAC MAIN on the
second S-MADI (the lower unit in the figure) to the R-1000’s [TO MASTER] REAC port [B]. If you are using the unit with the factory-default
settings unchanged, make the connections in this way.

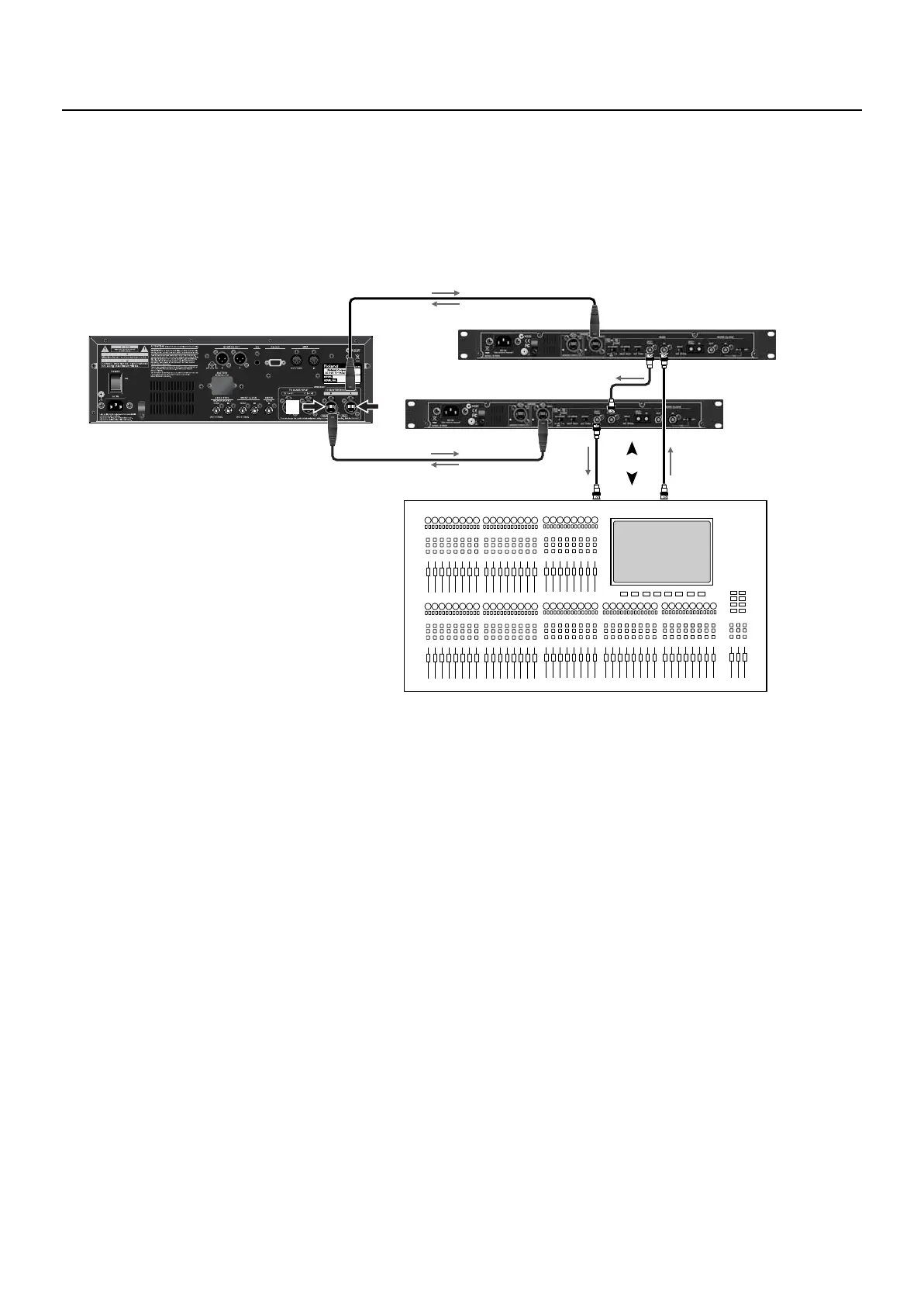

fig.double-madi.eps
Set the REAC mode on the S-MADI to “master.” For information on setting the REAC mode of the S-MADI, refer to the owner’s
manual for the S-MADI.
* Regardless if you are recording 40 channels or 48 channels, the REAC mode setting on the S-MADI is the same.
REAC Master/Slave Device
REAC Master Device
S-MADI
48ch
REAC Master Device
A
B
