EN
16
Connections

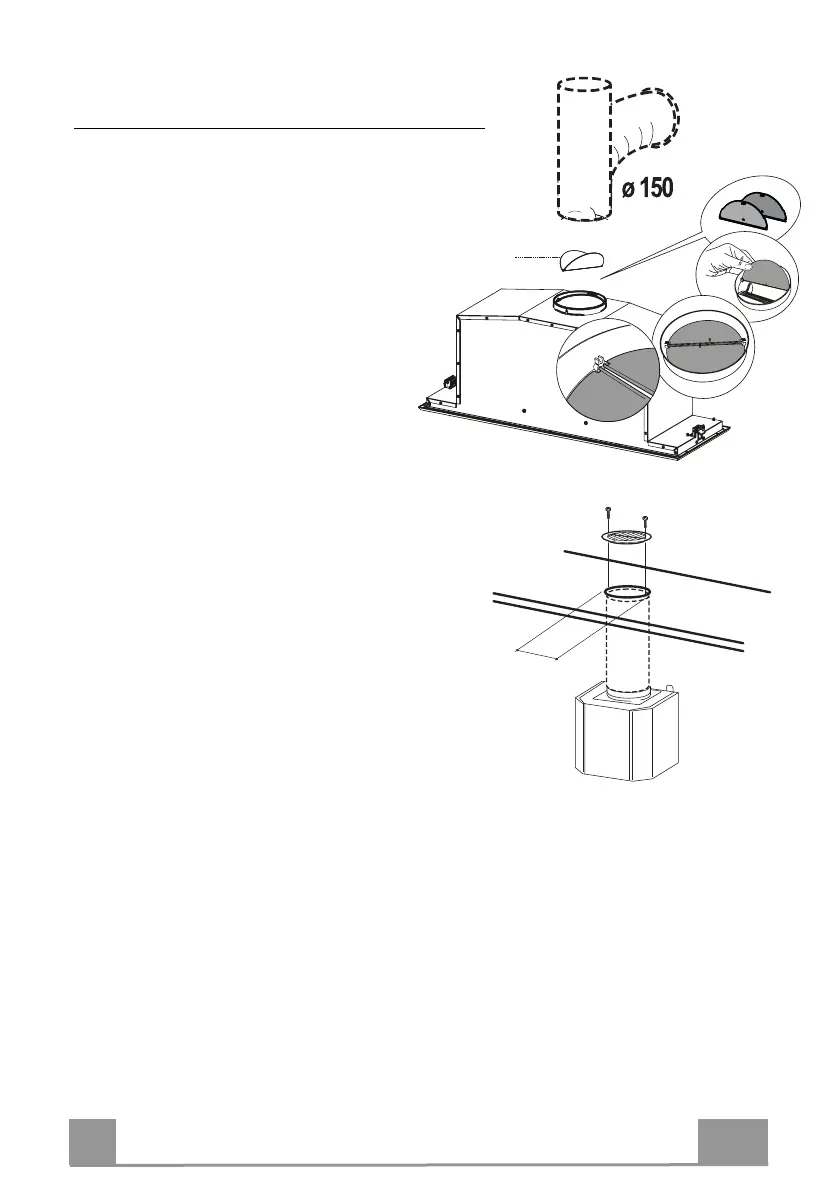

DUCTED VERSION AIR EXHAUST SYSTEM
When installing the ducted version, connect the hood to
the chimney using either a flexible or rigid
pipe ø 150 mm, the choice of which is left to the in-
staller.
• Fix the pipe in position using sufficient pipe
clamps (not supplied).
• Remove any activated charcoal filters.
RECIRCULATION VERSION AIR OUTLET
• Cut a hole ø 150 mm in the wall unit over the hood.
• C
onnect the hood body outlet to the top part of the
wall unit using a rigid or flexible pipe ø 150 mm, to
be selected by the installer.
• Fix the pipe in position using sufficient pipe clamps
(not supplied).
• Attach a not provided oriented grille to the outlet of
the recirculated air using 2.9x9.5 screws not provided.
• Ensure that the activated charcoal filters have been
inserted.
ø 150
ELECTRICAL CONNECTION
• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3
mm..
