EN
15
INSTALLATION

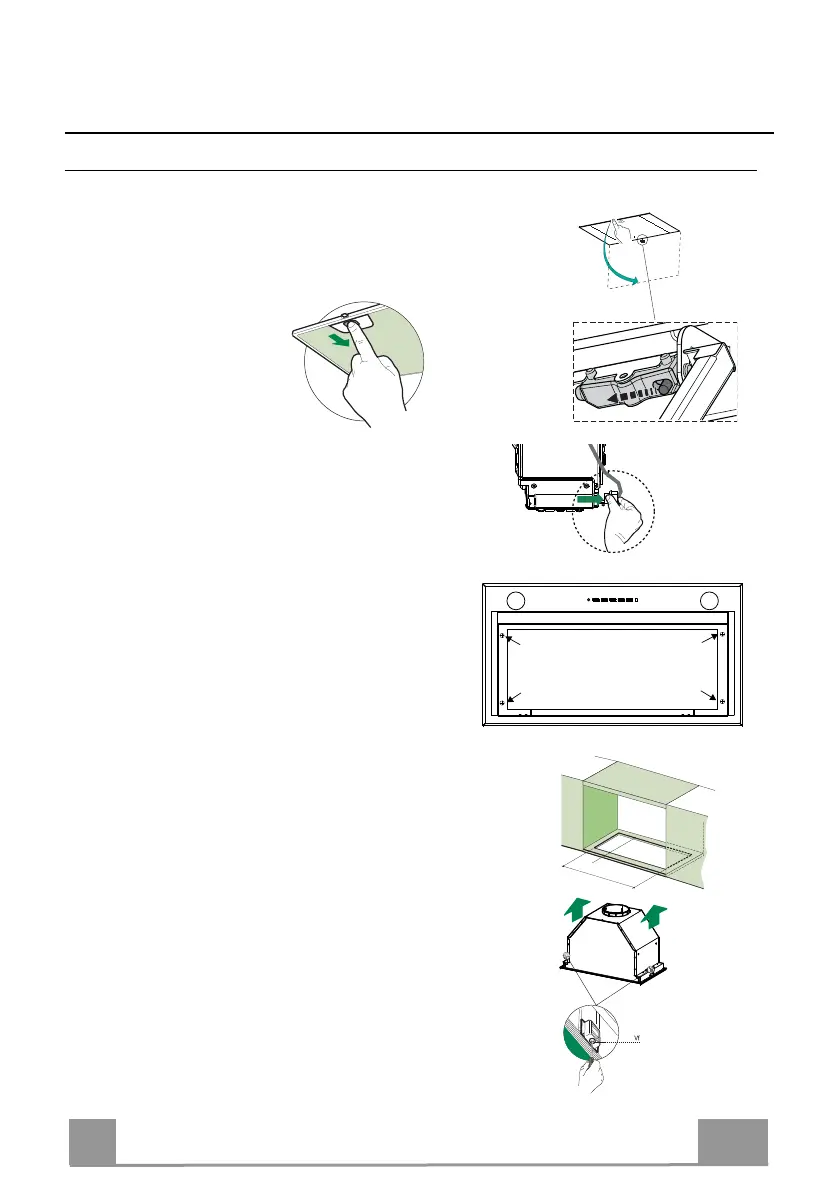

Fitting the Hood canopy
BEFORE FITTING THE HOOD TO THE WALL UNIT, PROCEED AS FOLLOWS:
• Open the Panel by pulling it.
• Remove grea
se filters.
• Disconnect the
wires to the Commands at the
connectors.
•
Remove the frame by unfastening the 4 scr
ews (2
on the right and 2 on the left).
• The Hood can be installed directly on the underside of the wall
unit (Minimum
650 mm from the Cooker Hob).
• Create an opening in the bottom of the wall unit, as shown.
• Insert the hood until the side supports snap into place.
• Lock in position by tightening the screws Vf from underneath
the hood.
• Screw the Frame back into place
using the 4 screws removed
as
described above, re-connect the wires to the Commands,
replace the metal grease filter and close the Panel.
260
25
500 - 680
