User’s Guide OctaMic II © RME
13
8. Rear Panel
8.1 Connectors
MICROPHONE / LINE INPUTS: 8 8 Neutrik XLR / TRS combo jacks. Thanks to the servo bal-
anced designs and a high maximum input level (maximum input level XLR +13 dBu, TRS +22
dBu) the inputs are universally applicable.
LINE LEVEL OUTPUTS: 8 TRS (stereo) jacks. The electronic output stage is built in a servo
balanced design, handling monaural (unbalanced) and stereo jacks (balanced) correctly.
IEC receptacle for power connection. The specially developed, internal hi-performance switch
mode power supply lets the OctaMic II operate in the range of 100V to 240V AC. It is short-circuit-
proof, has an integrated line filter, is fully regulated against voltage fluctuations, and suppresses
mains interference.
8.2 DIP Switches

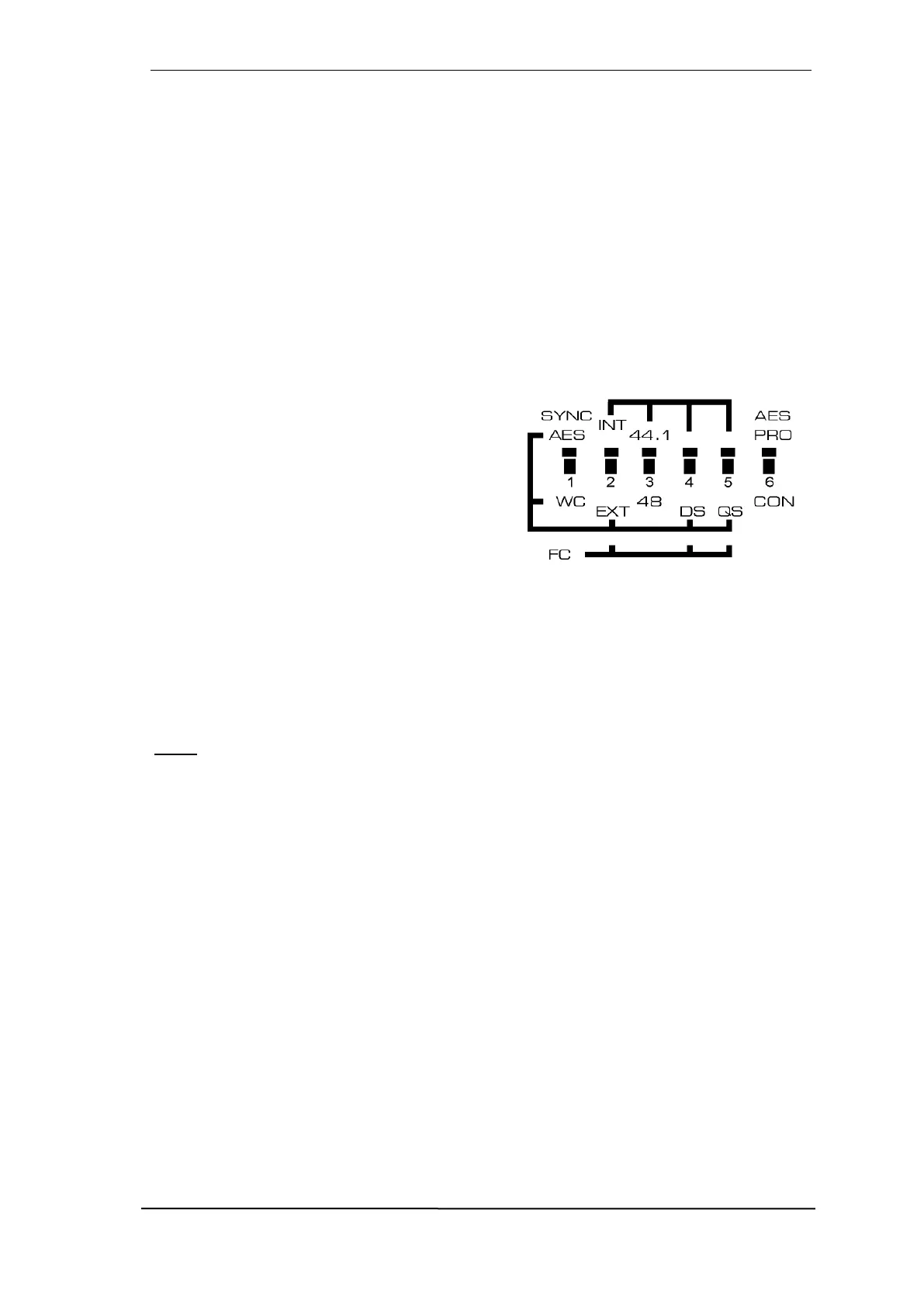

The DIP switches are used to configure the Oc-
taMic II's digital section. The following diagram,
also printed on the back of the unit, shows the
meaning of all possible switch positions.
DIP Switch Function
1 External synchronization source AES (D-sub) or word clock (BNC)
2 Clock internal (Master) or external (Slave)
3 Internal Clock 44.1 kHz or 48 kHz
4 Activates Double Speed Mode*
5 Activates Quad Speed Mode*
6 AES output state Professional or Consumer
*Note on DIP switch 4/5:
At internal clock, the switches DS and QS multiply the value set with switch 3 by a factor of 2 or
4. So if switch 3 is set to 48 kHz, switch 4 will turn it into 96 kHz, switch 5 turns it into 192 kHz.
At external clock switch 3 is of no meaning, because the unit is synchronized to the incoming
clock. However, switch 4 and 5 pre-define the frequency range to Single Speed, Double Speed
or Quad Speed. For example if the OctaMic shall operate at 176.4 or 192 kHz, switch 5 has to be
set to the lower position. The OctaMic will now generate an output signal in the Quad speed range
(176.4 or 192 kHz), even with a word clock input signal of only 44.1 kHz, or an AES input signal
of 96 kHz.
With external synchronization active (switch 2 down) and both switches 4 and 5 in lower position,
the function Follow Clock (FC) is active. In this case the OctaMic II follows the input clock 1:1. A
further configuration of the current sample rate range (Single, Double or Quad Speed) is not re-
quired.
