3.15. MADI Coaxial and SFP

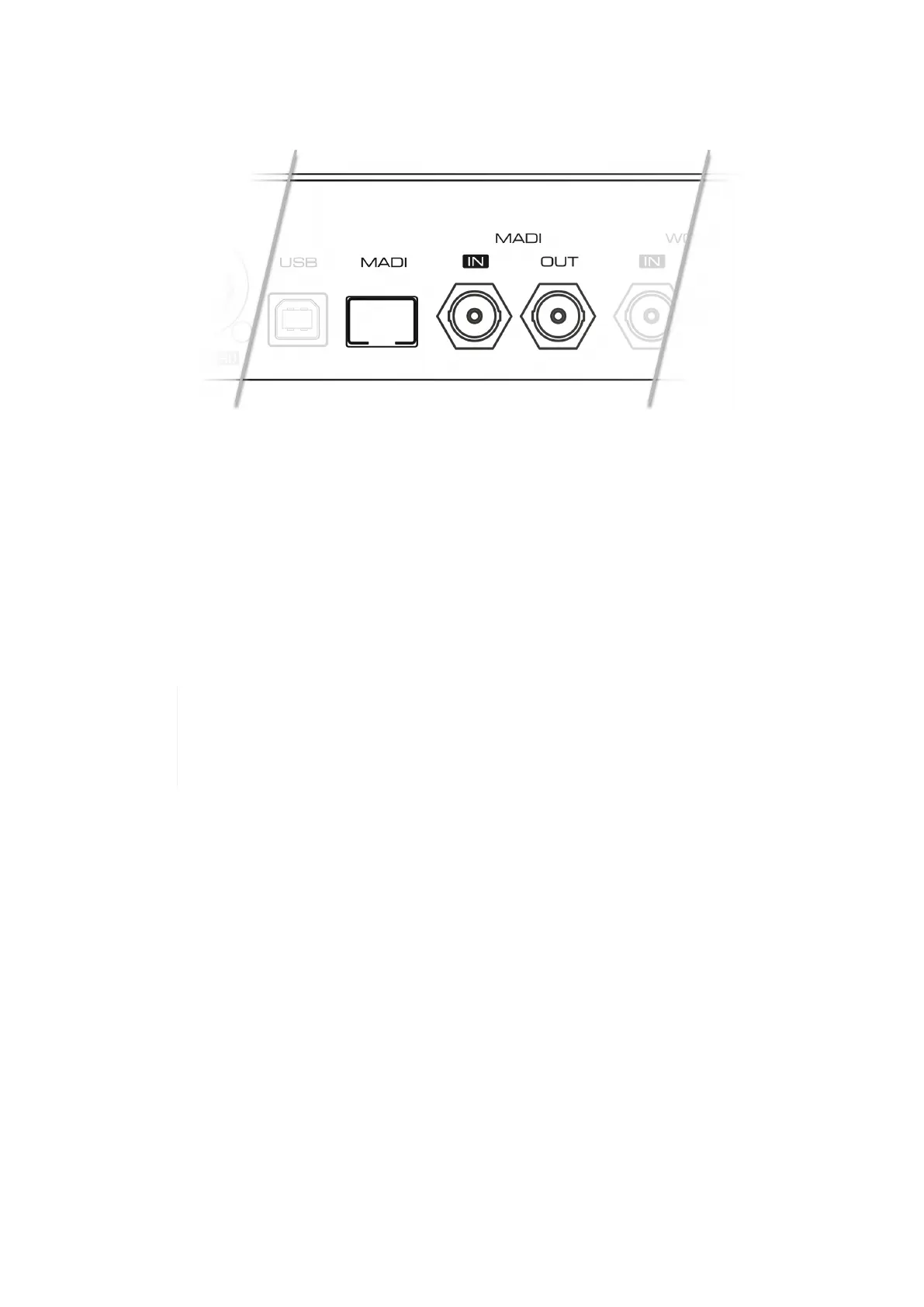

The rear of the 12Mic-D features coaxial and SFP MADI (AES10-2003) I/O.
Each input receives up to 64 audio channels. Auto Input (see Section 9.2.2, “Connecting Two
Identical MADI Signals for Redundancy”) can be activated to treat both inputs as one.
The coaxial BNC connector accepts coaxial cables with 75 Ω impedance.
The "small form-factor pluggable" connector (SFP) accepts 125 MBit/s transceivers with LC
connectors, 1310mm wavelength and multi-mode (MM) or single-mode (SM) cable support. These
must be purchased separately (see Section 4, “Accessories”).
An SFP module has indicators to distinguish transmitter (▼) and receiver (▲). It can be inserted and
removed while the device is powered on (hot plugging). Any plugged in connector must be removed
before unlocking the SFP. Unlock and remove by pulling its integrated wire latch outward.
The wire latch of the SFP module is color coded. Black stands for the most common
multimode module, blue stands for single mode which allows longer distance
transmissions. It is possible, but not reliable to connect single mode transceivers with
multi mode transceivers. Avoid this by always confirming that connected devices
match the specification of the fiber optic cable.
On the device, the characteristics and state of the signal at either input can be inspected in the INPUT
section.
The presence or loss of a signal at either port is indicated on the standby screen and main menu if
• the input port is selected as clock master, or
• its audio channels are routed in the OUTPUT section.
When using the web remote, the characteristics and state of the signal at either input can be
inspected in the CLOCK section.
RME 12Mic-D User’s Guide
3.15. MADI Coaxial and SFP | 18
