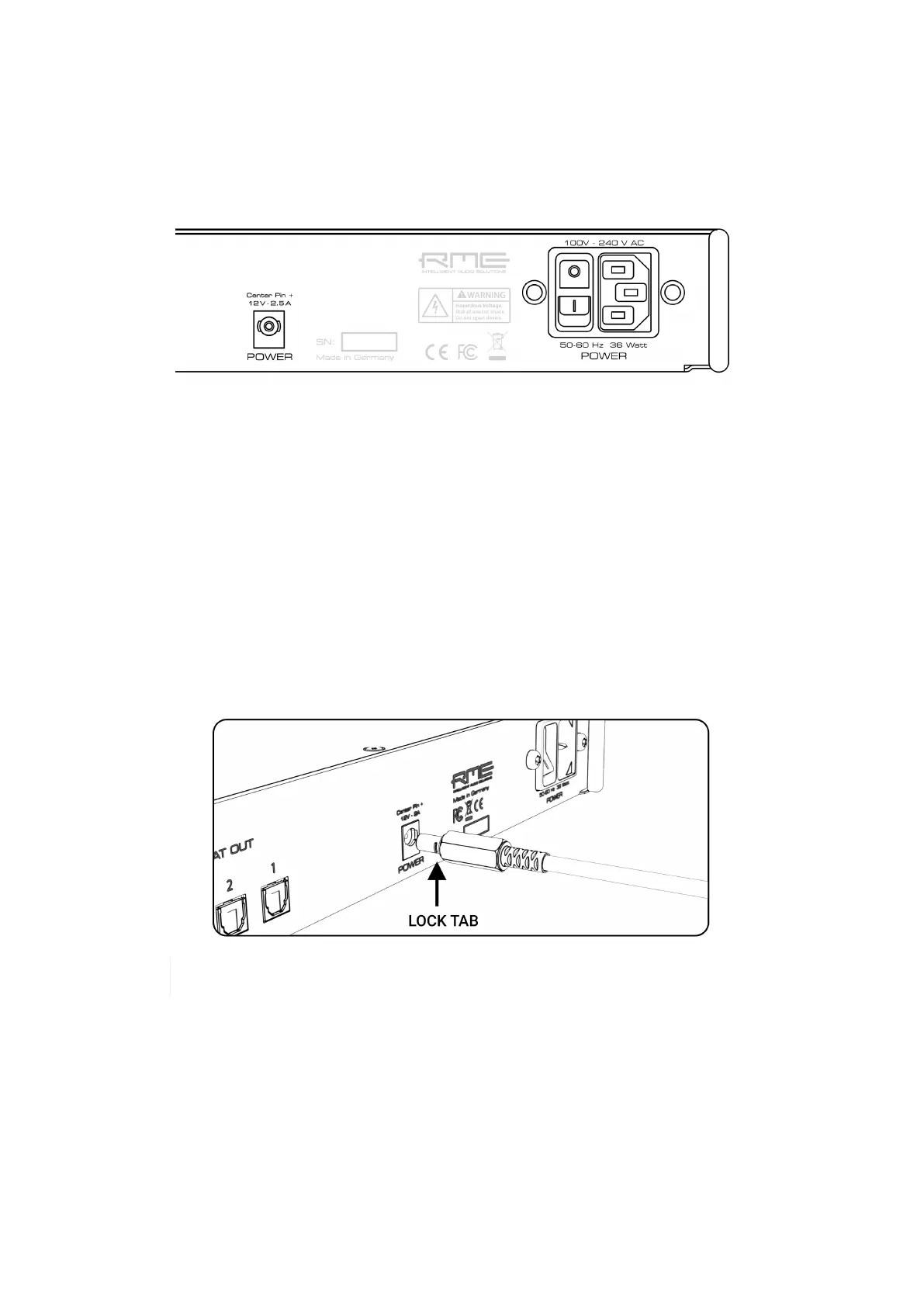

3.14. Power supply
The 12Mic-D has an internal power supply (PSU) that is connected via an IEC C14 inlet labeled "PSU"
at the rear of the device. It is a high performance switch mode power supply that accepts 100V to
240V AC. It is short-circuit-proof, has an integrated line-filter, is fully regulated against voltage
fluctuations, and suppresses mains interference.
The power switch next to the inlet internally disconnects the line and neutral connection to the
internal power supply. Ground will remain connected.
12 V DC inlet
An optional external power supply can be connected instead of - or in addition to - the internal power
supply. Redundancy is established when both inlets are connected to a power source. Additionally,
both inlets are internally monitored. The 12Mic-D can warn when one of the inlets receives no power.
The power supply must be capable of delivering 2.5 A at 12 V DC and connect with a type A (IEC
60130-10) plug (5.5 mm outer diameter, 2.1 mm inner diameter, positive polarity, optional lock tab).
Insert the connector fully with the lock tabs facing sideways, then gently turn 30 degrees clockwise to
secure the connector in place. Reverse this process to unlock and unplug the connector.
Do not push and turn the connector at the same time as this may damage the DC
socket.
RME 12Mic-D User’s Guide
3.14. Power supply | 17
