11
ASSEMBLY
ADJUSTMENTS
ADJUSTING THE TOOL REST
The tool rest base can be easily moved along the
lathe bed to position it along the length of your
work piece, and also adjusted in or out to set the
tool rest close to the work for turning. Loosen the
tool rest base locking lever counterclockwise,
slide tool rest base to a new position, and then
re-tighten the base’s locking lever, clockwise.
To adjust the height of the tool rest, loosen the
tool rest locking lever, raise or lower tool rest,
then re-tighten the rest’s locking lever. FIG. 10.
Note: Position the tool rest as close to the work
piece as possible. It should be 1/8” above the
center line of the work piece.
INSTALLING A FACEPLATE
The 70-105 lathe is designed with pen turning
in mind, and DOES NOT include a faceplate
which is used for mounting wood for the making
of plates, dishes, small trays and bowls up to 10”
diameter. Faceplates with 1”x8 TPI threading are
available separately. To mount on your lathe:
1. Securely mount your wood onto the faceplate
with wood screws. The work piece should be
“rough cut” as close as possible to the nished
round shape before mounting.
2. Thread the faceplate clockwise onto the
headstock spindle. FIG. 9.
3. Secure the faceplate in place onto the spindle
with a hex wrench, and/or an open end wrench,
pending the fastening design of faceplate used.
4. Set the tool rest to the proper position and
height for turning the wood. See page 14 for
recommended RPM speeds for working different
diameters. Set the lathe speeds accordingly - see
page 12 for instructions on the process.

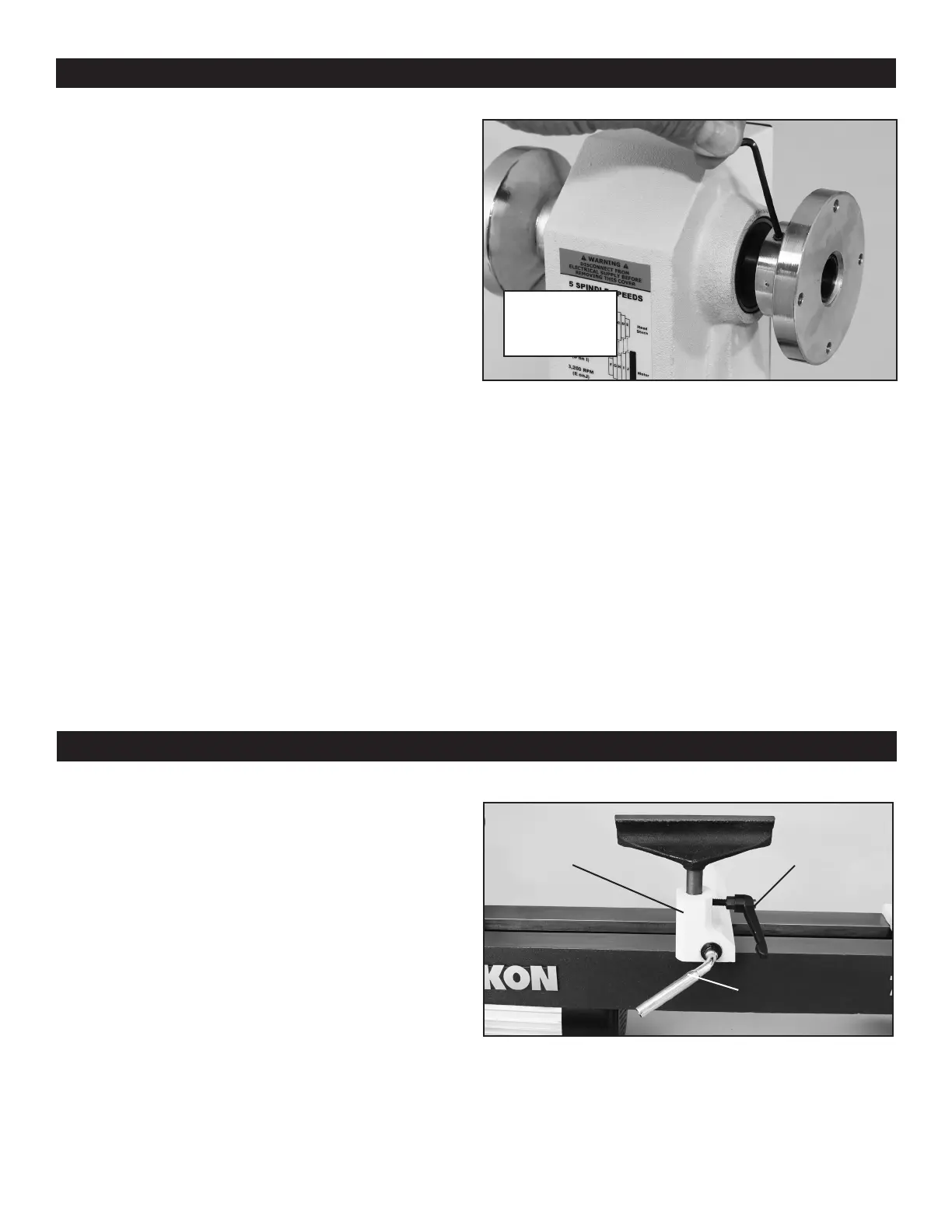

FIG. 9
FIG. 10
NOTE: To adjust the clamping action of the tool
rest base, or the tailstock, adjust the locking nut -
turn it clockwise to tighten, and counterclockwise
to loosen. See FIG. 2 and instructions on page 9.
Visit RIKON’s website at www.rikontools.com for a
list of accessories for use with wood lathes.
5. After completing your turning, remove the face-
plate from the headstock spindle by reversing
steps 2-3.
6. Once the faceplate has been removed from
the lathe, the nished turned work can be re-
moved from the faceplate by removing the
fastening screws. The holes in the rear of your
work can be lled or plugged for best appearance.
Faceplates
Available
Separately
Tool Rest
Locking
Lever
Tool
Rest
Base
Tool Rest Base
Locking Lever
