fingers together, as shown in the figure below. With the pinch&stretch gesture, you
can perform the following operation:
• Pinching&stretching in the horizontal direction can adjust the horizontal time
base of the waveform.
• Pinching&stretching in the vertical direction can adjust the vertical scale of the
waveform.

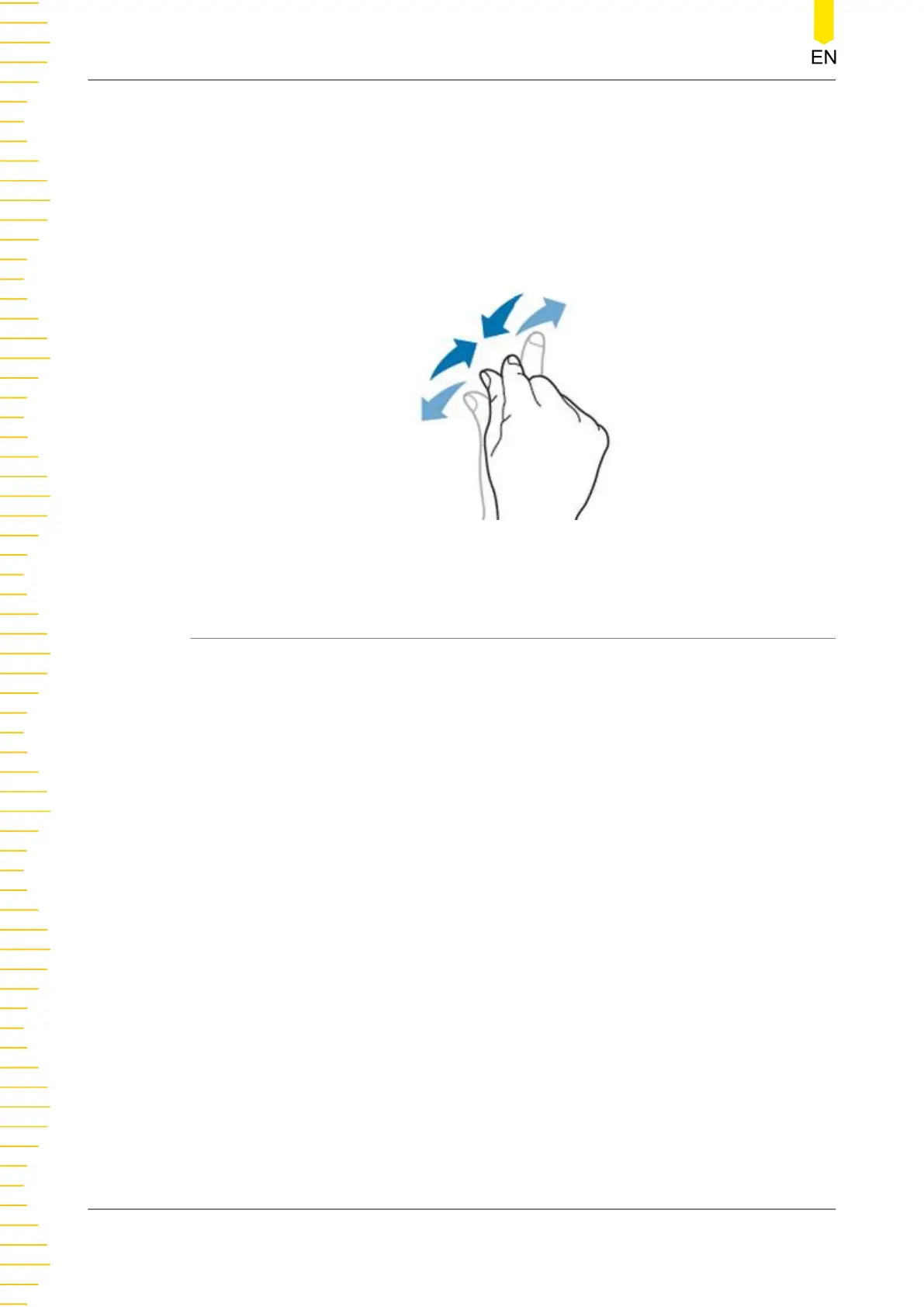

Figure 4.19 Pinch&Stretch Gesture
4.6.3 Drag
Use one finger to select the object, and then drag the object to a destination place, as
shown in the figure below. With the drag gesture, you can perform the following
operation:
• Drag the waveform to change its position or scale.
• Drag the window controls to change the position of the window (e.g. numeric
keypad).
• Drag the cursor to move the cursor.
• Drag the trigger cursor to change the trigger level.
• In multi-window display, drag one of the displayed windows to change its
position on the display.
Quick Start
MHO2000 User Guide
34
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
