Play Mode
Back to
Start Frame
Back to End
Frame
Previous Frame Last Frame
Play
Play Sequence
Start
Frame
End
Frame
Time Interval

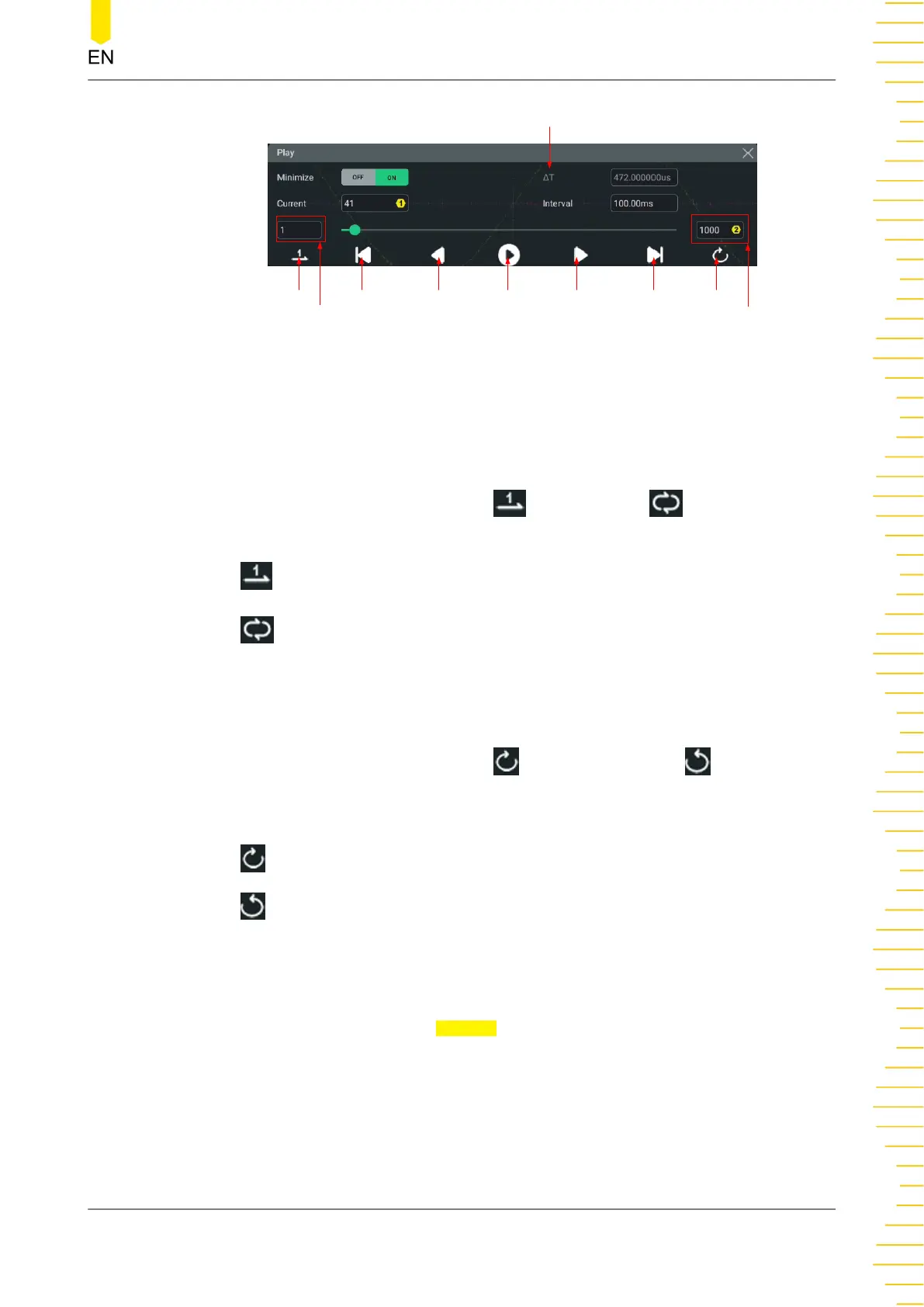

Figure 21.2 Minimized Window of Play Operation Interface
Before playing the waveforms, set the following parameters.
1. Play Mode
Plays the waveforms in single mode (
) or cycle mode ( ). Click or tap the
first icon at the bottom of the Play option menu to switch the play mode.
-
: plays from the start frame to the end frame, and then stops automatically.
- : plays from the start frame to the end frame, then such playback operation
is repeated until you stop it manually.
2. Playback Sequence
Plays back the waveforms clockwise ( ) or counterclockwise ( ). Click or tap
the last icon at the bottom of the Play option menu to switch the playback
sequence.
-
: plays from the start frame to the end frame.
- : plays from the end frame to the start frame.
3. Interval
Indicates the time interval between the frames during the playing process.
Click or tap the input field of
Interval to set the interval between frames with the
pop-up numeric keypad. You can also rotate the specified multifunction knob
indicated in the input field to set the value. The available range is from 1 ms to 1 s.
4. Start Frame
Click or tap the input field of "Start Frame" shown in
Figure 21.2
to set the start
frame to be played back with the pop-up numeric keypad. You can also rotate the
Waveform Recording and Playing
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
259
