• When the source is set to an analog channel, you can set the threshold for the
specified channel with the pop-up numeric keypad. You can also use the
specified multifunction knob to set the threshold.
When you modify the threshold, a dotted line displaying the current threshold
level is displayed on the screen. It disappears in about 2 s after you stop
modifying the threshold.
Select the Signal
Click or tap "A" or "B" in
Channel to select a channel that matches the actual FlexRay
bus signal.
Specify the Signal Rate
Click or tap the drop-down button of Baud to select a FlexRay baud rate that matches
the FlexRay bus signal. The available baud rates include "2.5 Mbps", "5 Mbps", and
"10 Mbps".
Set the Signal Type
Click or tap the drop-down button of Signal to select a signal type that matches the
actual FlexRay bus signal. The available signal types include "BP", "BM", and "RX/
TX".
Sample Position
Sample position is a point within a bit’s time. The oscilloscope samples the bit level
at this point. The sample position is represented by the proportion of "the time from
the start of the bit to the sample point" to the "bit time", as shown in the figure
below.
One Bit
60%
70%
80%

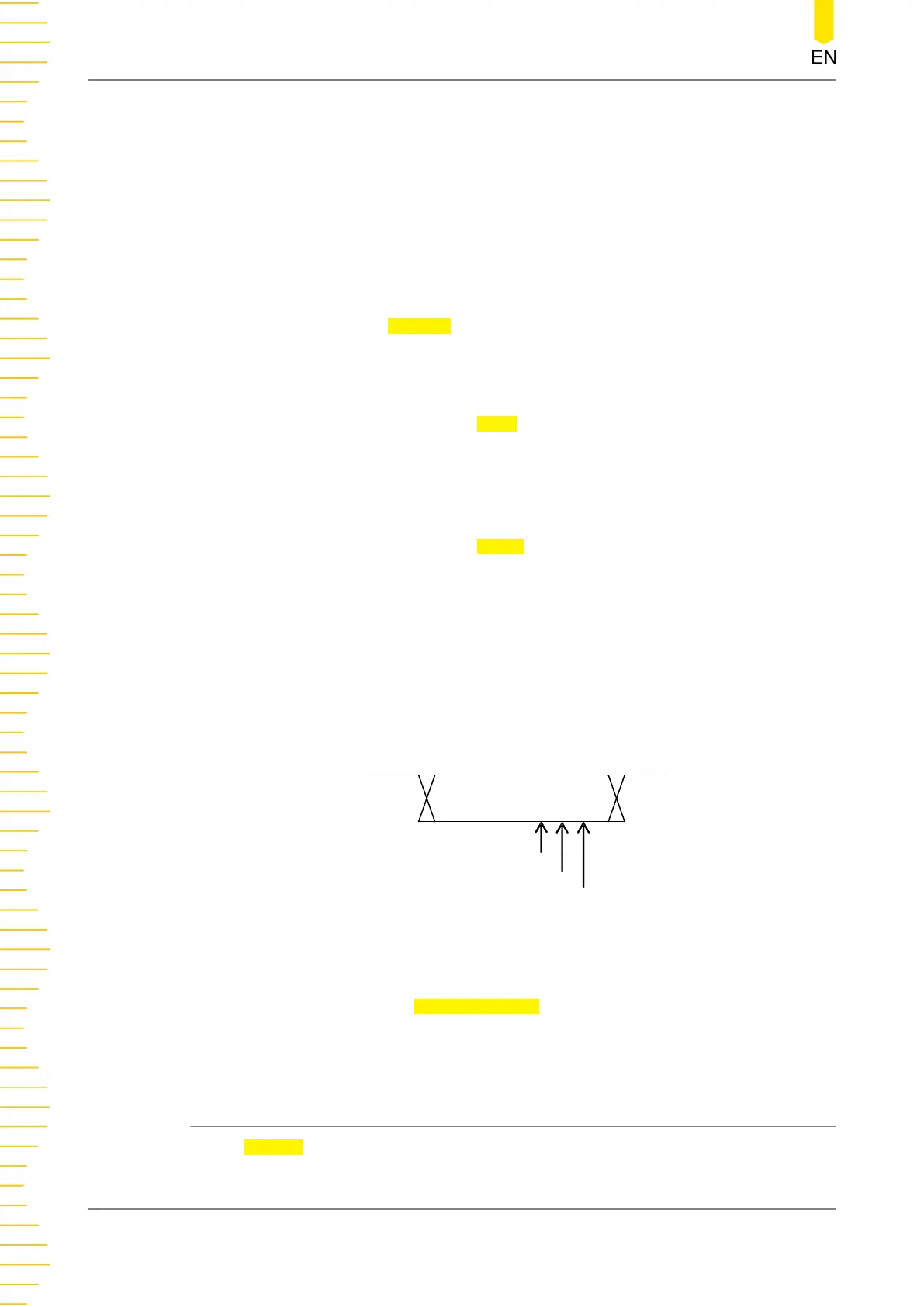

Figure 19.21 Sample Position
Click or tap the input field of Sample Position to set the sample position of the
FlexRay decoding with the pop-up numeric keypad. You can also use the specified
knob to set it. The settable range is from 10% to 90%.
19.8.2 Display-related Setting
In the Decode menu, set the following display-related parameters.
Protocol Decoding
MHO2000 User Guide
248
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
