Click or tap Export to enter the file export interface. You can export the data list to
the internal memory or the external USB storage device (when detected) in "*.csv"
format. The detailed export operation is similar to the save operation, you can refer to
relevant descriptions in
To Store and Load
.
19.8 FlexRay Decoding (Option)
FlexRay is a type of differential serial bus configured with three consecutive segments
(i.e. packet header, payload, and packet trailer). The oscilloscope samples the FlexRay
signal at the specified sample position and judges each data point as logic "1" or
logic "0" according to the preset threshold level. The FlexRay decoding is required to
specify the signal type and baud rate.
In the
Decode menu, click or tap the drop-down button of Bus Type to select
FlexRay, then configure the parameters for FlexRay decoding.

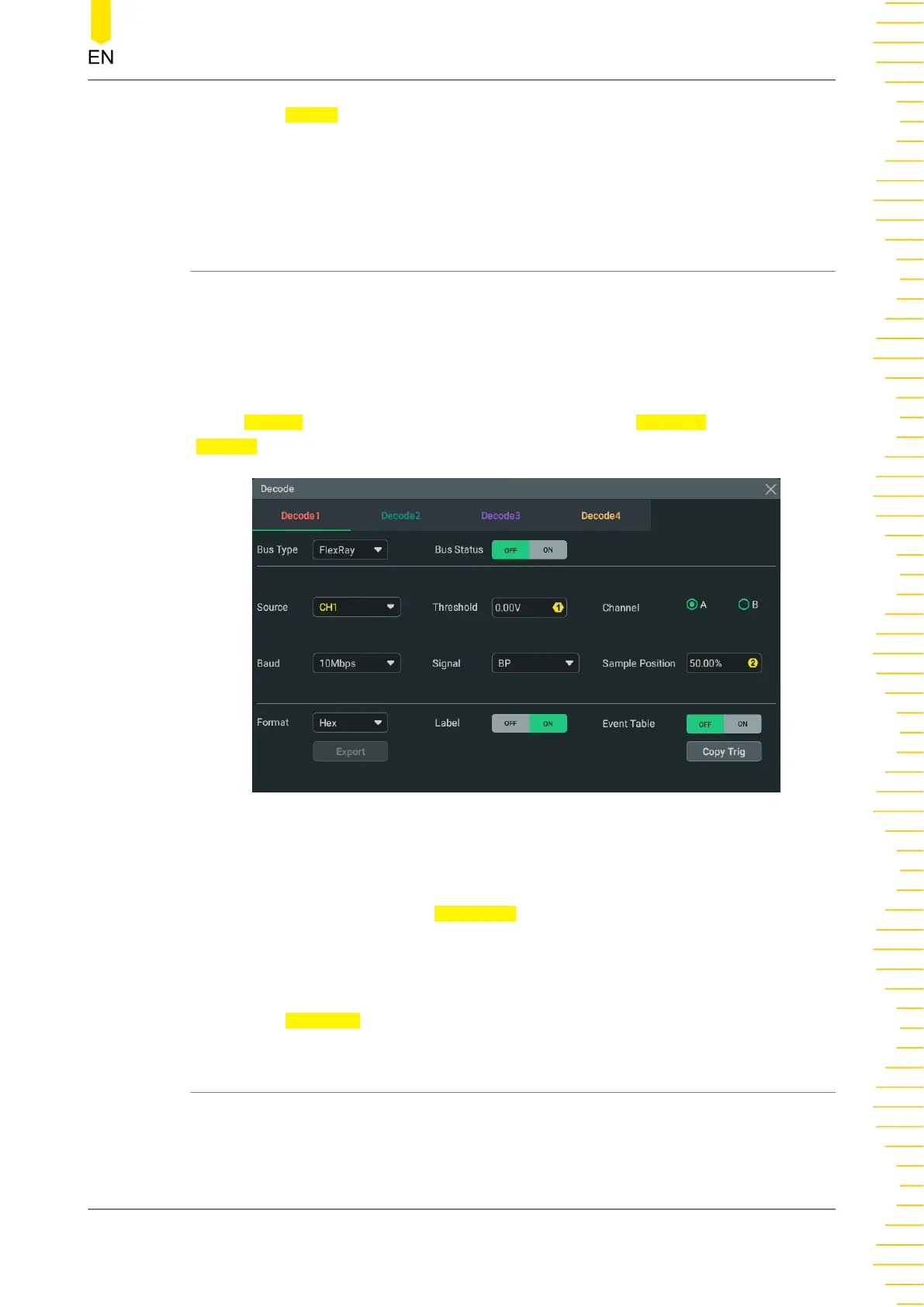

Figure 19.20 FlexRay Decoding Menu
Bus Status
Click or tap the ON/OFF tab for Bus Status to enable or disable the bus decoding.
Quickly Apply Trigger Settings to Decoding
Copy trig indicates applying the trigger settings to the specified decoding setting.
Click or tap
Copy Trig to apply the trigger settings to the specified decoding setting.
19.8.1 Signal Configuration
Set the Source and the Threshold
• You can select the analog channel or the digital channel as the source.
Protocol Decoding
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
247
