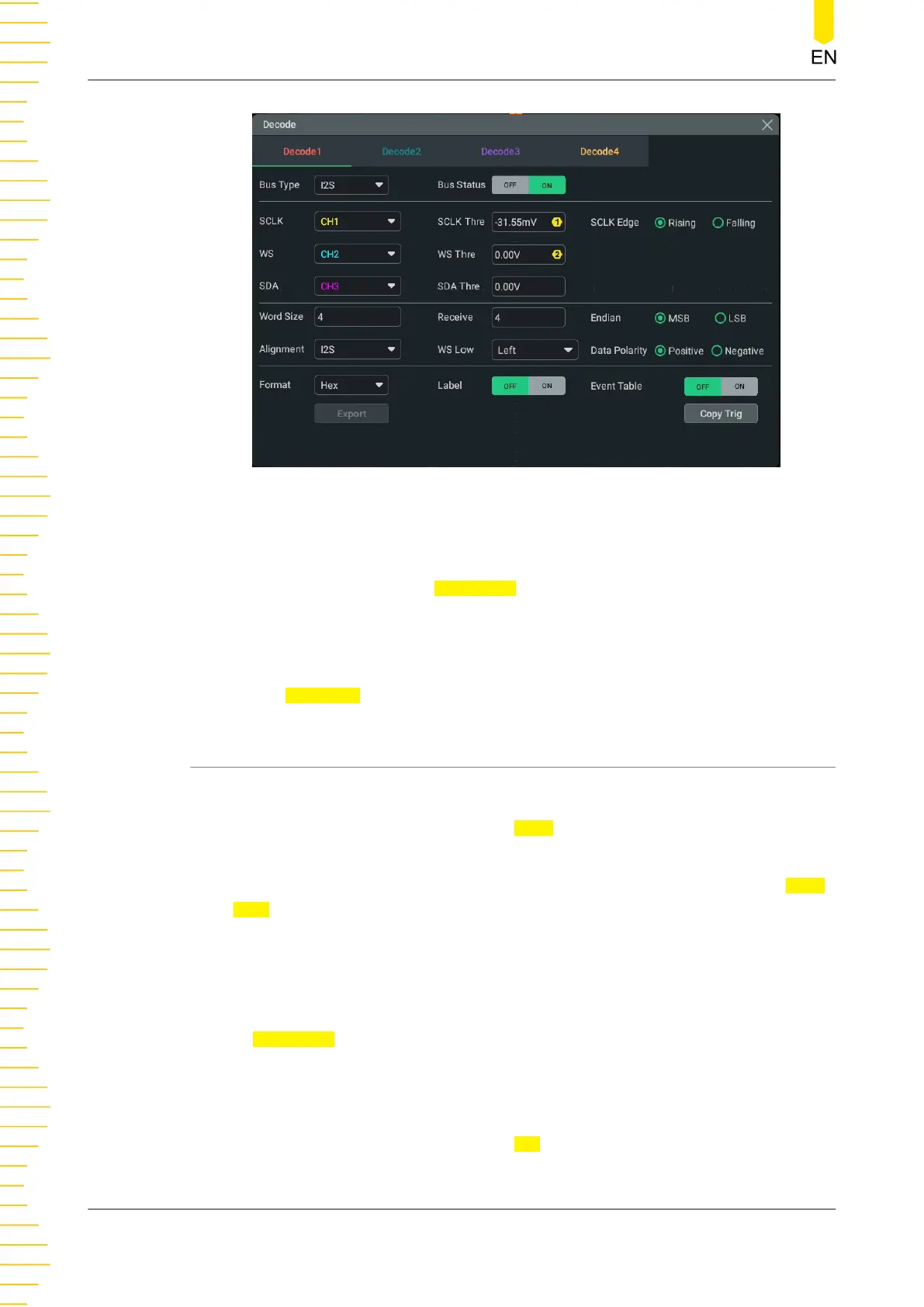

Figure 19.18 I2S Decoding Menu
Bus Status
Click or tap the ON/OFF tab for Bus Status to enable or disable the bus decoding.
Quickly Apply Trigger Settings to Decoding
Copy trig indicates applying the trigger settings to the specified decoding setting.
Click or tap
Copy Trig to apply the trigger settings to the specified decoding setting.
19.7.1 Source Setting
Set the SCLK Source and Threshold
• Click or tap the drop-down button of SCLK to select the analog channel or the
digital channel as the desired serial clock source.
• When the source is set to an analog channel, click or tap the input field of SCLK
Thre to set the SCLK threshold with the pop-up numeric keypad. You can also
use the specified multifunction knob to set the threshold. When you modify the
threshold of the clock channel, a dotted line displaying the current threshold
level is displayed on the screen. It disappears in about 2 s after you stop
modifying the threshold.
• In
SCLK Edge menu, click or tap to select "Rising" or "Falling" as the desired
clock edge.
Set the WS Source and Threshold
• Click or tap the drop-down button of WS to select the analog channel or the
digital channel as the desired WS source.
Protocol Decoding
MHO2000 User Guide
244
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
