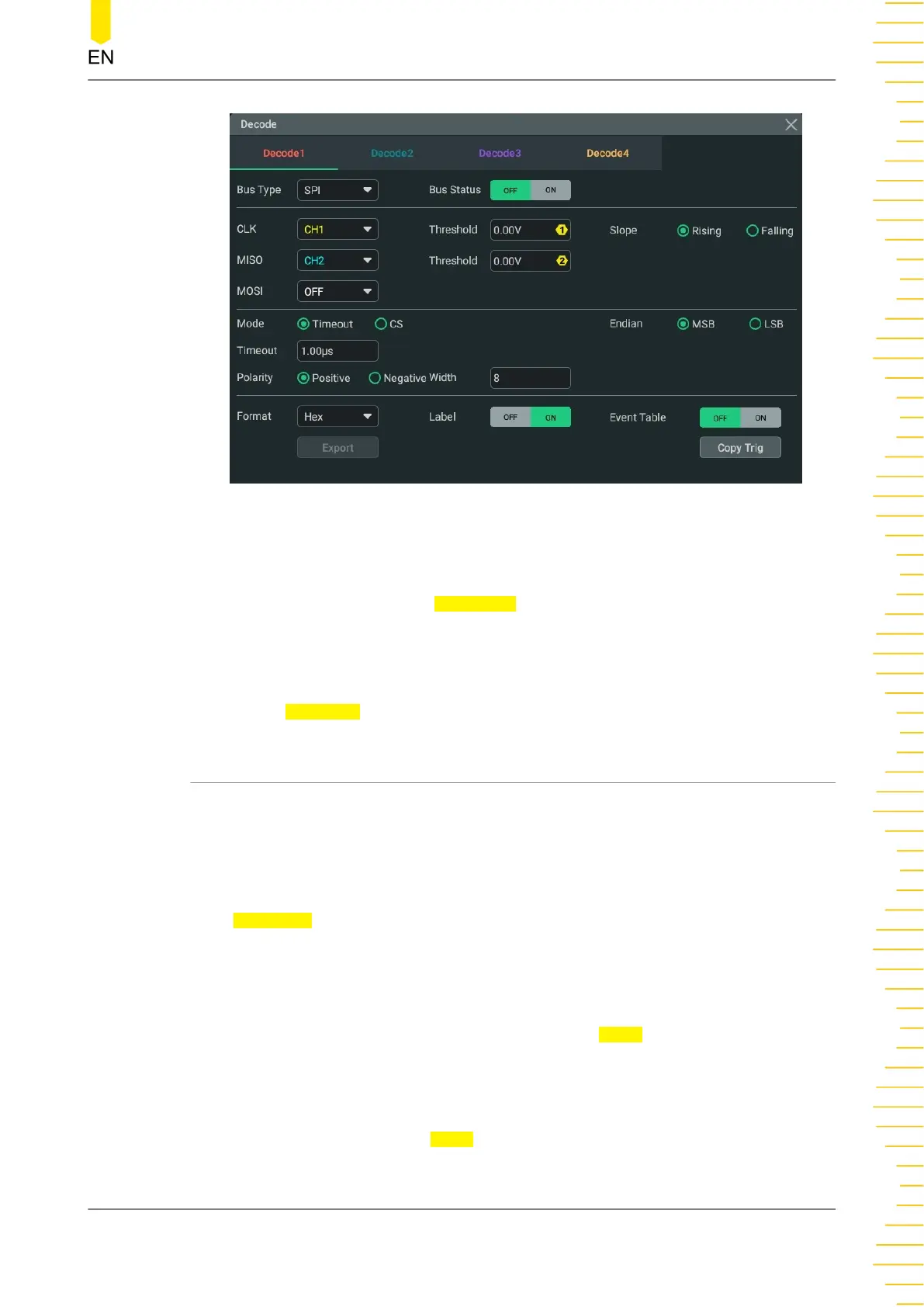

Figure 19.11 SPI Decoding Menu
Bus Status
Click or tap the ON/OFF tab for
Bus Status to enable or disable the bus decoding.
Quickly Apply Trigger Settings to Decoding
Copy trig indicates applying the trigger settings to the specified decoding setting.
Click or tap
Copy Trig to apply the trigger settings to the specified decoding setting.
19.4.1 To Set the Source
Set the Clock Signal
• You can select the analog channel or the digital channel as the clock signal.
• When the source is set to an analog channel, click or tap the input field of
Threshold to set the threshold for the specified channel with the pop-up
numeric keypad. You can also use the specified multifunction knob to set the
threshold.
• Click or tap to select "Rising" or "Falling" under Slope to set the instrument to
sample MISO and MOSI on the rising or falling edge of the clock signal.
Set MISO and MOSI
• The available channels for MISO include analog channels, digital channels, and
OFF.
Protocol Decoding
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
233
