• Stop Bit: indicates when to stop outputting data.
In the Decode menu, click or tap the drop-down button of Bus Type to select RS232,
then configure the parameters for RS232 decoding.

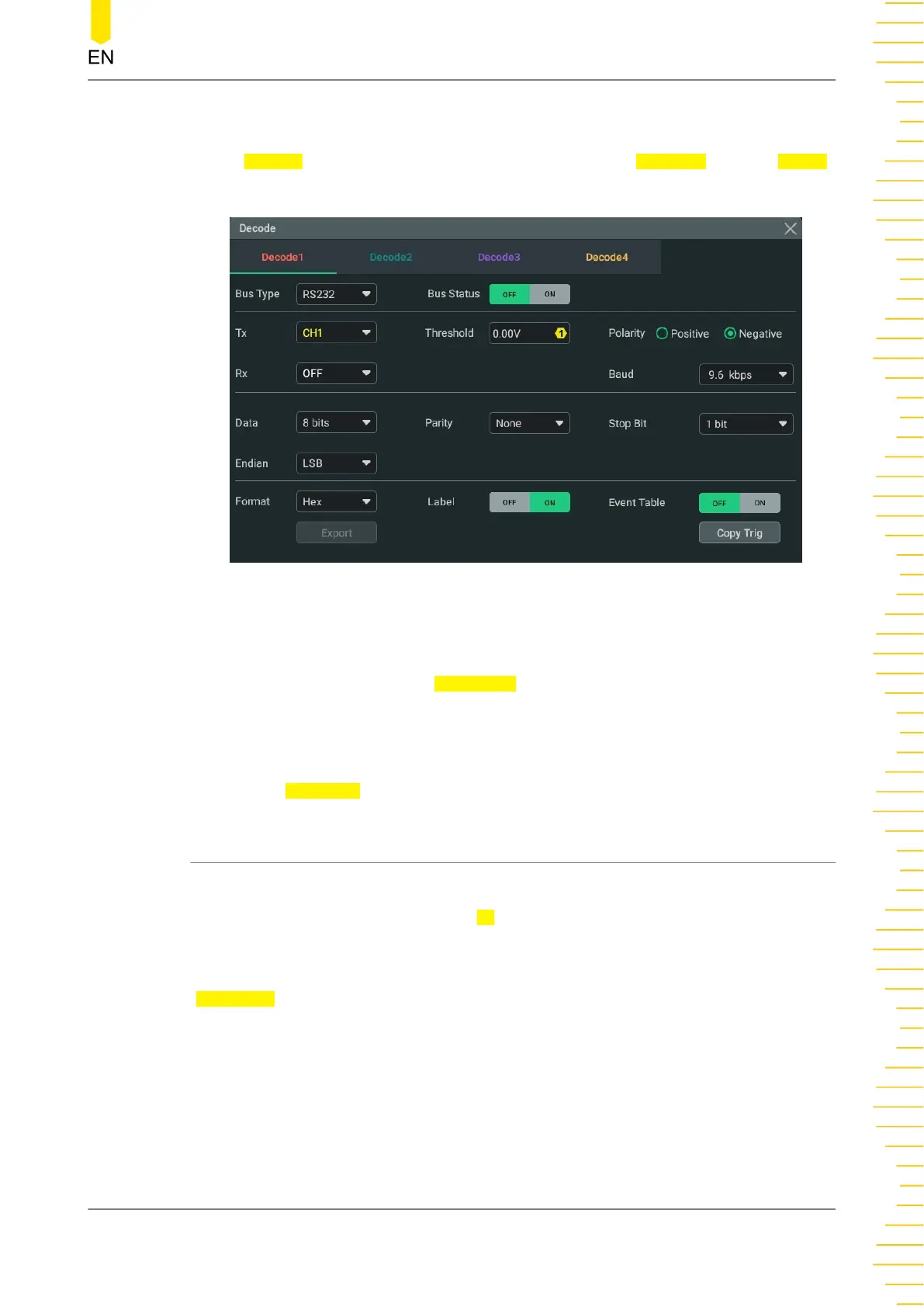

Figure 19.5 RS232 Decoding Menu
Bus Status
Click or tap the ON/OFF tab for Bus Status to enable or disable the bus decoding.
Quickly Apply Trigger Settings to Decoding
Copy trig indicates applying the trigger settings to the specified decoding setting.
Click or tap
Copy Trig to apply the trigger settings to the specified decoding setting.
19.2.1 Source Setting
Set the Tx Source and the Threshold
Click or tap the drop-down button of Tx to select the desired source. The available
sources include analog channels, digital channels, and OFF.
When the Tx source is set to an analog channel, click or tap the input field of
Threshold to set the threshold of Tx source with the pop-up numeric keypad. You can
also use the specified knob to set it. The range of the threshold is related to the
current vertical scale and offset.
When you modify the threshold of the Tx source channel, a dotted line displaying the
current threshold level is displayed on the screen. It disappears in about 2 s after you
stop modifying the threshold.
Protocol Decoding
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
225
