• The displayed decoded data information in the bus is related to the value of the
horizontal time base. Reducing the horizontal time base can help you view the detailed
information.
Set the Event Table Format
Click or tap the drop-down button of Format to select the display format of the event
table. The available formats include "Hex", "Dec", "Bin", and "ASCII".
Export
When the operating status of the instrument is STOP, you can export the time and
corresponding decoding data from the current event table.
Click or tap Export to enter the file export interface. You can export the data list to
the internal memory or the external USB storage device (when detected) in "*.csv"
format. The detailed export operation is similar to the save operation, you can refer to
relevant descriptions in
To Store and Load
.
19.2 RS232 Decoding
RS232 serial bus consists of the transmitting data line (TX) and the receiving data line
(RX).

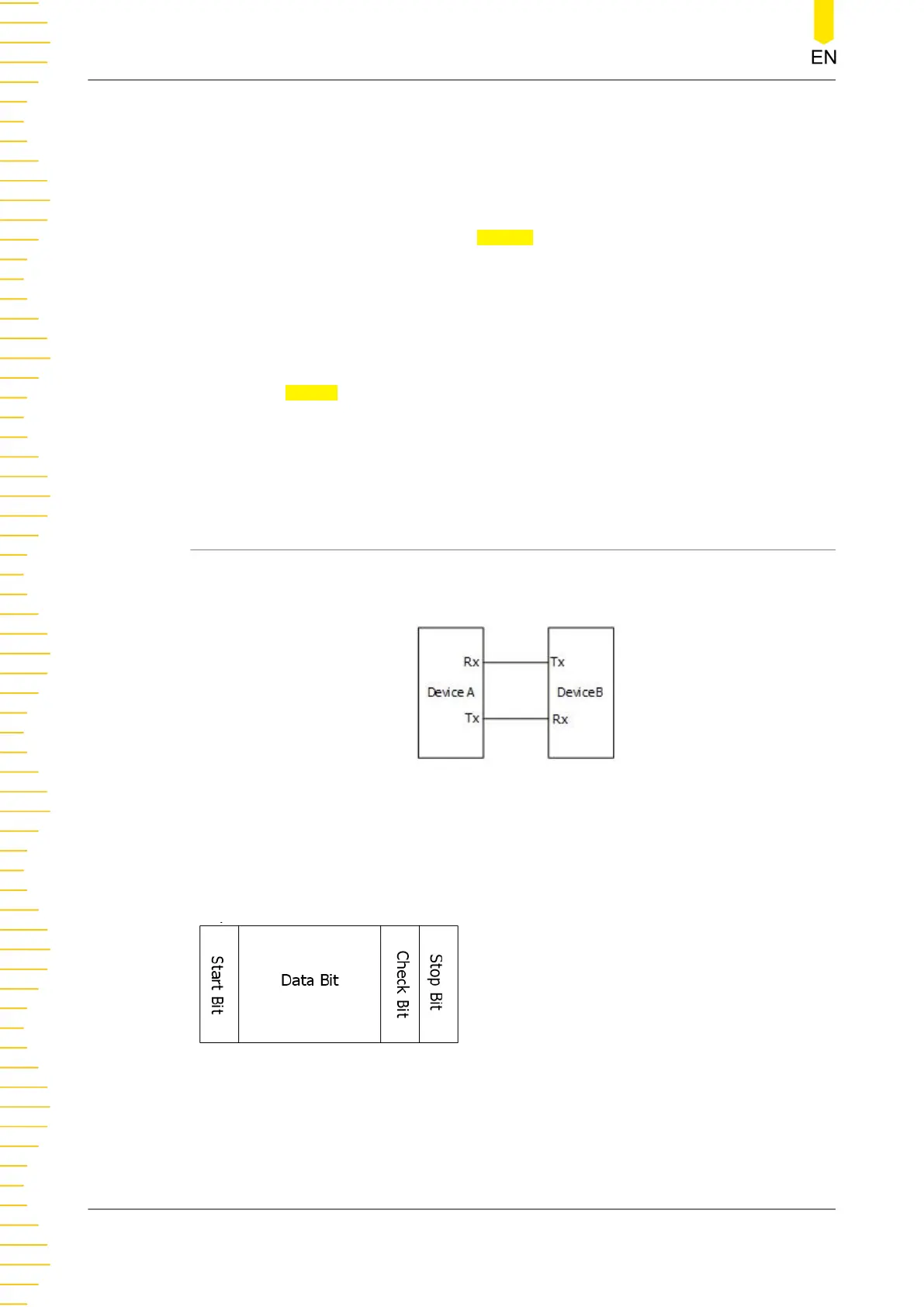

Figure 19.4 Schematic Diagram of RS232 Serial Bus
In RS232, baud rate is used to represent the transmission rate (namely bits per
second) of the data. You need to set the start bit, data bits, check bit (optional), and
stop bits for each frame of data.
• Start Bit: indicates when to output data.
• Data Bit: indicates the number of data bits actually contained in each frame of
data.
• Check Bit: used to check whether the data are properly transmitted.
Protocol Decoding
MHO2000 User Guide
224
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
