Bus Width Bit X Channel Remarks
D0-D7 8 0 (default) D7 (default)
Bit0 to Bit7 are set to D0 to
D7 respectively. Width is set
automatically, and you cannot
modify it.
D8-
D15
8 0 (default)
D15
(default)
Bit0 to Bit7 are set to D8 to
D15 respectively. Width is set
automatically, and you cannot
modify it.
D0-
D15
16 0 (default)
D15
(default)
Bit0 to Bit15 are set to D0 to
D15 respectively. Width is set
automatically, and you cannot
modify it.
User
1 to 4, 1 for
default
0 (default)
CH1-CH4,
D0-D15
When the bus is set to "User",
you can set the bus width.

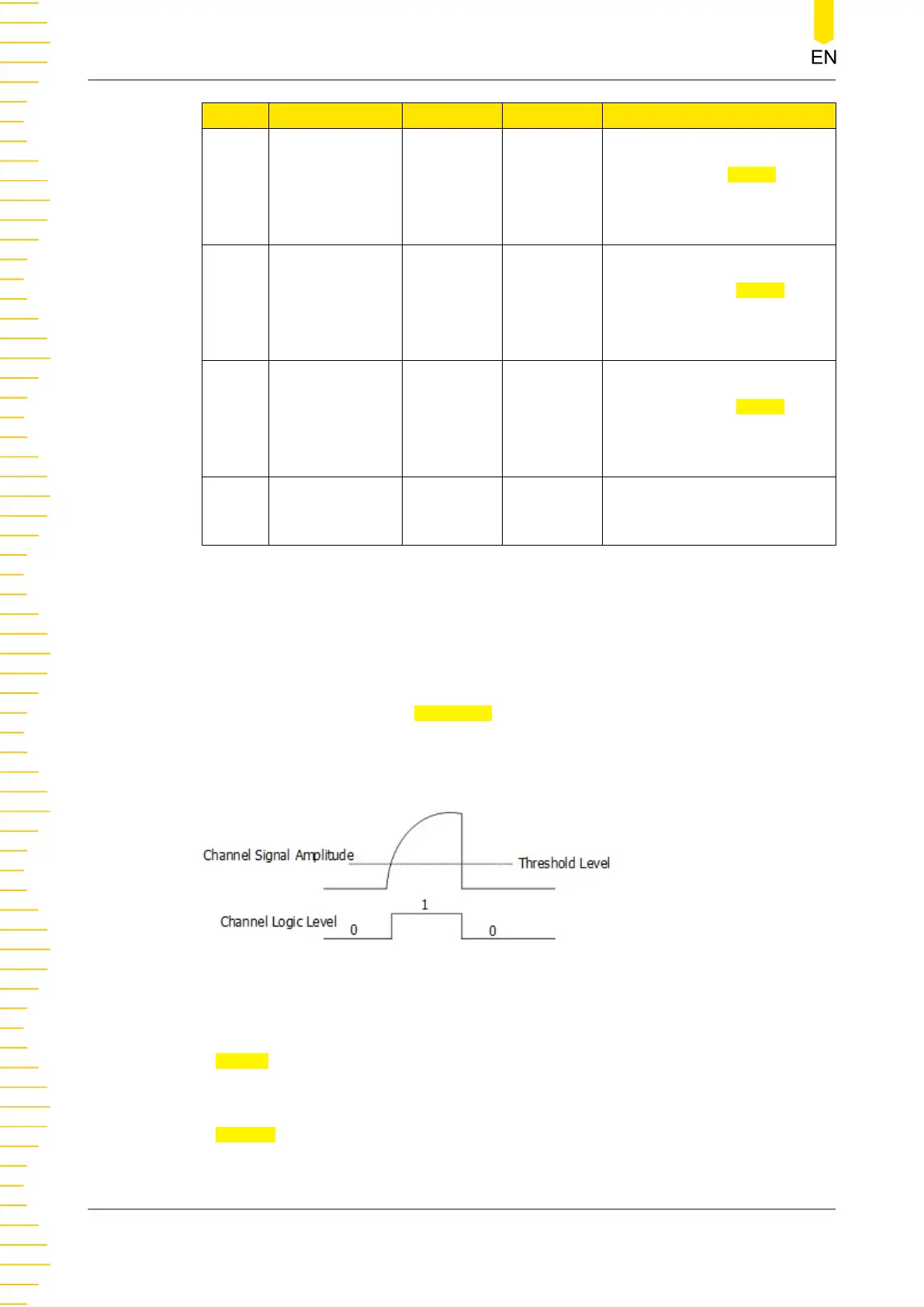

Set the Threshold Level
When the analog channel is set as the bus source, to judge logic "1" and logic "0" of
the buses, you need to set a threshold for each analog channel. When the channel
signal amplitude is greater than the preset threshold, it is judged as logic "1";
otherwise logic "0".
Click or tap the input field of
Threshold to set the threshold of with the pop-up
numeric keypad. You can also use the specified knob to set it. The range of the
threshold is related to the current vertical scale and offset.
Endian
In Endian, select "Invert" or "Normal" as the endian of the bus.
Polarity
In Polarity, select "Positive" or "Negative" as the data polarity.
Protocol Decoding
MHO2000 User Guide
222
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
